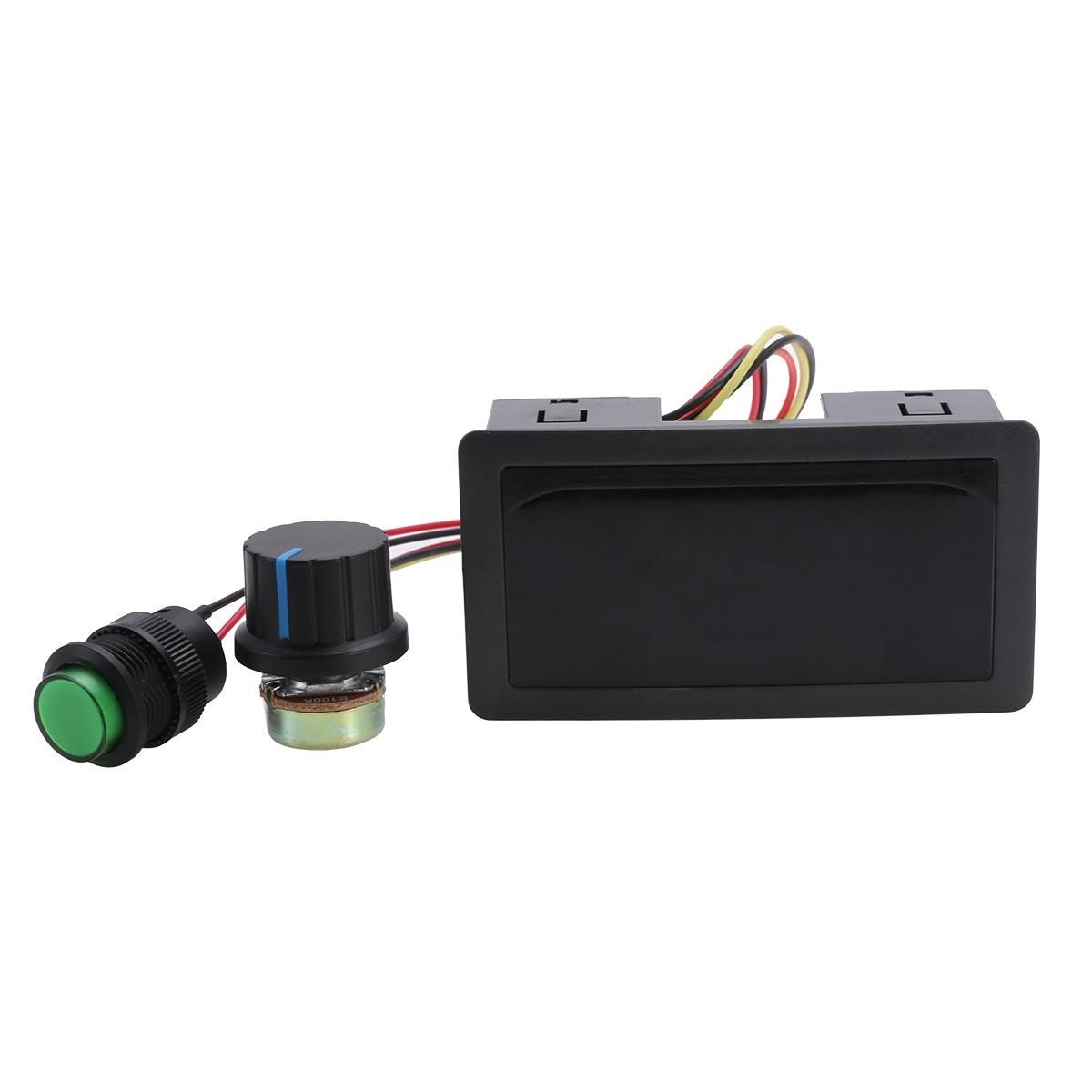

CCM5D DC Motor Speed Controller 6V-30V DC 240W MAX 8A Digital Display Switch

CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).It has operating voltage of 6V-30VDC and current capacity of 8A. It also comes with switch to ON-OFF the system.

Features:

• The display range of 3-digit LED display is “000”-“100”.
• Adjustable speed range is 0%-100%
• Fine workmanship and good performance.
• Easy to use.
• Long service life.
• Suitable for the DC motor (or DC load) within 5A, Peak current 8A.
• Incorporate a push key. Push closed, and then push open

Specifications:

Input Supply Voltage (V)	6V-30VDC
Max. Continuous Current (A)	Rated current 5A (8A MAX, cannot be prolonged)
Maximum Output Power	240W
LED display the duty ratio	0-100%
PWM Frequency (KHz)	16
Duty Cycle adjustable	0%-100%
Dimensions (LxWxH)	78*42*25mm

Package Includes:

• 1 x CCM5D DC Motor Speed Controller 6V-30VDC 240W MAX 8A

Note:

• Before you attempting to wire the controller, make sure power is off.
• Do not reverse positive and negative power will damage the controller.
• To change motor direction, interchange the positive and negative wires of motor.
• Push the key, the controller closed, push it again, the controller open.
• Please allow 1-5mm errors due to manual measurement.
• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
