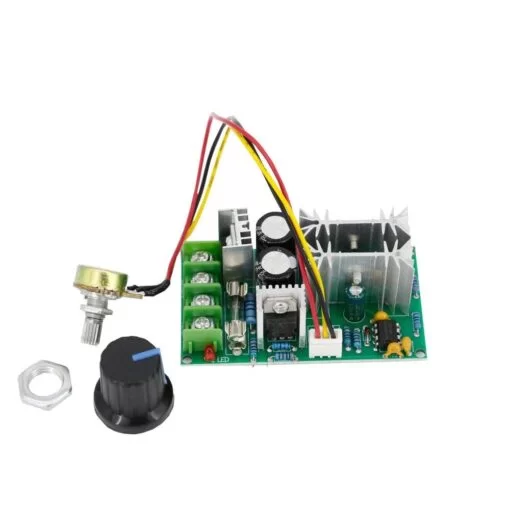

DC 10-60V 20A 1200W Motor Speed Control PWM Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 0-20A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment. It uses a linear potentiometer as a speed regulation method. The 1200W speed regulator uses a barrier terminal block as it’s wiring type.The output voltage is linear under load and features a control frequency of 25KHz.
Specifications:
Input Supply Voltage (V) |
DC 10-60V |
Output voltage |
linear under load |
Output Current (A) |
0-20A |
Continuous Power |
1200W |
Speed regulation type |
flow regulation |
Speed regulation method |
potentiometer (linear) |
Speed adjustment range |
0-100% |
Control frequency |
25KHZ |
Wiring type |
Barrier terminal block |
Knob specifications |
097 |
Dimensions (LxWxH) |
77*45*28mm |
Weight (grams) |
74 grams |
Package Includes:
- 1 x DC 10-60V 20A 1200W Motor Speed Control PWM Controller
