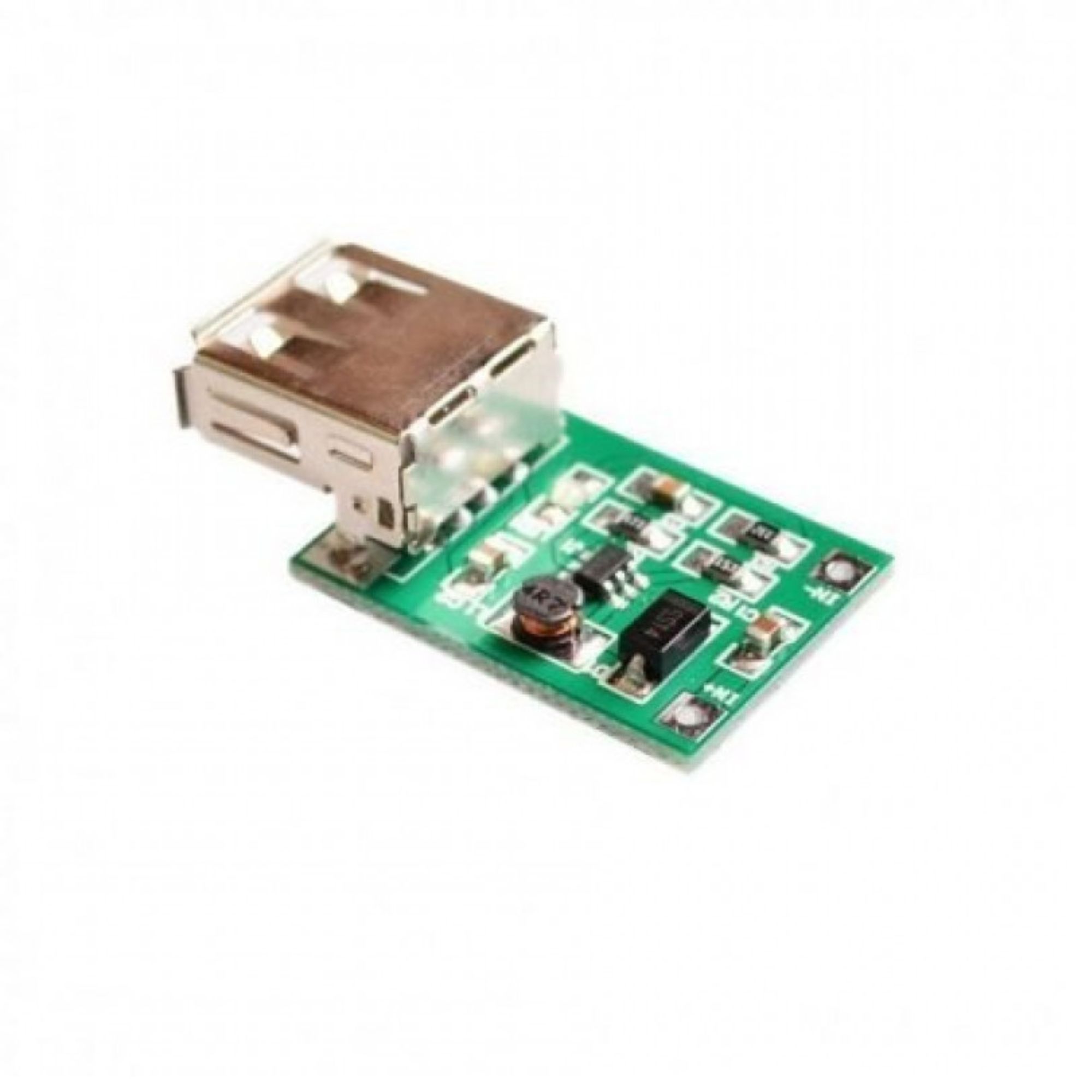

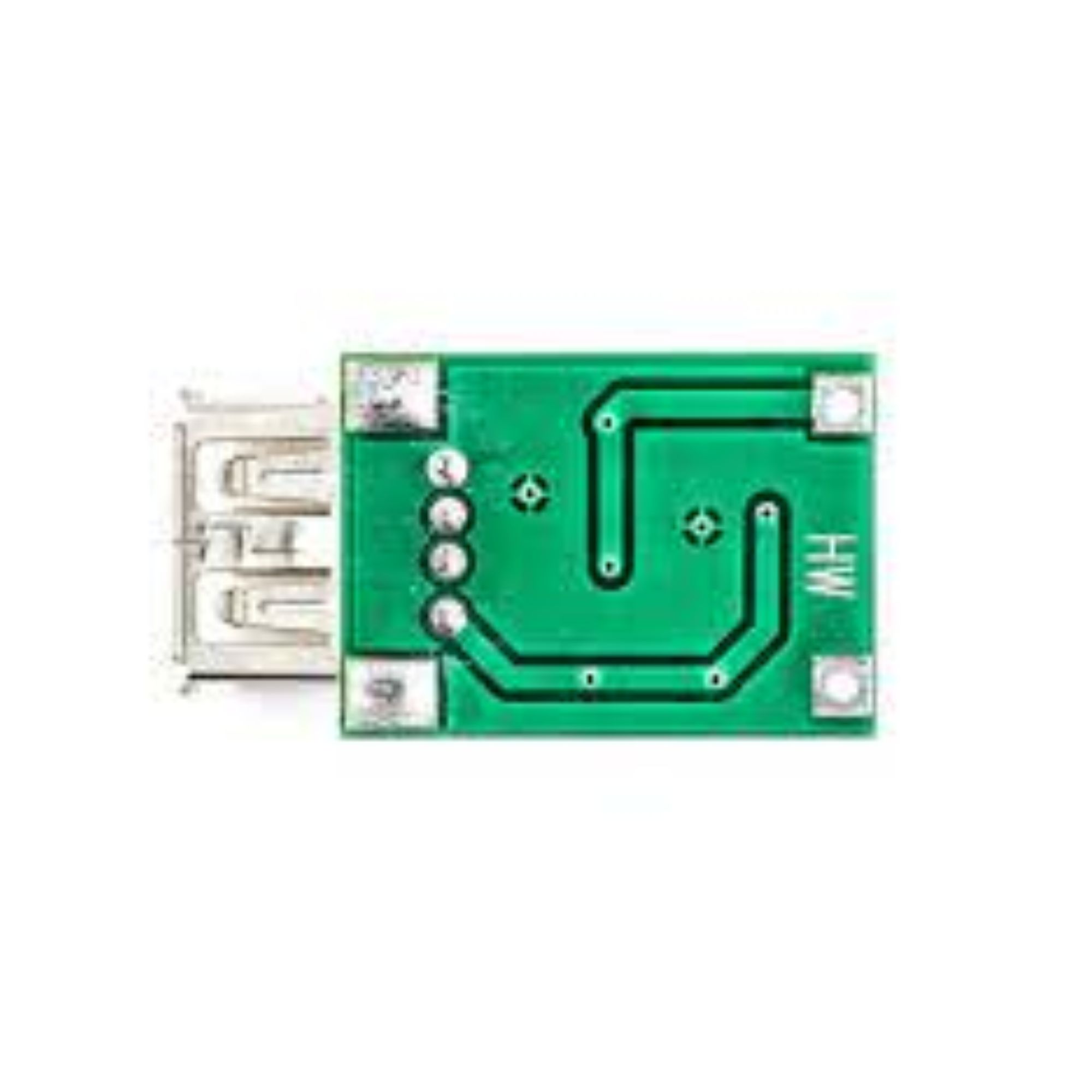

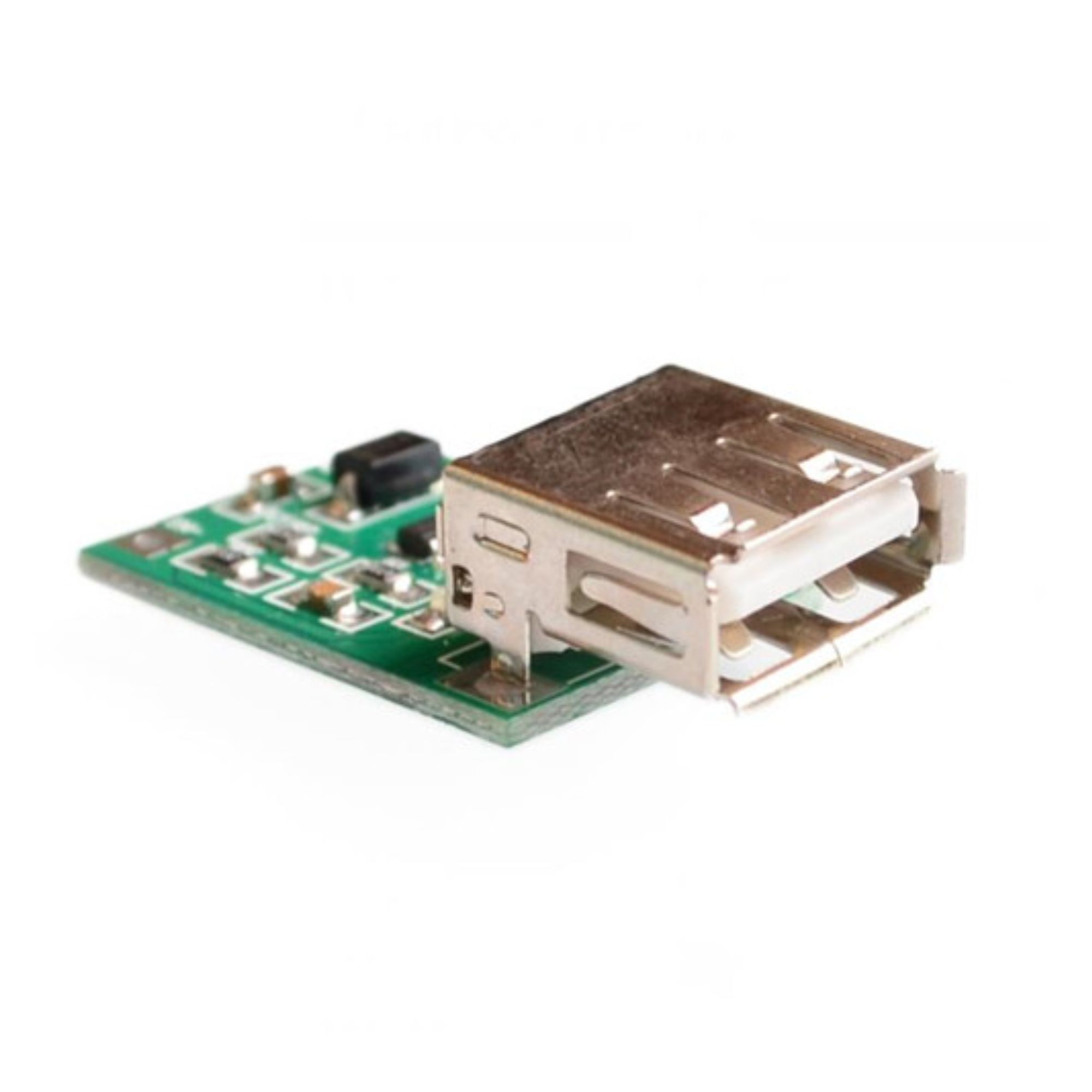

Mini DC-DC Boost Converter 0.9V-5V to 5V 600MA USB Output charger Step-Up Power Module

Mini DC-DC Boost Converter 0.9V-5V to 5V 600MA USB Output charger Step-Up Power Module is a great Step-up Module with 0.9-5V input, output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions. (i.e. GoPro cameras)

You can supply it with single cell LiPO or an AA size batter or others. Two AA batteries it can output current of 500 ~ 600MA, a single AA battery power supply can output 200ma current supply, great for mobile phones camera, single-chip, digital products supply.

Features:

• The module adopts high-performance imported chip, performance is superior to the common module.
• Work with indicator light
• Take the USB female, wide range of Uses
• With a single AA battery power supply can output current up to 200~300 ma
• Two AA batteries to the output current of 500~600 mA.
• Work from battery voltage as low as 0.9V, allowing you to maximize battery use

Specifications:

• Module Type: Step-Up (Boost)
• Input voltage: 0.9-5V DC
• Output voltage: 5V DC Boost converter/ 5v boost regulator
• Output Current: 500-600mA
• Load regulation: ± 1%
• Voltage regulation: ± 0.5%
• Short circuit protection: No
• Input Reverse Polarity Protection: No
• Connection: Soldering
• Input Terminals: Input: IN + input is level, IN-type negative
• Output Mode: Standard USB
• Conversion Efficiency: Up to 96%
• Switching frequency: 500KHz
• Temperature Range: -40℃ to +85℃
• Dimension: 18 (mm) x 25 (mm)
• Weight (gram): 5 g

Applications:

• USB voltage regulator for USB powered device. If your USB device is critical on 5V operation you can use this module.
• This module will bring USB voltage required for your application at regulated 5V output.
• Various USB devices which need 5V from low voltage batteries.
• Charge mobile phone/MP4/MP3 from AA battery when travelling

Package Includes:

• 1  x Mini DC-DC Boost Converter 0.9V-5V to 5V 600MA USB Output charger Step-Up Power Module
