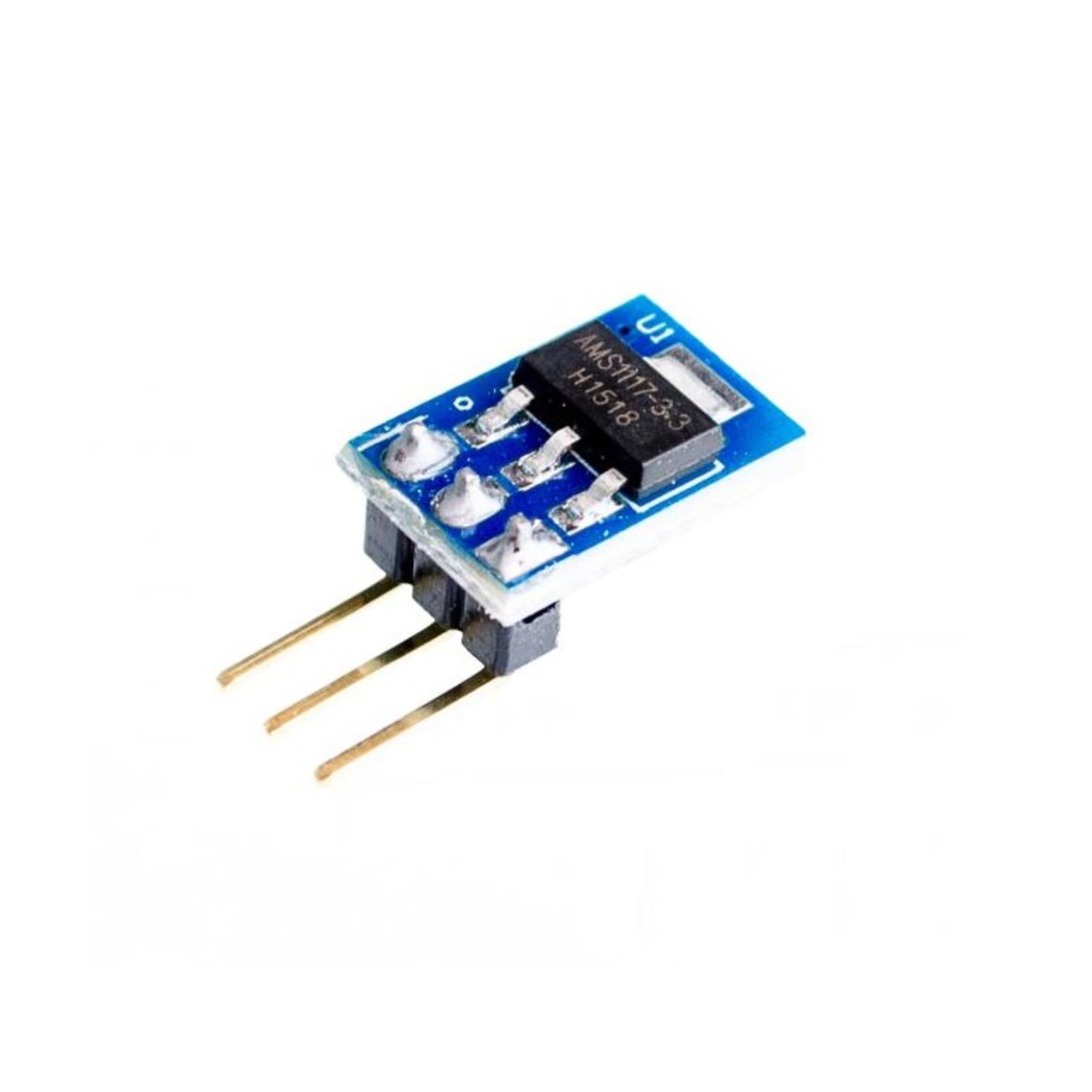

AMS1117-3.3 LDO 800MA DC 5V to 3.3V Step-Down Power Supply Module

The AMS1117-3.3 LDO 800MA DC 5V to 3.3V Step-Down Power Supply Module is capable of supplying very stable 3.3V-5V DC when supplied with 4.5V-15V DC. This module is basically the Breakout Board for AMS1117 IC Chip.

The module is capable of altering the output of the power source/supply before supplying it to the load so as to deliver the specified power to your load. The module is very useful for the products which demand 3.3V at 800mA of current. It equips 3 pins where you can plug-in input and output, This offers ease of connection.

Perfect for providing support power for your electronic design, every DIY hobbyist should have a couple of these flexible power supplies on their electronics workbench.

Features :

• Onboard AMS1117 chip
• Onboard power indicator to indicate power is turned on: Red LED
• Output: 3.3V, 800mA (load current can not exceed 800ma)
• Output voltage interface, connection to facilitate the experimental
• Small Compact Size, 3Pin Type, Breadboard Friendly

Specifications:

• Input Voltage (V): 4.5 to 15
• Output Voltage(V): 3.3 to 5
• Output Current(A): 0.8
• Length (mm): 13
• Width (mm): 9
• Height (mm): 7
• Weight (gm): 14

Package Includes :

• 1 x AMS1117 3.3V Power Supply Module
