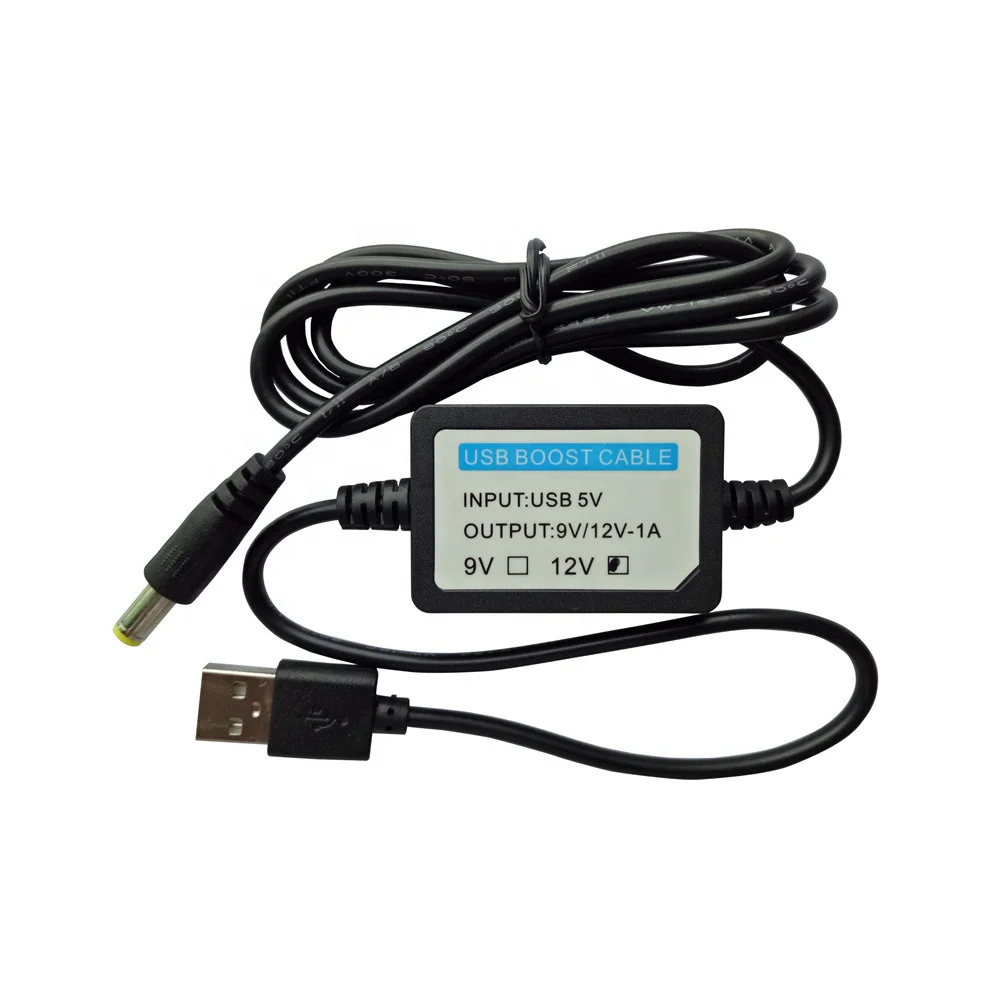

USB Power DC 5V 1A to DC 12V Step Up Module USB Booster Converter Adapter Cable 2.1×5.5mm Plug

USB Power DC 5V 1A to DC 12V Step Up Module USB Booster Converter Adapter Cable 2.1×5.5mm Plug build with copper Core- (5.5mm x 2.1mm)-1 Meter DC tip size is 5.5*2.1mm, the outer diameter is 5.5mm, and the inner diameter is 2.1mm. It is use to convert 5V DC to 12V DC voltage.

Features:

• Great for short distance connection
• Simply & Professional appearance for cabling
• Easier for installation save time and money
• Easy to use.

Specifications:

• Voltage : Input through (USB) DC 5V
• Output via (DC Round Pin) : DC 12V
• Cable Length: 1 meter / 2 meter
• Color: BLACK
• Input / Output Current: Maximum input 1A
• Maximum output 750mA (500mA or less application is recommended)
• DC Pin Polarity: Outer pin Negative and Inner Positive terminal – please make sure the device use the same polarity
• Power Rating: Input would be 5V x 1A = 5W and Output would be 12V x 800mA = 10W (less than 750mA)

Application:

• With this cable, you can connect your power bank to router. Thus, when power cut, you can use your power bank to supply your router!
• Use this cable, you can supply your car Air Purifier by power bank
• USB cable USB to DC5.5 * 2.1mm charging cable power supply cable hole 5V/9V/12V boost lines USB cable
• By charging treasure to power other devices. Such as: routers, USB lights, USB fan, radiator, 5V mini speakers, and so on
• DC power plug size: diameter: 5.5mm, inner diameter: 2.1mm; positive with 1 meter cable length
• 12V-through: with boosting components, the input voltage of 5V via USB components, boosted to 12V Voltage 0.8 ~ 1A
• For 12V Wi-Fi Route, Light Cat, switches and other equipment.
• DC Pin Polarity: Outer pin Negative and Inner Positive terminal – please make sure the device use the same polarity

Package includes:

• 1 x USB Power Boost Line DC 5V 1A to DC 12V Step Up Module

Note :

• Kindly note that this module has input rating of 5V,1A and output rating of 12V , 750mA. Devices with higher rating will not work with this module.
