9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V

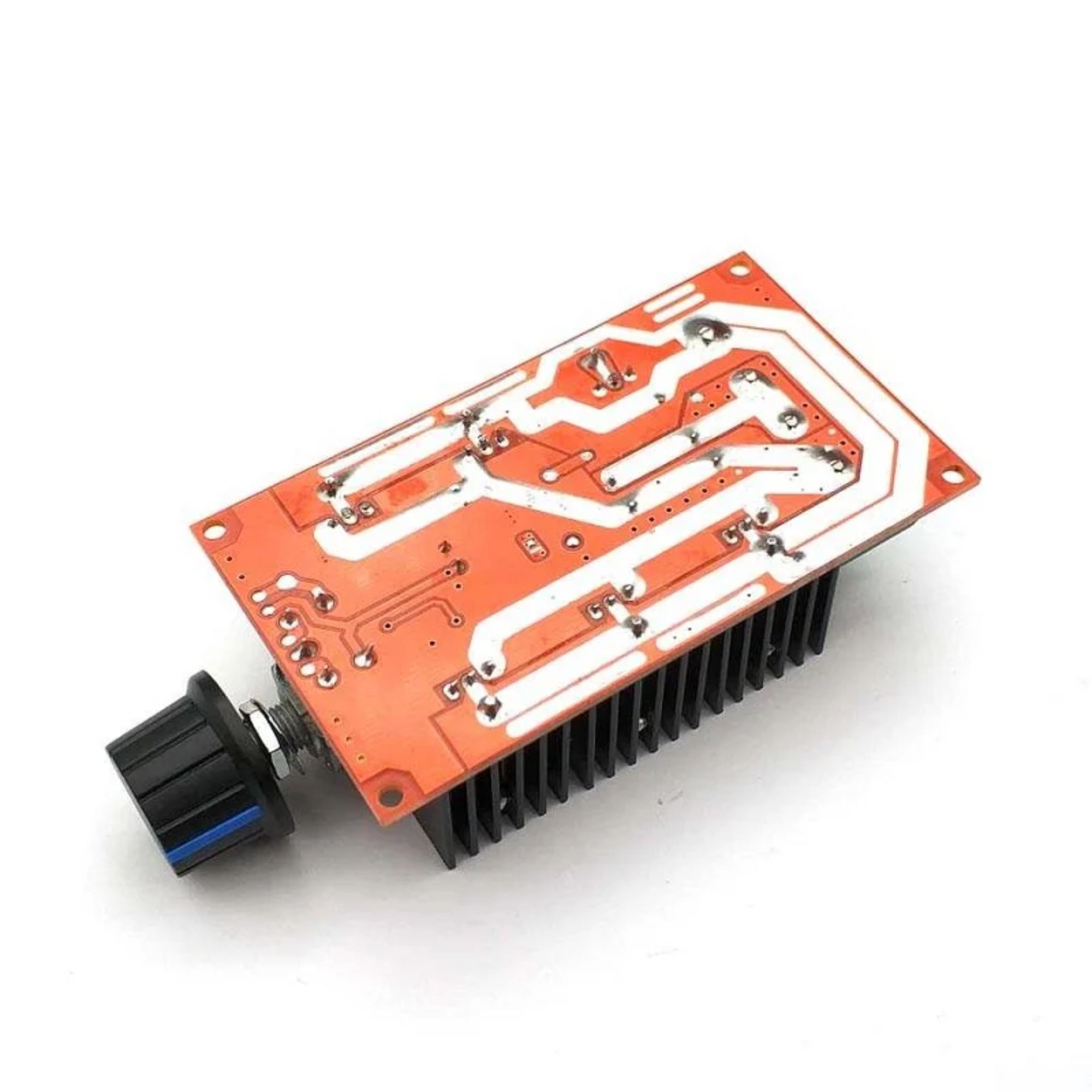

This 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V is used to control the speed of DC motors from 9V to 50V with a maximum power of 2000W this controller can provide up to 40A of current depending on the power supply. The board comes with a protective housing made from ABS plastic. The controller has 6 high-quality NCE7190A MOSFET’s which are connected to the individual heatsinks.

40A 2000W DC Controller is a PWM speed controller which enables you to control the speed of those DC brush motors smoothly. It’s great for applications like car motors, DC heater, bulb etc. providing nice adjustment of motor speed. Its best speed controller for higher current rating and wide voltage range with best reliability.

Voltage range can be utilize in engineering system and e-bike motors to speed control.

Features:

• Wide voltage range, 10-50V, 40A, max. 2000W for motor speed control & HOO.
• Apply PWM Modulation system to adjust motor speed from 5-100% .
• Stable in working, high efficiency and low noise.
• Field-effect tube, drive IC, 70μm copper sheet PCB for higher efficiency of PWM wave output.
• Potentiometer for speed adjustment, protective case creates better durability.

PWM Working Principle:

By changing the duty ratio of square wave(output) to adjust average current power from 0-100% on load, thus to change the motor speed or light brightness.

Specifications:

• Speed Controller Model: 40A PWM DC Motor Speed Regulator
• Operating Voltage(VDC): 10V to 50V.
• Peak Current (A): 40
• Control Power: 0.01-2000W
• Working Voltage 12V: 12V*40A=480W (max)
• Working Voltage 24V: 24V*40A=960W (max)
• Working Voltage 36V: 36V*40A=1440W (max)
• Working Voltage 50V: 50V*40A=2000W (max)
• Quiescent Current: 0.025A
• PWM Regulation range: 5-100%
• PWM Frequency: 12khz
• Operating Temperature: -20 ~40 DegC
• Module Size: 90 x 51mm
• Case size: 95 x 53 x 35 mm
• Weight: 95 gm


Main Applications:

• Universal DC brush motor speed control.
• Control motor speed of cars (e.g. car cooling fan motor, car fan motor, car windshield wiper motor, air condition fan motor)
• Adjust speed of the conveyor of product lines, tube exhaust fan, treadmill, electric fan.
• Adjust temperature of DC heater, brightness of common DC bulb.

Package includes:

• 1 x 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V
