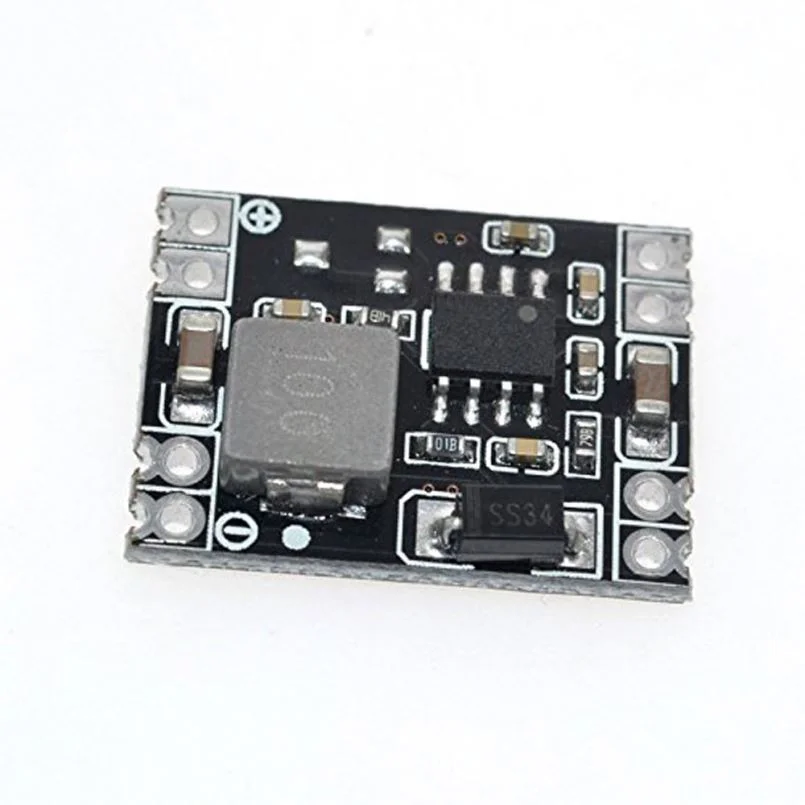

DC-DC 11V-26V 24V to 9V 3A Step-down Power Supply Module

This DC-DC 11V-26V 24V to 9V 3A Step-down Power Supply Module supports 11-26V voltage input and 9V output with input polarity reverse protection and output overvoltage protection, short circuit protection.

It adopts synchronous rectification technology to ensure ultra-high power conversion of up to 97.5% to take full use of your input power.

Features:

• Improve conversion efficiency
• Small size, Compact Size
• Input with reverse polarity protection diode, will not damage when input connect incorrectly

Specifications:

• Input Voltage: 11-26V
• Input Mode: Soldering
• Output Voltage: 9V
• Maximum Output Current: 3A
• Maximum Conversion Efficiency: 0.975
• Full load temperature: 30°C
• Switching Frequency: 500KHz
• Voltage Regulation: ±0.5%
• Dynamic Response Speed: 5% 200uS
• Module size: 22.3*17*4.4mm

Package Includes:

• 1 x DC-DC 11V-26V 24V to 9V 3A Step-down Power Supply Module
