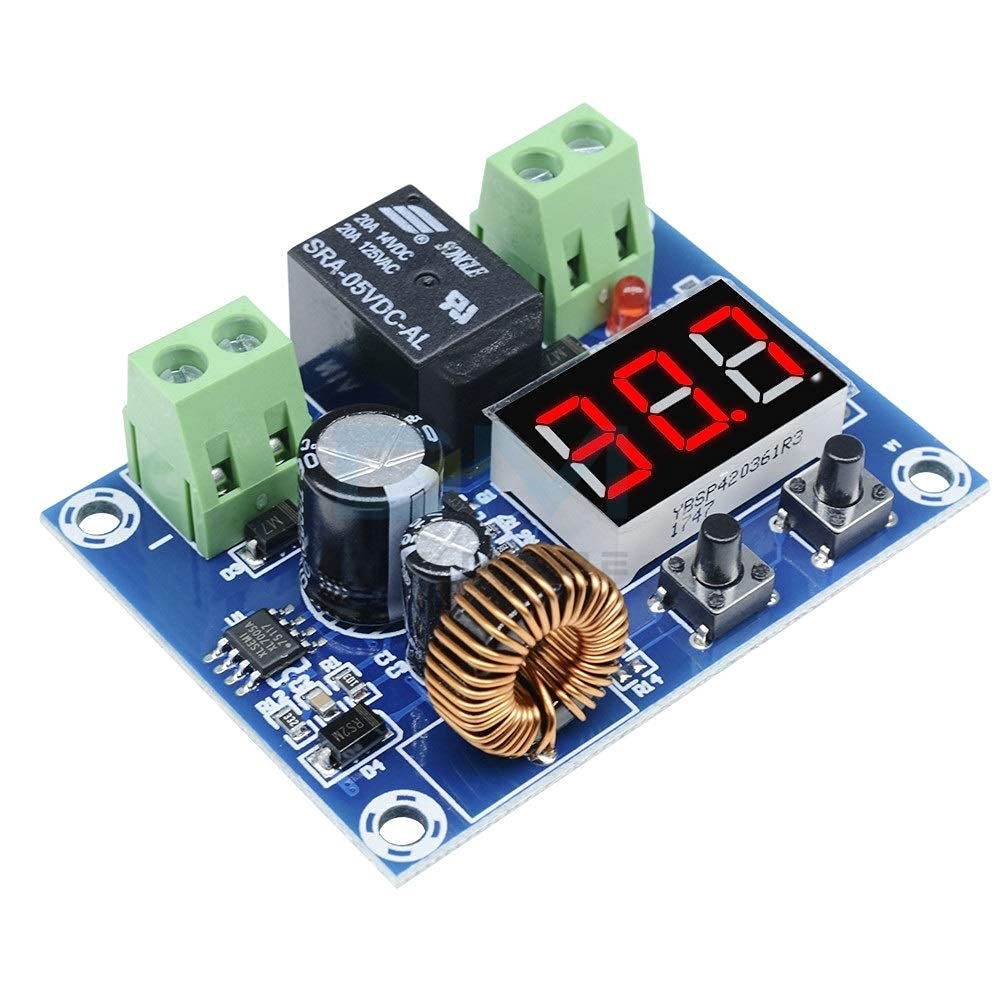

XH-M609 DC 12V–36V Lithium Battery Charger and Over-Discharge Protection Module with Digital Display

The XH-M609 DC 12V–36V Lithium Battery Charger Module is an intelligent lithium battery charging and protection solution designed to prevent over-charging and over-discharging of battery packs. Featuring an onboard digital voltage display, this module automatically cuts off the load when the battery voltage drops below the set value and reconnects when voltage is restored.

Ideal for DIY battery chargers, solar battery systems, UPS backups, robotics, and EV projects, the XH-M609 supports a wide DC input range of 12V to 36V, making it highly versatile for multiple lithium battery configurations. The module is easy to configure using onboard buttons and offers reliable protection to extend battery life.

Features:

• Wide operating voltage range: DC 12V to 36V
• Built-in over-discharge protection for lithium batteries
• Digital LED voltage display for real-time monitoring
• Adjustable cut-off and recovery voltage
• Automatic relay switching (disconnects load at low voltage)
• Simple button-based programming
• Compact PCB design, easy to integrate
• Improves battery safety and lifespan

Specifications:

• Model: XH-M609
• Operating Voltage: DC 12V – 36V
• Supported Battery Type: Lithium batteries (Li-ion / LiFePO₄ – voltage dependent)
• Display Type: Digital LED voltmeter
• Control Type: Relay-based automatic cut-off

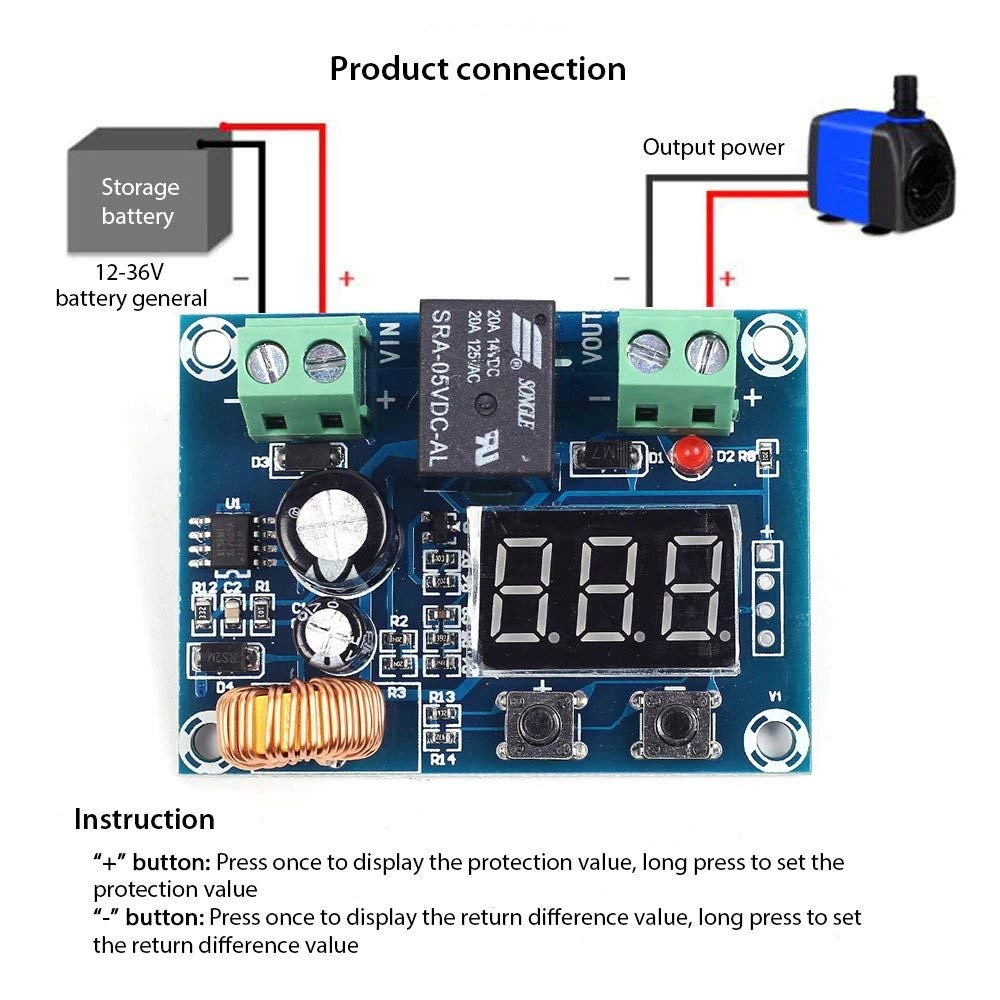

• Voltage Adjustment: Via onboard push buttons
• Protection Function: Over-discharge protection
• PCB Material: FR-4
• Mounting Type: Through-hole PCB
• Operating Temperature: -10°C to +60°C

Applications:

• DIY lithium battery chargers
• Solar battery management systems
• UPS & inverter battery protection
• Electric vehicle battery projects
• Robotics & automation power systems
• Power backup & energy storage projects

Package Includes:

• 1 × XH-M609 DC 12V–36V Lithium Battery Charger & Protection Module
