TP5100 4.2v and 8.4v 2A Dual One/Two Lithium Ion 18650 Battery Protection Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.
TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.

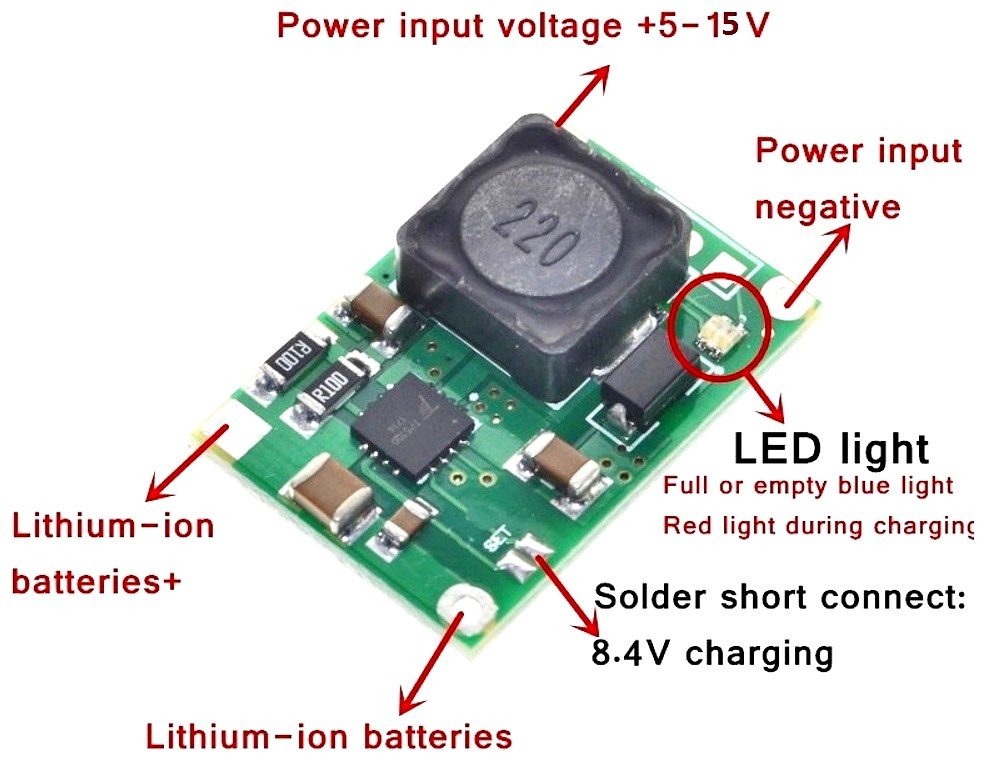

Features:
- Double 8.4v / 4.2v lithium rechargeable single
- Programmable charge current. 0. 1A-2A
- Programmable steady precharge current 10% -100%
- Wide operating voltage, maximum reach I8V
- Red and green LED charge status indicator
- Chip temperature protection, overcurrent protection, undervoltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
Specifications:
|
Model |
TP5100 |
|
Input Supply voltage (V) |
5 ~ 18 |
|
Programmable charge current |
0.1 ~ 2 A. |
|
Charge status |
full and unloaded blue lights, charging red. |
|

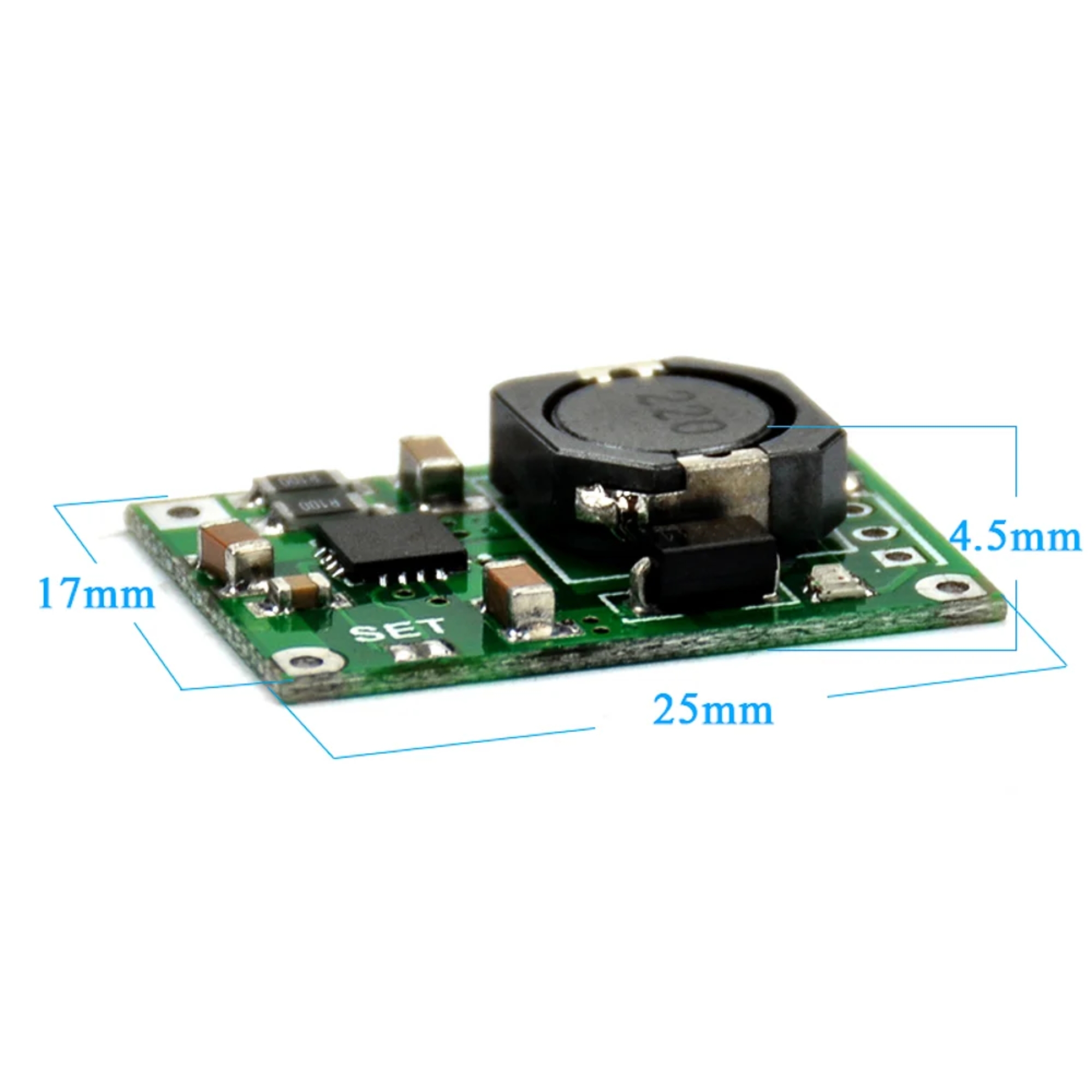

Length (mm) |
26 |
|
Width (mm) |
17 |
|
Height (mm) |
25 |
|
Weight (gm) |
5 |
Application:
- Portable equipment, various chargers
- Smartphone, PDA, mobile cellular telephone
- MP4, MP5 players, tablets
- HM
- Power Tools
- Walkie-talkie
Package Includes:
- 1 x TP5100 4.2v 8.4v Single Double Lithium Battery Charging Board.
