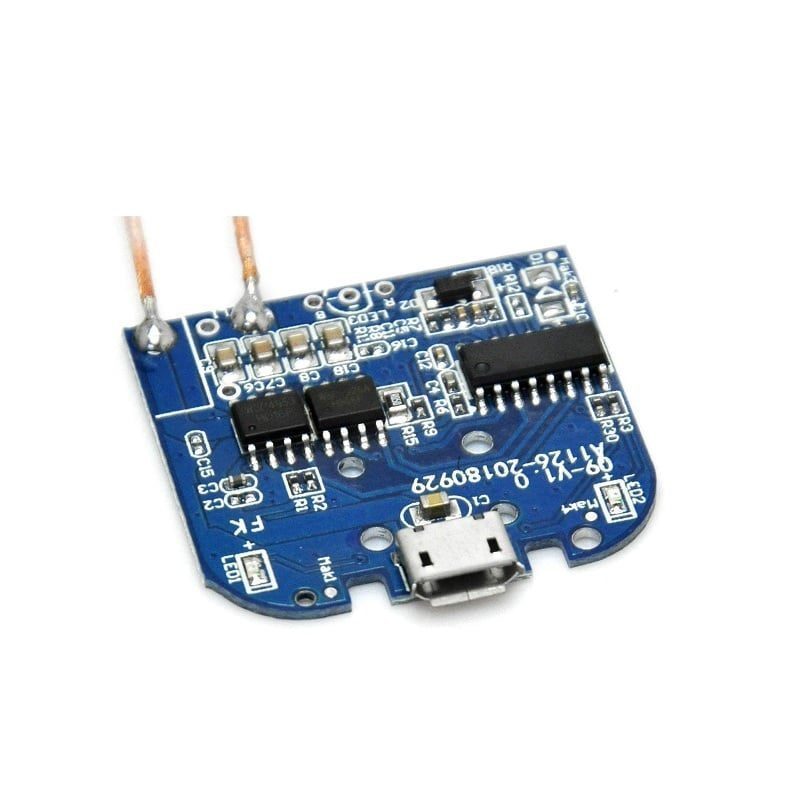

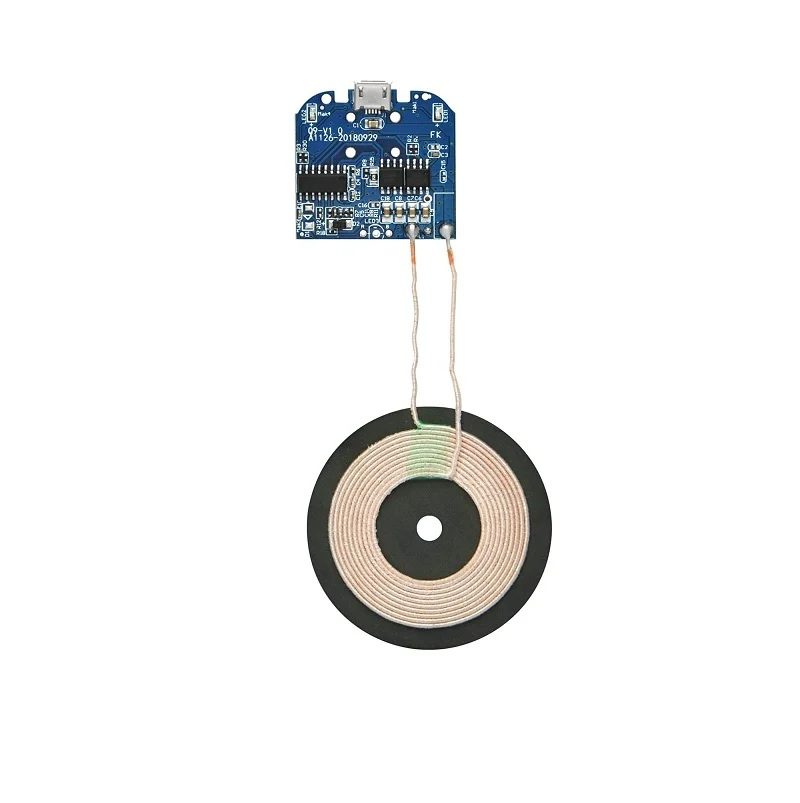

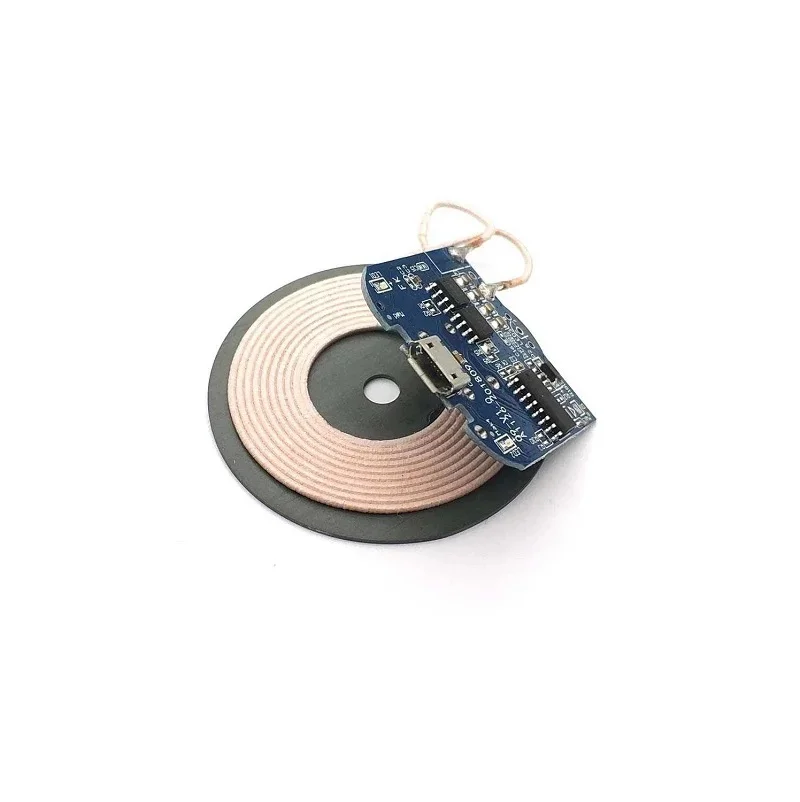

DC 5V Qi Standard Micro USB Input PCBA Circuit Board With Coil for Wireless Phone Charging (Transmitter)

This is a DC 5V Qi Standard Micro USB Input PCBA Circuit Board With Coil for Wireless Phone Charging (Transmitter). Create your own Wireless Charger for your Wireless Charging Gadgets like Samsung Apple Flagship phone, or many other smartphones that support wireless charging. Moreover, you can charge up many of your wearables like Smartwatch and iPods.

This portable digital wireless charging module works on 5V DC supply voltage with Micro USB port for input Supply. You can provide supply to the module from your smartphone charger or from your PC USB port.

You can Make a Personalized products house for this PCBA by Embedding in your household appliances, furniture, etc.

Circuit comes with LED Indicator Light. to show the status. like the GREEN LED glow showing circuit is powered up. While it has BLUE LED for showing the status of detection of the phone and charging Status.

Features:

• Compaq Size
• Plug and Play Module
• Micro-USB B type input
• LED Status Indicator

Specifications:

• Charging power: 10W
• Charging distance: 10mm
• Conversion Rate: ≥ 75 %
• Coil Diameter (mm): 50
• PCB Color: Blue
• Length (mm): 32
• Width (mm): 32
• Weight (gm): 20

Package Includes:

• 1 x  DC 5V Qi Standard Circuit Board With Coil for Wireless Phone Charging (Transmitter)

Note: Actual Product Design may differ from image shown.
