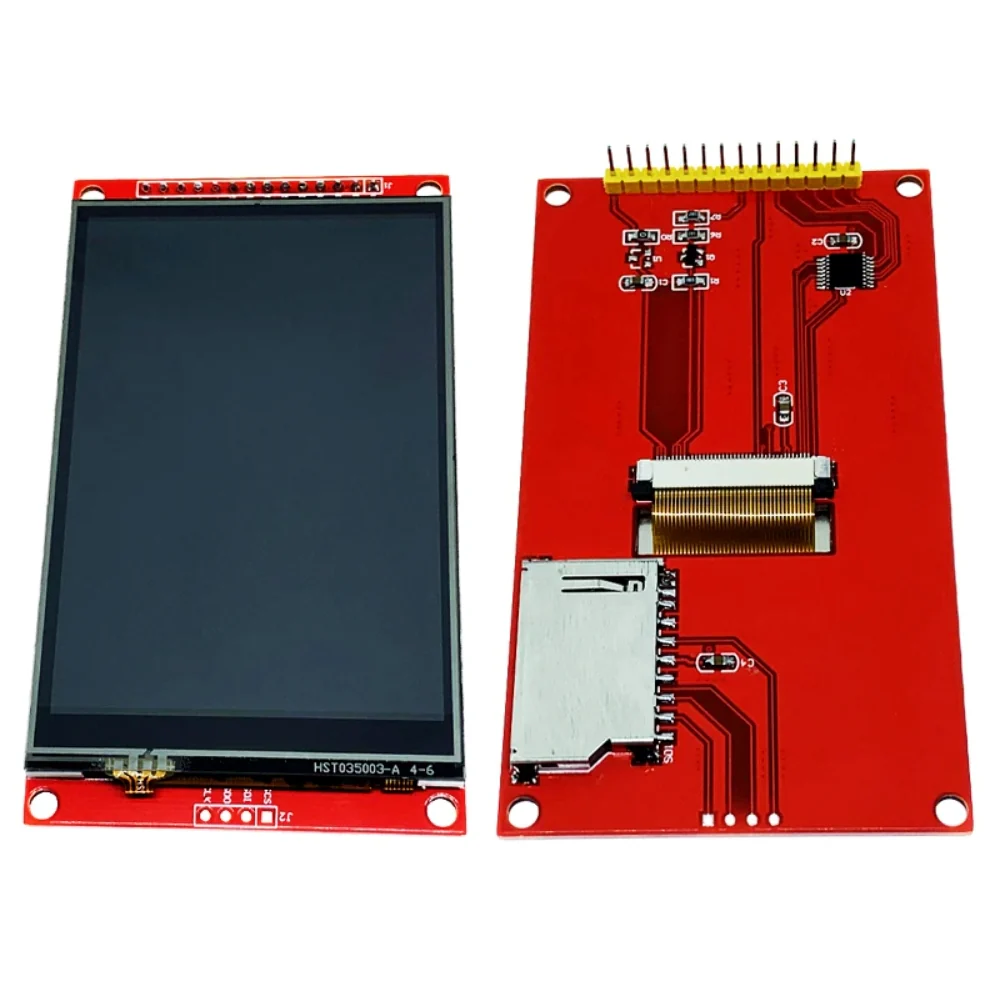

3.2 inch SPI Touch Screen Module TFT Interface 240*320 with Touch is a compact, high-quality display module that can be used in various electronic projects. It is an excellent choice for projects that require a small, high-quality display with touch capabilities. It is ideal for use in applications such as portable devices, embedded systems, and other electronic projects that require a clear and easy-to-use display.
The module is designed to communicate with a microcontroller or other host device through a Serial Peripheral Interface (SPI), which makes it easy to integrate into a variety of projects. Additionally, the module comes with a touch screen interface, which allows users to interact with the display through touch. The resistive touch panel works by detecting pressure, allowing users to interact with the display using a stylus, finger, or other pointed object.
Features:
- 3.2-inch color screen, support 65K color display, display rich colors
- 320X240 resolution, optional touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Specifications:
Display Color |
RGB 65K color |
Screen Size |
3.2(inch) |
Type |
TFT |
Driver IC |
ILI9341 |
Resolution |
320*240 (Pixel) |
Module Interface |
4-wire SPI interface |
Active Area (AA area) |
48.6×64.8(mm) |
Module PCB Size |
55.04×89.3(mm) |
Operating Temperature |
-20℃~60℃ |
Storage Temperature |
-30℃~70℃ |
VCC power voltage |
3.3V~5V |
Logic IO port voltage |
3.3V(TTL) |
Weight |
52(g) |
Package Includes:
- 1 x 3.2 inch SPI Touch Screen Module TFT Interface 240*320 with Touch
