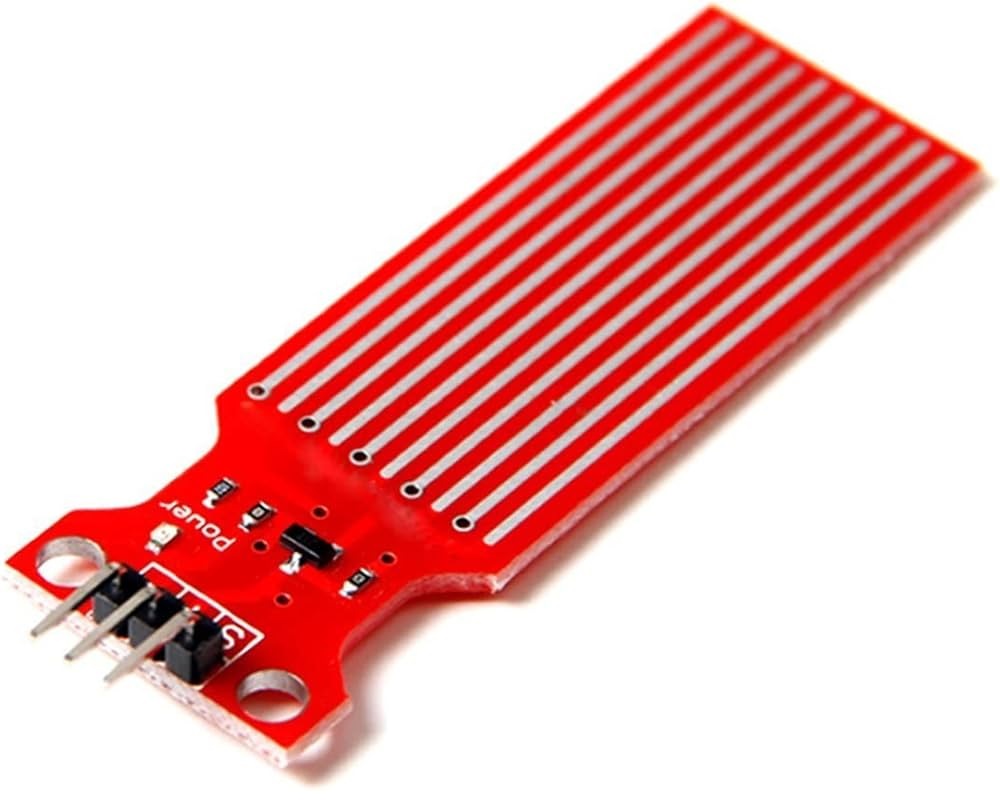

Water Level Depth Sensor Module for Arduino

Water Level Depth Sensor Module for Arduino is an easy-to-use, cost-effective high level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level. The Sensor is the Analog type which produces analog output signals according to the water pressure with its Detection Area of 40x16mm.

Easy to complete water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect.

Features :

Operating Voltage(VDC)	3 to 5
Operating Current	<20mA
Detecting Range	40×16 mm
Sensor type	Analog
Operating Temperature (°C)	-10 to +30
Humidity Range	10% -90% non-condensing
Length (mm)	65
Width (mm)	20
Height (mm)	8
Weight (gm)	4

Package includes:

• 1 x Water Level Sensor Module
