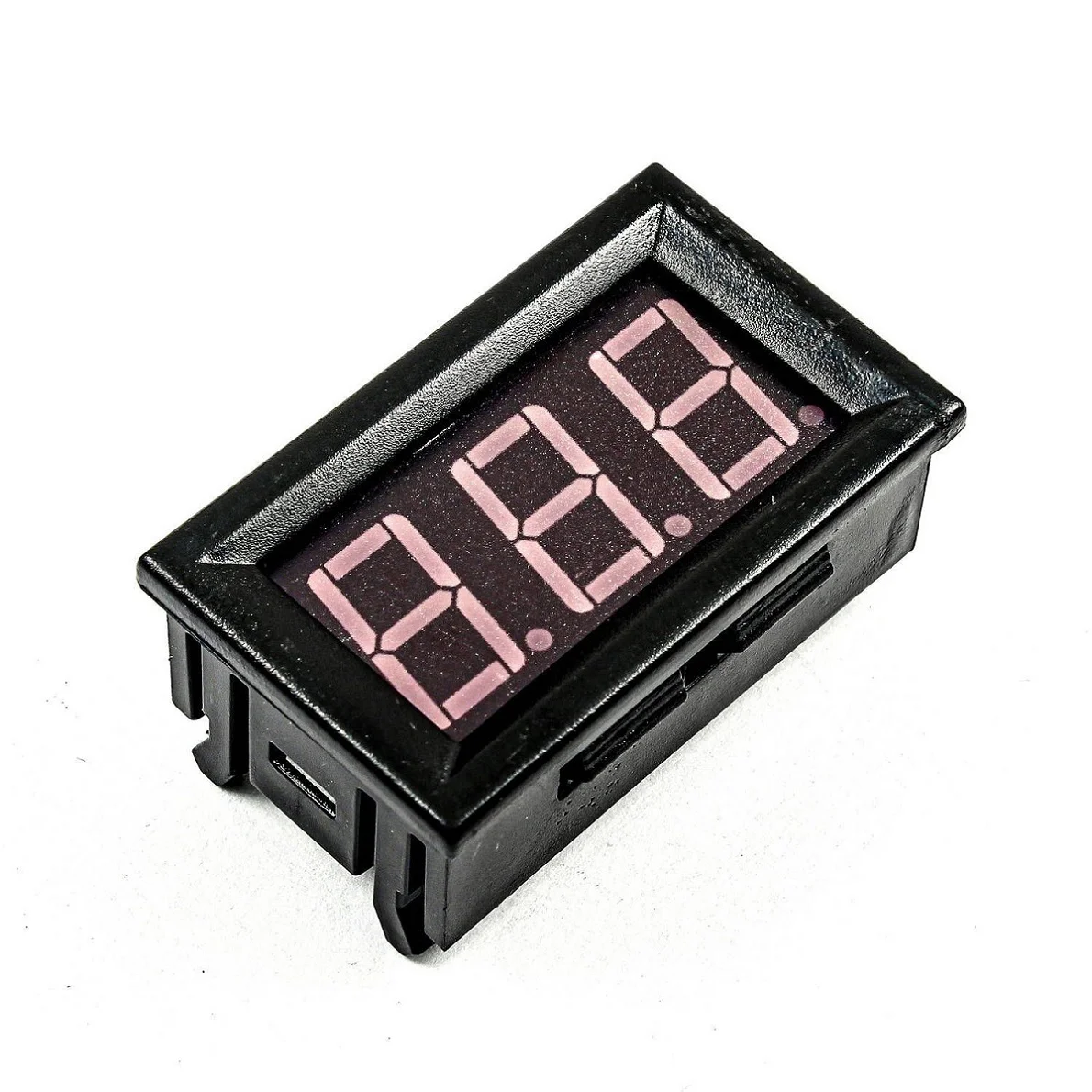

Red 0.56inch AC220V Two Wire AC Voltmeter 70V ~ 500V

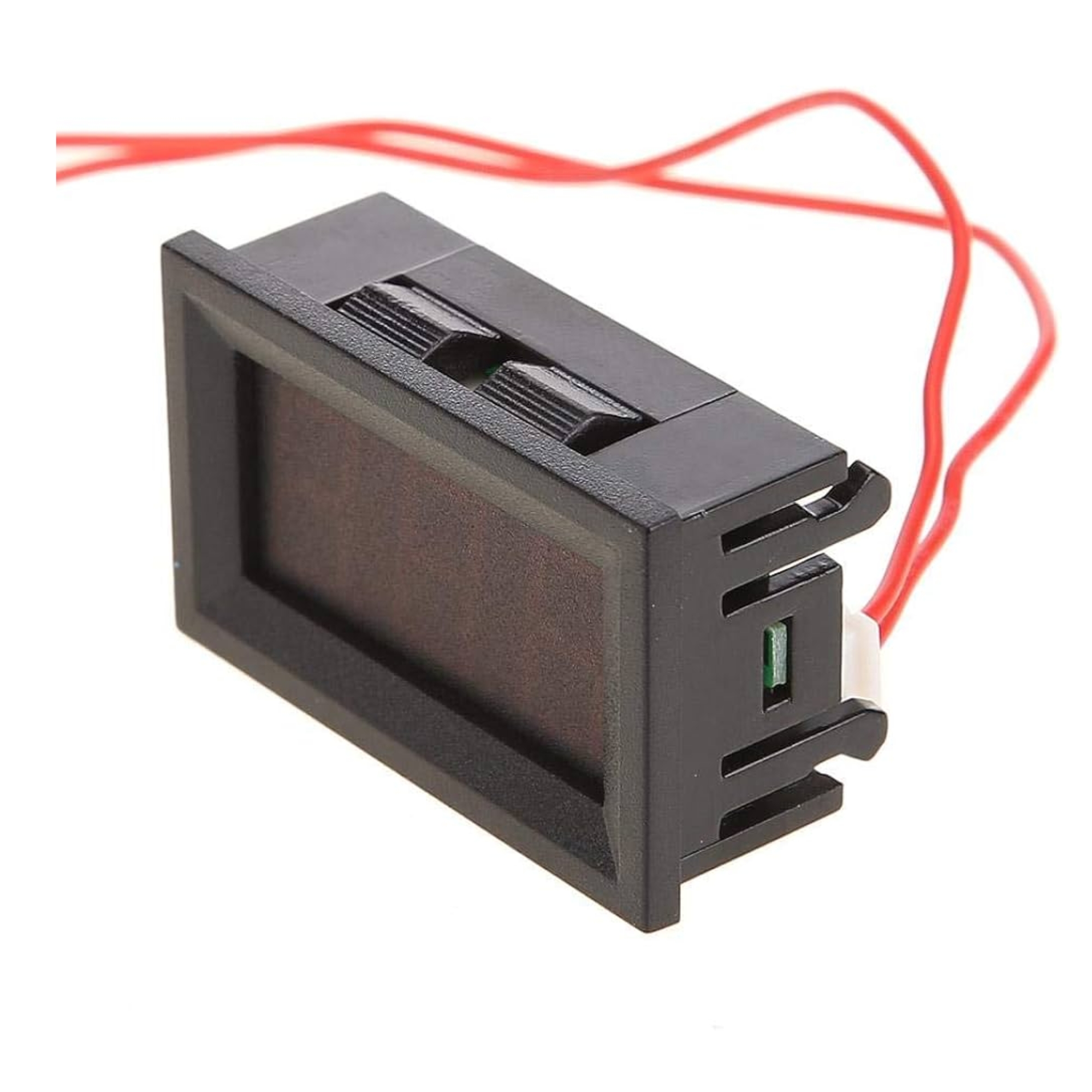

The wiring of Red 0.56inch AC220V Two Wire AC Voltmeter 70V ~ 500V is simple, only two wires need to be connected, the red wire is connected to the positive, and the black wire is connected to the negative. There is reverse connection protection in the meter, and the reverse connection does not burn.

This voltmeter does not require an external working power supply, it can work directly with the measured voltage, and the working voltage range is as wide as 70-500V.

In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the difference of the measured voltage. decimal point.

This voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc., and grasp the battery status in time. It can also be used for other voltage measurement purposes.

Features :

• Very small and lightweight voltmeter module.
• Very handy and easy to use.
• RED LED display.
• Best operates in the working voltage range of 70V to 380V
• Matt finish Display glass makes display Digits more Lucid in the daytime.

Specifications:

Product Type	AC Voltmeter
Operating Voltage (VDC)	70-380 VDC
Average Current Consumption (mA)	Less than 20mA, generally 5-15mA
Full Refresh Time (s)	Approx 300mS/time.
Display color	Red
Accuracy	0.1 V
Working Voltage	70-500V
Product Color	black
Weight (g)	20g

Note:

• Consider 1V voltage drop at voltmeter itself.

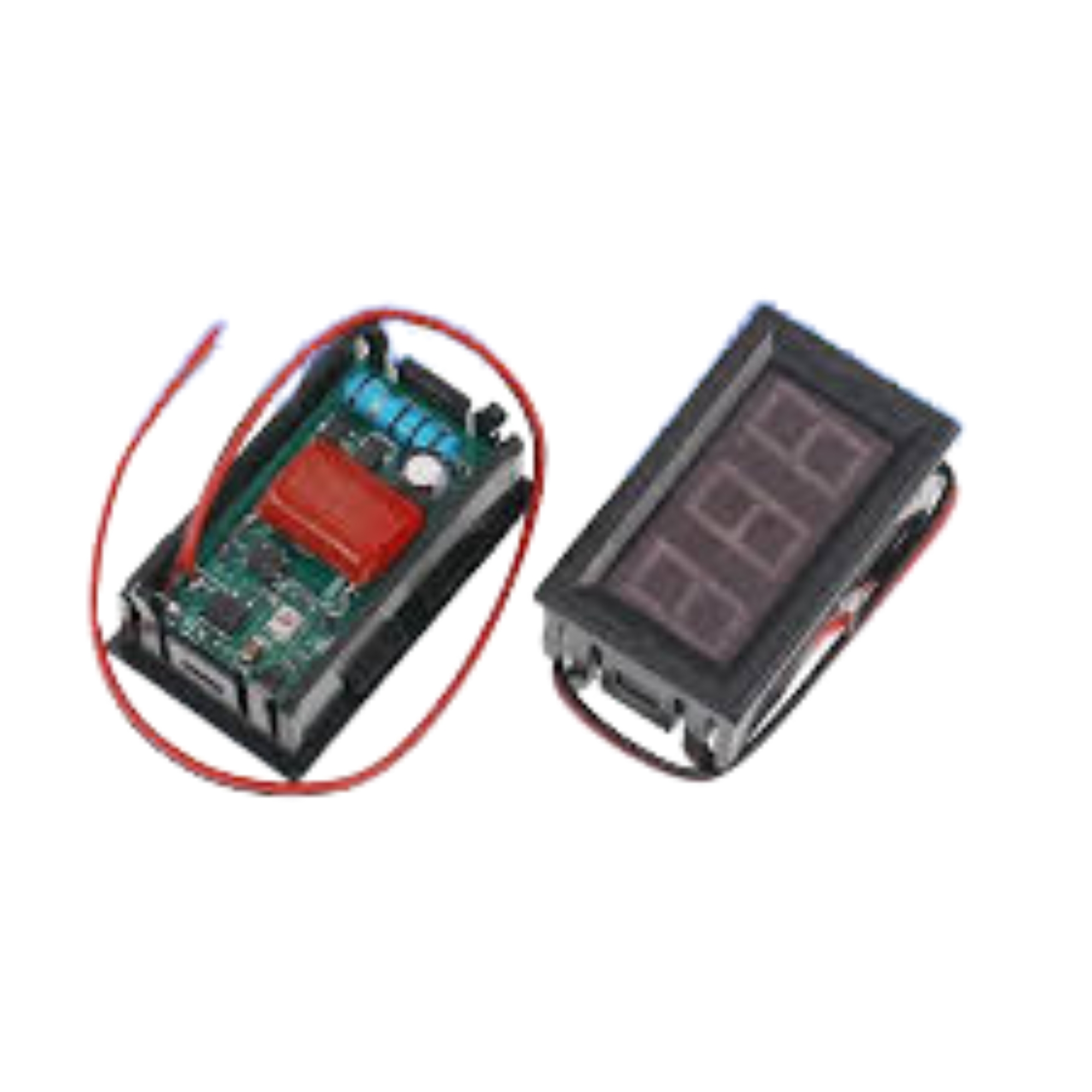

• Product Image may vary in terms of colour Wire and PCB or PCB layout as per the version update from the manufacturer

Package Includes :

• 1 x 0.56inch Red AC220V Two Wire Voltmeter 70V ~ 500V
