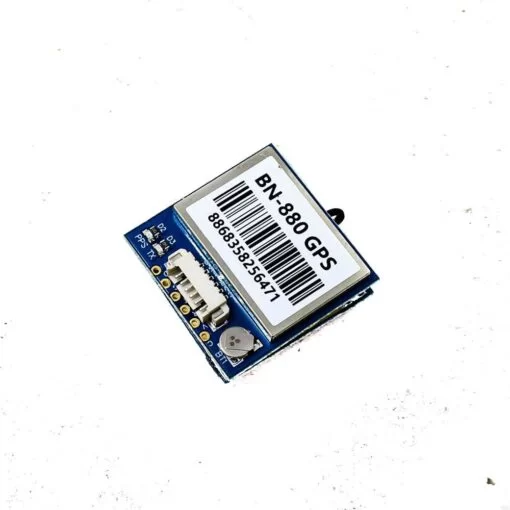

Ready to Sky BN-880 GPS Module

Ready to Sky BN-880 GPS Module is a TTL Level RC Drone. This BN-880 GPS Module can show your speed. When you use it for Raspberry Pi, there is no driver needed. The data output when the TX LED flashing; PPS LED is not bright when GPS is not fixed, flashing in red when fixed

Features:

• GPS Module, Dual Module Compass
• With electronic compass IC HMC5883L
• 1.25mm spacing between the 6pins patch seat

Specifications:

• Model: BN-880

• DC Supply Voltage (V): 2.8V~6.0V, Typical:3.3V or 5.0V

• Consumption: Capture 50mA@5V

• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS

• Receiving Channel : 72 Searching Channel

• Receiving Sensitivity: Trace -167dBm Capture-148dBm

• Level Positioning Precison: 2m At Open Wind

• Output Frequency: 1Hz-10Hz,Default 1Hz

• Speed Precison: 0.1 m/s (Without Aid)

• Acceleration Precison: 0.1 m/s (Without Aid)

• Working Temperature: -40℃-+85℃

• Storage Temperature: -40℃-+85℃

• Weight (g): 11


Packages Includes:

• 1x BN-880 GPS Module
• 1x 15cm Cable

Note:

• Can not use for flight control with ,but it is  suitable for Open source flight controller
