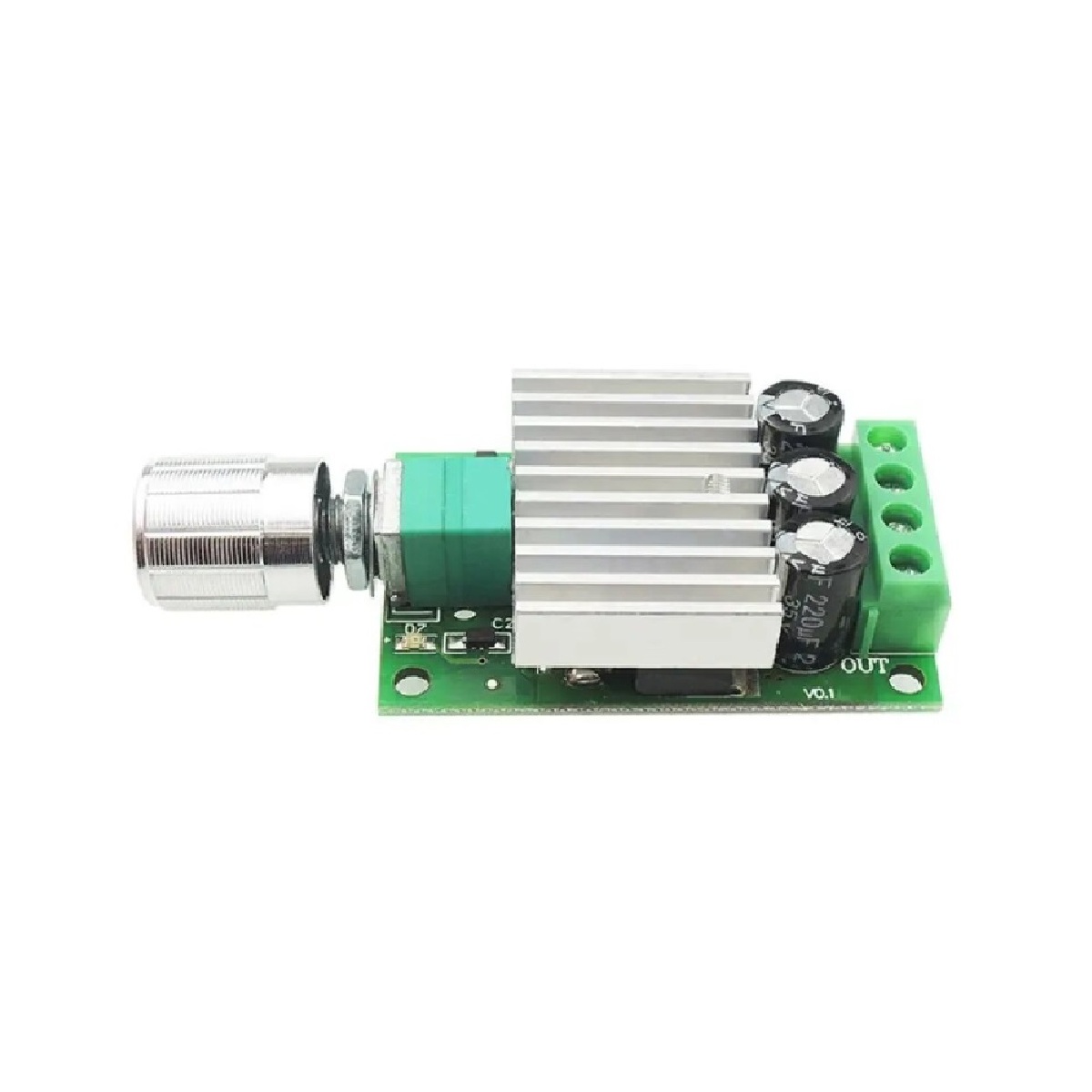

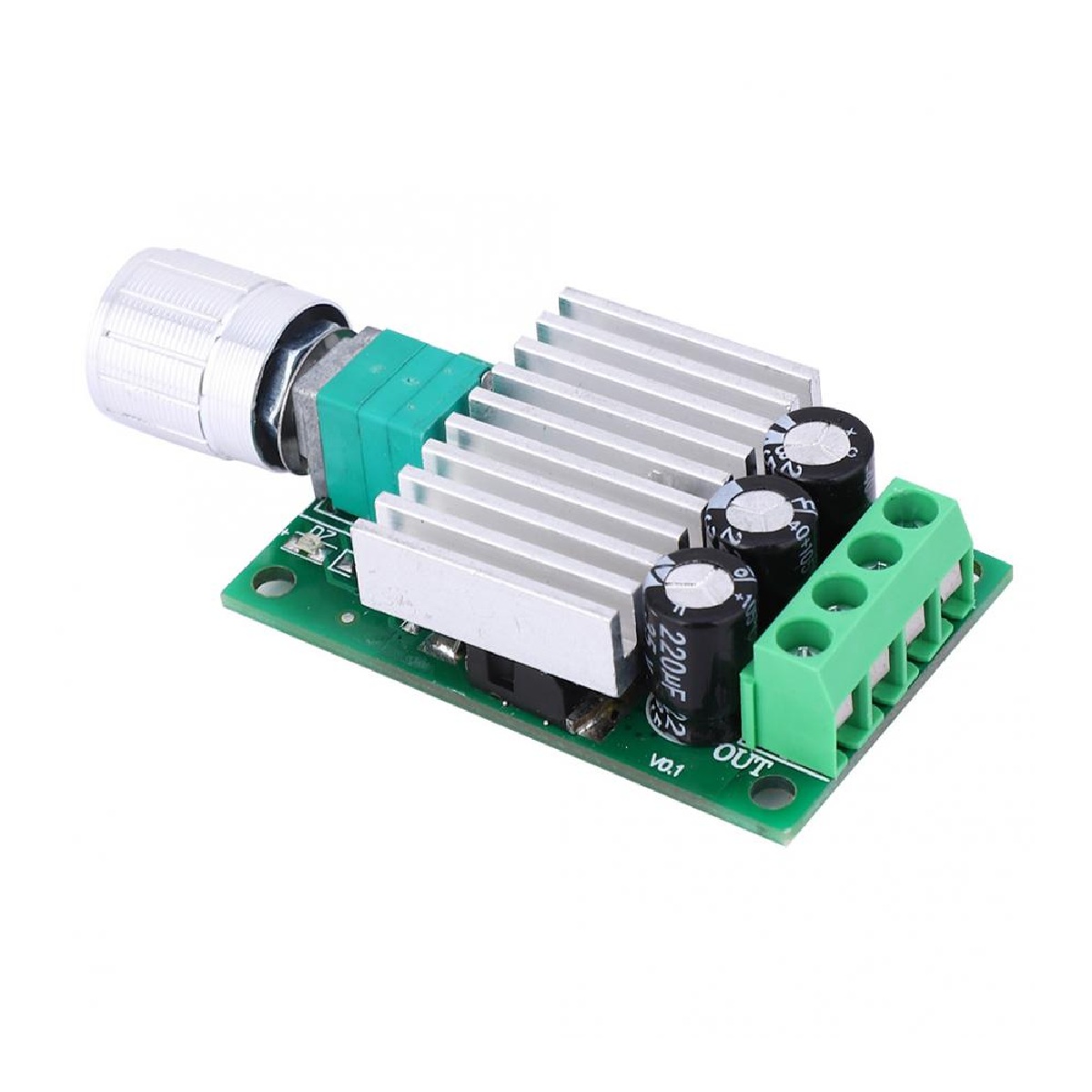

PWM DC Motor Speed Regulator 12V 24V 10A

This PWM DC Motor Speed Regulator 12V 24V 10A is designed for precise speed control of DC motors operating at 12V or 24V and handling currents up to 10A. Using advanced pulse-width modulation (PWM) technology, it allows for efficient and stepless adjustment of motor speed with minimal power loss.

The integrated potentiometer ensures easy control, while features like over-current and over-voltage protection make it perfect for demanding applications across robotics, automation, hobby projects, and industrial systems. Upgrade any DC motor setup with this durable and reliable speed controller for smoother, safer, and more customizable performance.

Features:

• Compatible with DC motors at 12V and 24V
• Supports up to 10A continuous current
• High-efficiency PWM technology for precise speed control
• Adjustable duty cycle (typically 10%–100%)
• Built-in protection against over-current and over-voltage
• Potentiometer knob included for simple speed adjustment
• Compact size with pre-drilled mounting holes
• Suitable for industrial and hobby use

Specifications:

• Input Voltage: 12V DC / 24V DC
• Input Voltage Range: 12V – 40V DC
• Max Output Current: 10A
• Continuous Output: 8A (recommended)
• Max Output Power: 400W
• Standby Current: ~0.02A
• PWM Duty Cycle Range: 10% – 100%
• PWM Frequency: 13 kHz
• Control Method: Rotary Potentiometer
• Dimensions: Approx. 60x55x25 mm
• Protection: Over-current, over-voltage, reverse polarity

Application:

• DC motor speed control in robotics, fans, and pumps
• Conveyor belts, automotive accessories, and model railways
• Automation systems in industry or DIY projects
• Variable lighting (when used with compatible LEDs)
• Home appliance modification for speed adjustment

Package Includes:

• 1 x PWM DC Motor Speed Regulator 12V 24V 10A
