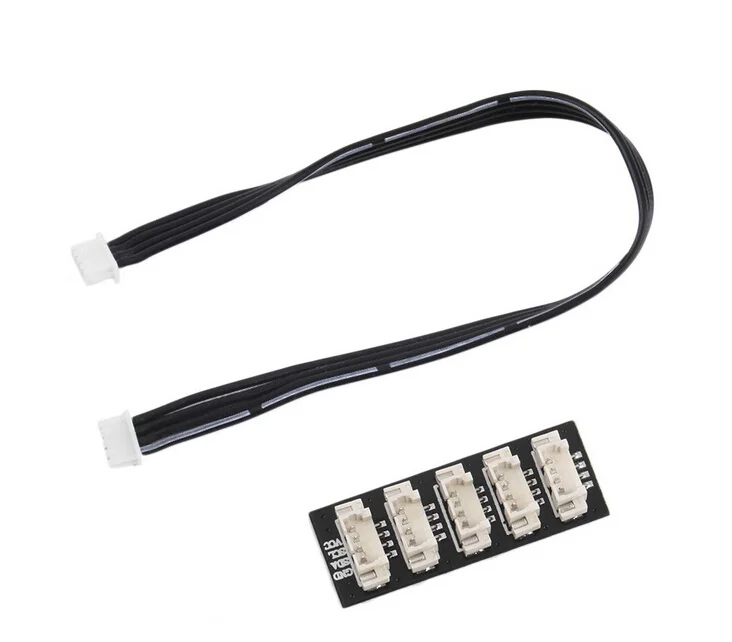

The Pixhawk I2C port Expand Board with cable I2C splitter expands the I2C port to allow up to four additional peripheral connections for Pixhawk.
Use the 4-wire cable to connect the I2C splitter and add a compass module, external LED, digital airspeed sensor, or other peripherals to your vehicle. It is a useful tool and very convenient to connect.
Pixhawk/APM flight control only one I2C interface, such as the need to connect more than one I2C peripheral, you can use the line board; Pixhawk – I2C points line board with five completely parallel vertical 1.25 4 a socket, convenient connection in the form of 1 drag 4 four I2C peripherals, for example, at the same time use the external compass and RGB modules. I2C line board and Pixhawk flight control the appearance of the connection
Features:
- The I2C splitter expands the I2C port to allow up to four additional peripherals to connect to Pixhawk.
- Use the 4-wire cable to connect the I2C splitter and add a compass module, external LED, digital airspeed sensor, or other peripherals to your vehicle.
Specifications:
Out Port |
4 |
Color |
Black |
Case Material |
Plastic |
Length (mm) |
37 |
Width (mm) |
18.3 |
Height (mm) |
9 |
Weight (gm) |
6 |
Package Includes:
- 1 x Pixhawk I2C Port Expand Board with Cable
