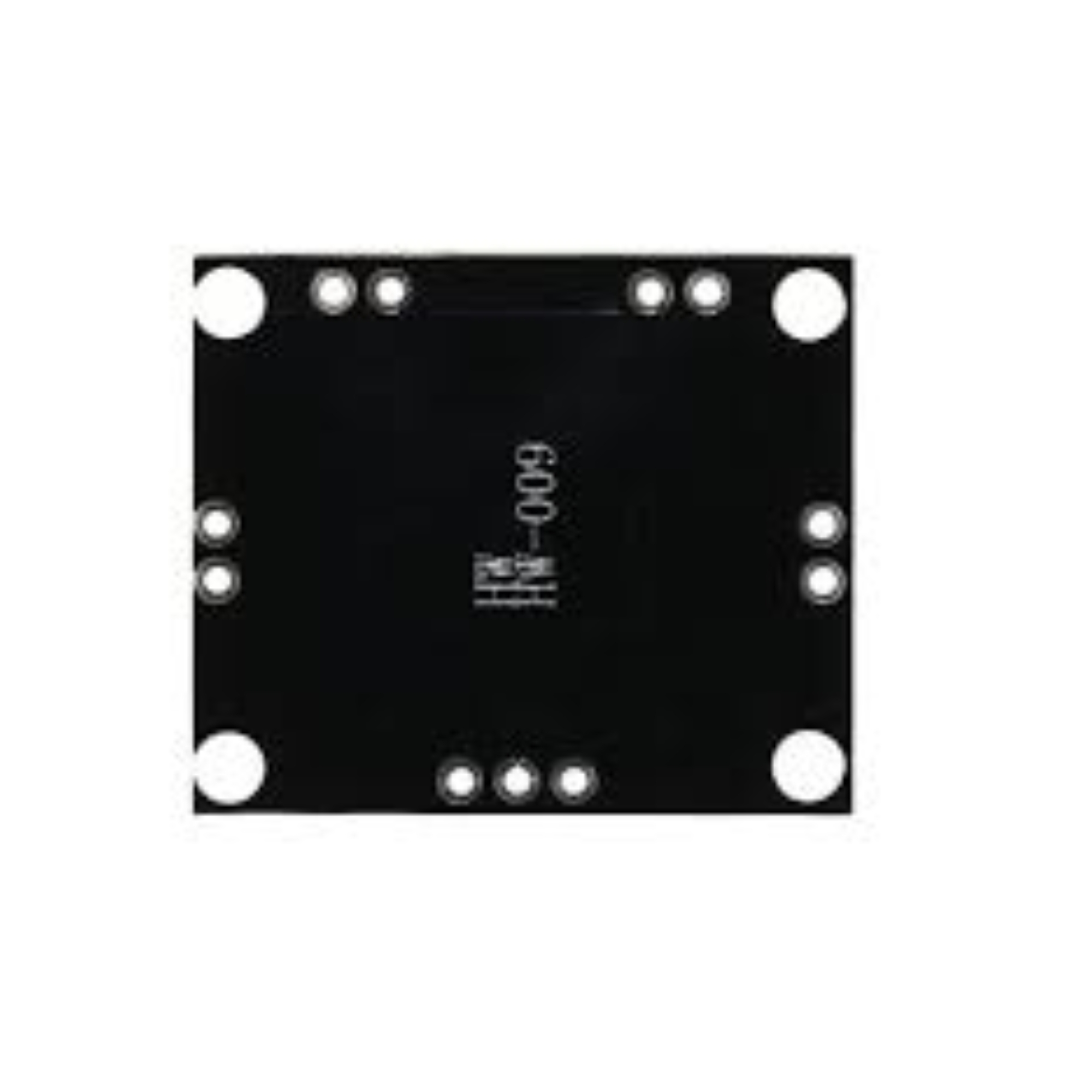

PAM8610 Digital Stereo Class-D Amplifier Board 2x15W Output

PAM8610 Digital Stereo Class-D Amplifier Board 2x15W Output is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs.

The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40pin QFN 6 x 6 mm package.

How to use:

1. The power supply voltage limit is 16.5V, do not use more than this voltage.
2. The power supply is recommended for 12v, 3A power supply filter better.
3. 4-8 inch stereo speakers recommended.
4.  Do not short-circuit the audio output to each other or shorted to ground.
5. Carefully check before electricity, ensure the wiring is correct before electricity.

 Features :

• This plate with a switching function, SW short, will turn off the power amplifier.
• Working Mode: Class D (PWM modulation type).

Specifications:

• Model: PAM 8610
• Input Voltage (V): 7 ~ 15
• Working Mode: Class D (PWM modulation type)
• Power (W): 15
• Length (mm): 30.5
• Width (mm): 25.5
• Height (mm): 2.6
• Weight (gm): 5

Package Includes :

• 1 x PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class-D
