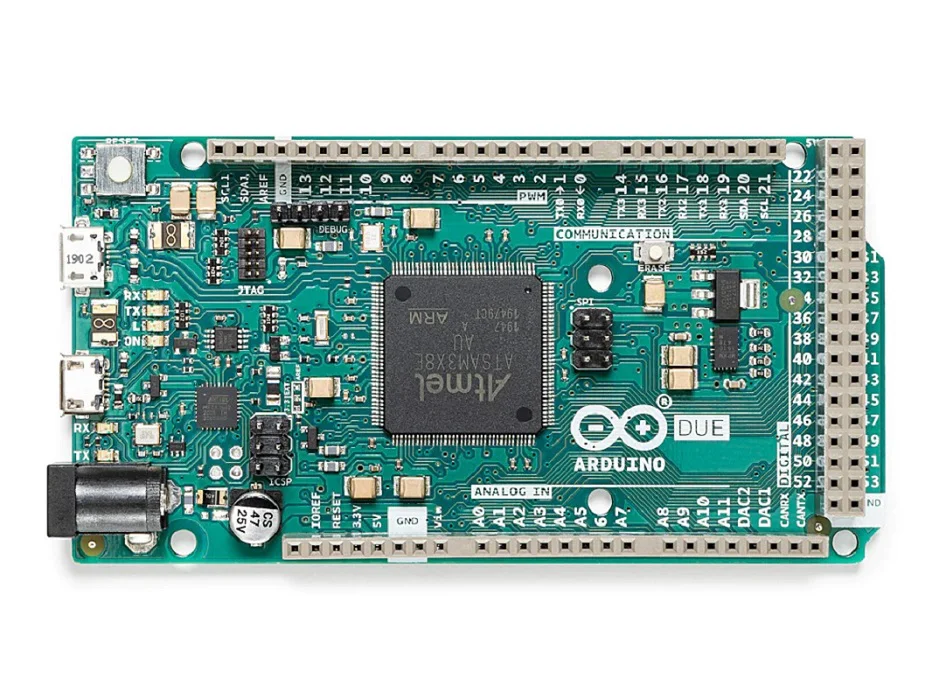

The Arduino Due is a microcontroller board-based Original Arduino Due Board on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
The Arduino Due board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with an AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.
Specifications:
Microcontroller Chip |
AT91SAM3X8E |
Input Voltage (limit) |
6-16V |
Input Voltage(Recommended) |
7-12V |
Analog I/O Pins |
12 |
Digital I/O Pins |
54 (of which 12 provide PWM output) |
Analog Output Pins |
2 (DAC) |
Clock Speed |
84 MHz |
Flash Memory |
512 KB |
SRAM |
96 |
DC Current for 3.3V Pin (mA) |
800 |
DC Current per I/O Pin (mA) |
130 |
On Board LEDs |
Yes |
Operating Temperature (°C) |
-20 to 80 |
Weight (gm) |
36 |
Length (mm) |
102 |
Width (mm) |
54 |
Height (mm) |
25 |
Due follows the 1.0 pinout:
- TWI: SDA and SCL pins that are near to the AREF pin.
- IOREF: allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
- An unconnected pin, reserved for future use.
Warning:
- Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.
Package Includes:
- 1 x Original Arduino Due Board
