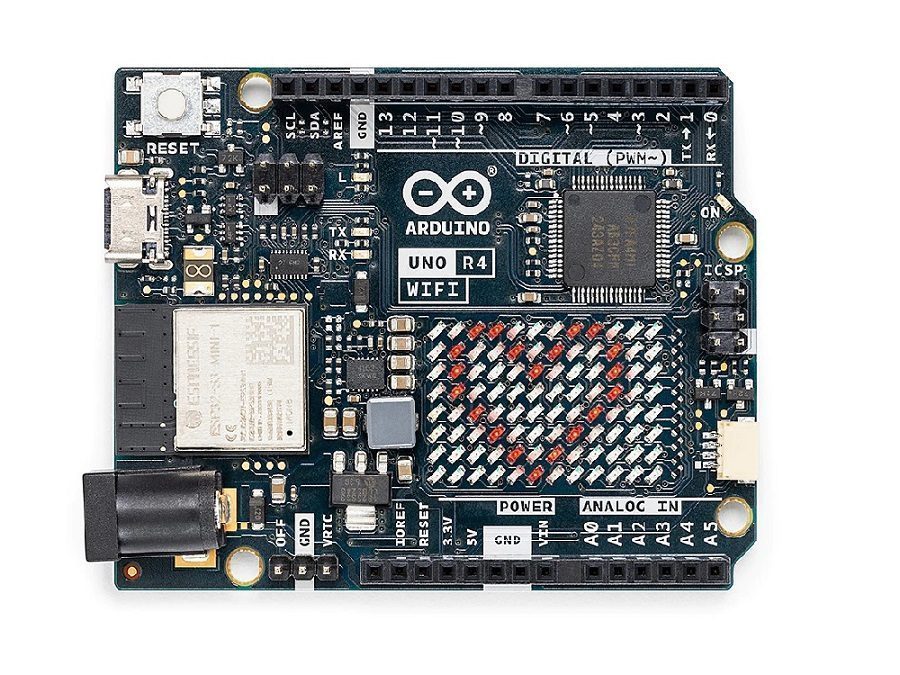

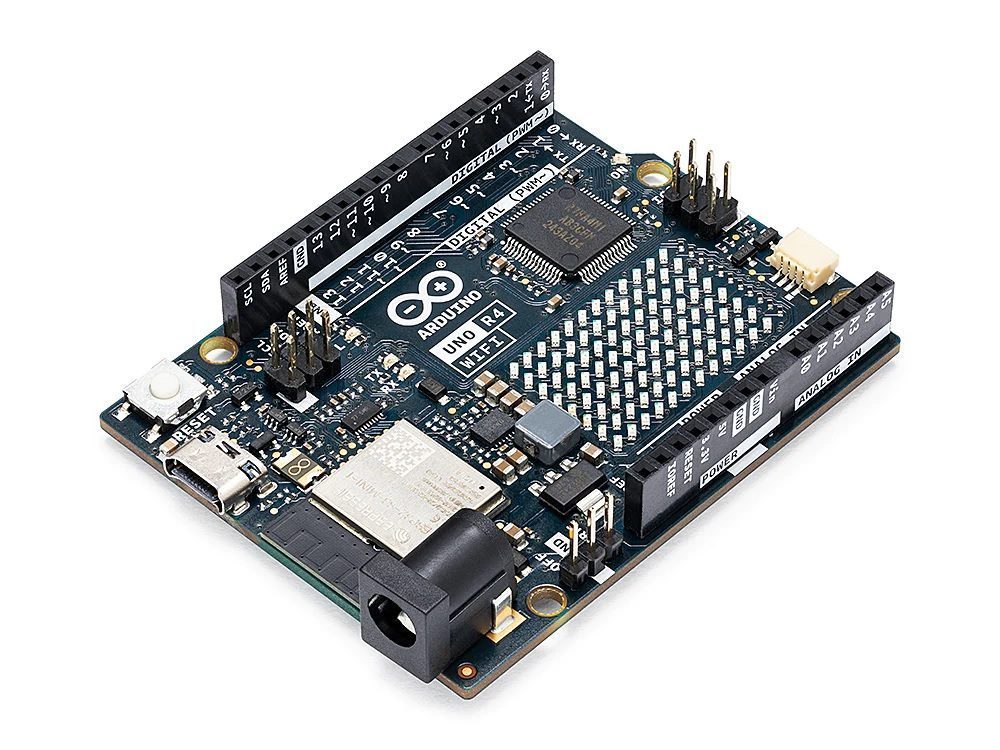

Arduino UNO R4 WiFi

Techtonics is an authorized distributor of Arduino Products and introducing you the most latest addition to the Arduino lineup, the Arduino UNO R4 WiFi board. The Arduino UNO R4 WiFi merges the RA4M1 microprocessor from Renesas with the ESP32-S3 from Espressif, creating an all-in-one tool for makers with enhanced processing power and a diverse array of new peripherals. With its built-in Wi-Fi® and Bluetooth® capabilities, the UNO R4 WiFi enables makers to venture into boundless creative possibilities. Furthermore, this versatile board boasts a convenient on-board 12×8 LED matrix and a Qwiic connector, offering ample space for innovation and unleashing creativity. This dynamic combination empowers makers to transform their ideas into reality and elevate their projects to unprecedented heights.

With the UNO R4 WiFi, you can easily upgrade your project and add wireless connectivity to expand the reach of your current setup. If this is your first project, this board has everything you need to spark your creativity.

Features:

• Hardware compatibility with UNO form factor: The UNO R4 WiFi maintains the same form factor, pinout, and 5 V operating voltage as its predecessor, the UNO R3, ensuring a seamless transition for existing shields and projects.

• Expanded memory and faster clock: The UNO R4 WiFi boasts increased memory and a faster clock speed, enabling more precise calculations and effortless handling of complex projects.
• Extra on-board peripherals: The UNO R4 WiFi introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP, providing expanded capabilities and design flexibility.
• Extended 24 V tolerance: The UNO R4 WiFi supports a wider input voltage range, allowing seamless integration with motors, LED strips, and other actuators using a single power source.
• HID support: With built-in HID support, the UNO R4 WiFi can simulate a mouse or keyboard when connected to a computer via USB, making it easy to send keystrokes and mouse movements.
• Wi-Fi® and Bluetooth®: The UNO R4 WiFi hosts an ESP32-S3 module, enabling makers to add wireless connectivity to their projects. Combined with the Arduino IoT Cloud, makers can monitor and control their projects remotely.
• Qwiic connector: The UNO R4 WiFi features a Qwiic I2C connector, allowing easy connection to nodes from the extensive Qwiic ecosystem. Adapter cables also enable compatibility with sensors and actuators based on other connectors.
• Support for battery-powered RTC: The UNO R4 WiFi includes additional pins, including an “OFF” pin to turn off the board and a “VRTC” pin to keep the internal Real-Time Clock powered and running.
• LED matrix: The UNO R4 WiFi incorporates a bright 12×8 red LED matrix, ideal for creative projects with animations or plotting sensor data, eliminating the need for additional hardware.
• Diagnostics for runtime errors: The UNO R4 WiFi includes an error-catching mechanism that detects runtime crashes and provides detailed explanations and hints about the code line causing the crash.

Specifications:

Board	Name	Arduino® UNO R4 WiFi
Microcontroller	Renesas RA4M1 (Arm® Cortex®-M4)
USB	USB-C®	Programming Port
Pins	Digital I/O Pins	14
Pins	Analog input pins	6
	DAC	1
	PWM pins	6
Communication	UART	Yes, 1x
	I2C	Yes, 1x
	SPI	Yes, 1x
	CAN	Yes 1 CAN Bus
Power	Circuit operating voltage	5 V (ESP32-S3 is 3.3 V)
	Input voltage (VIN)	6-24 V
	DC Current per I/O Pin	8 mA
Clock speed	Main core	48 MHz
	ESP32-S3	up to 240 MHz
Memory	RA4M1	256 kB Flash, 32 kB RAM
	ESP32-S3	384 kB ROM, 512 kB SRAM
Dimensions	Width	68.85 mm
	Length	53.34 mm

With all these features packed into the well-known UNO form factor, now is the perfect time to upgrade your project or embark on your maker journey. The UNO R4 WiFi offers unparalleled versatility and possibilities for makers of all levels.

Package Includes:

• 1 x Arduino UNO R4 WiFi

Useful Link :

• Arduino UNO R4 WiFi Documentation

Note:

• ESP header: the ESP32-S3 module on this board operates on 3.3 V. The ESP header located close to the USB-C® connector is 3.3V only and should not be connected to 5 V. This may damage your board.
• Qwiic connector: the Qwiic connector on this board is connected to a secondary I2C bus on this board, IIC0. This connector is 3.3 V only, connecting higher voltages may damage your board. To initialize this bus, use Wire1.begin() instead.
• Maximum current draw per pin: the UNO R4 series’ maximum current draw per GPIO is 8 mA, which is significantly lower than previous versions. Exceeding this limit may damage your pin / board.
