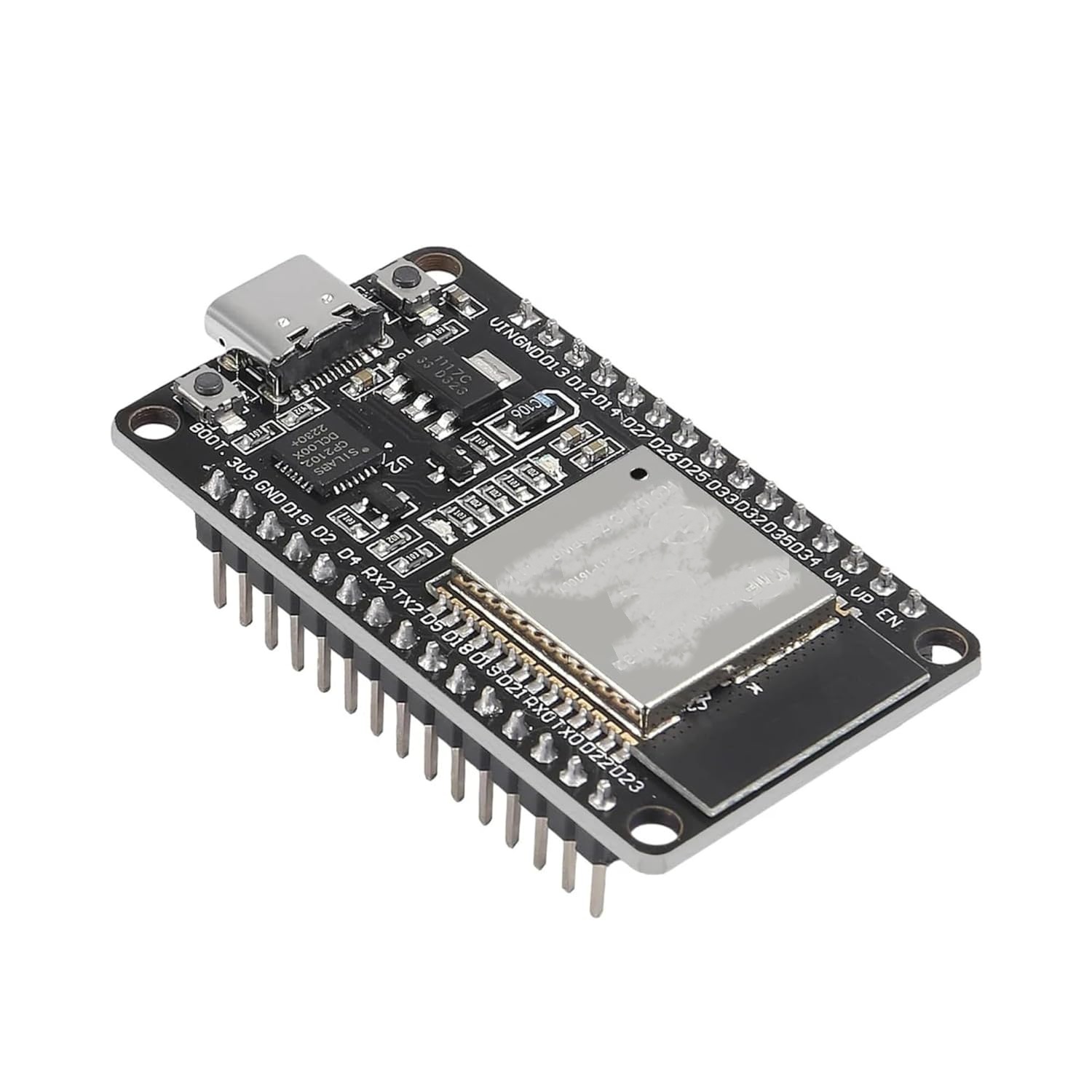

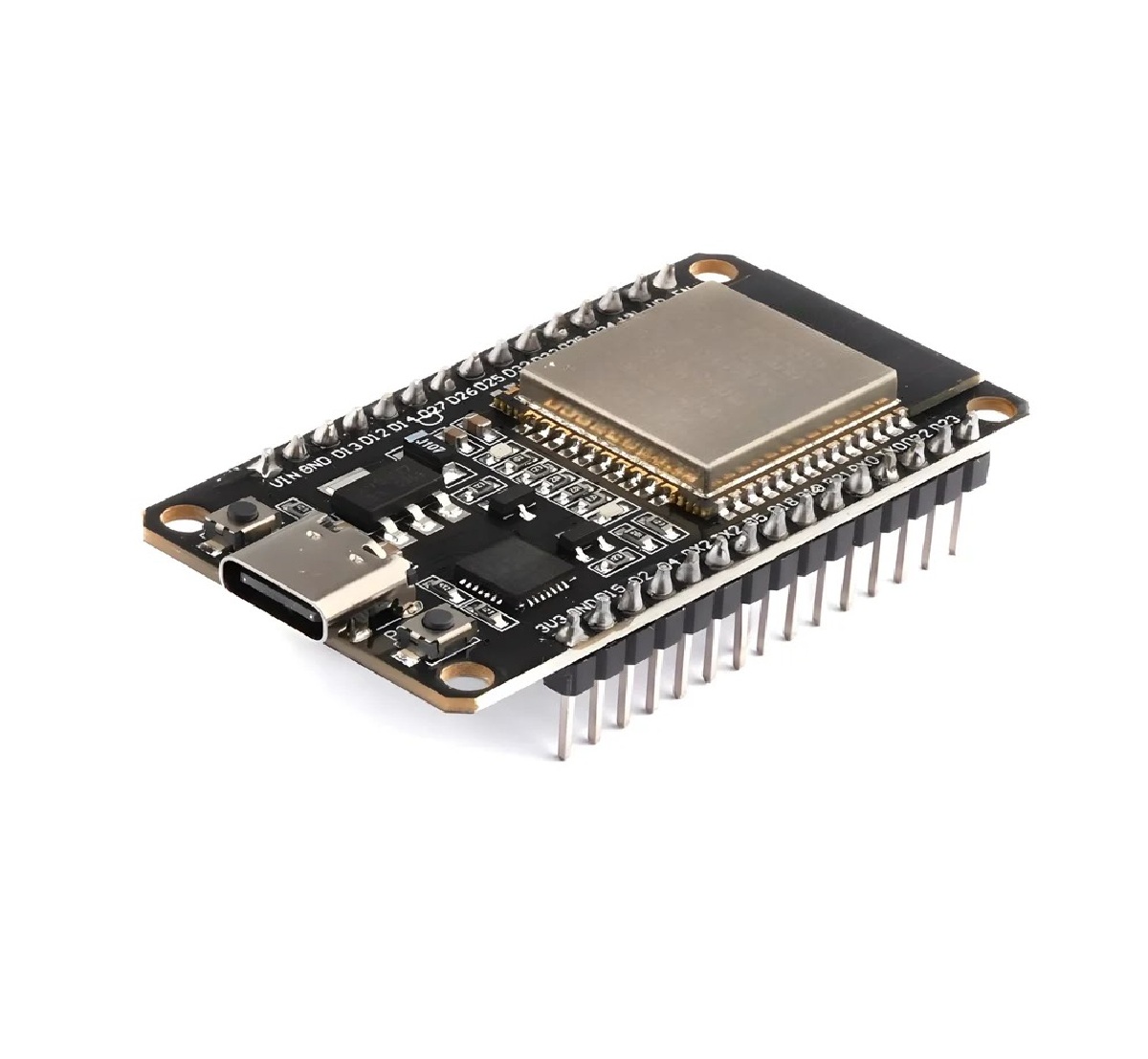

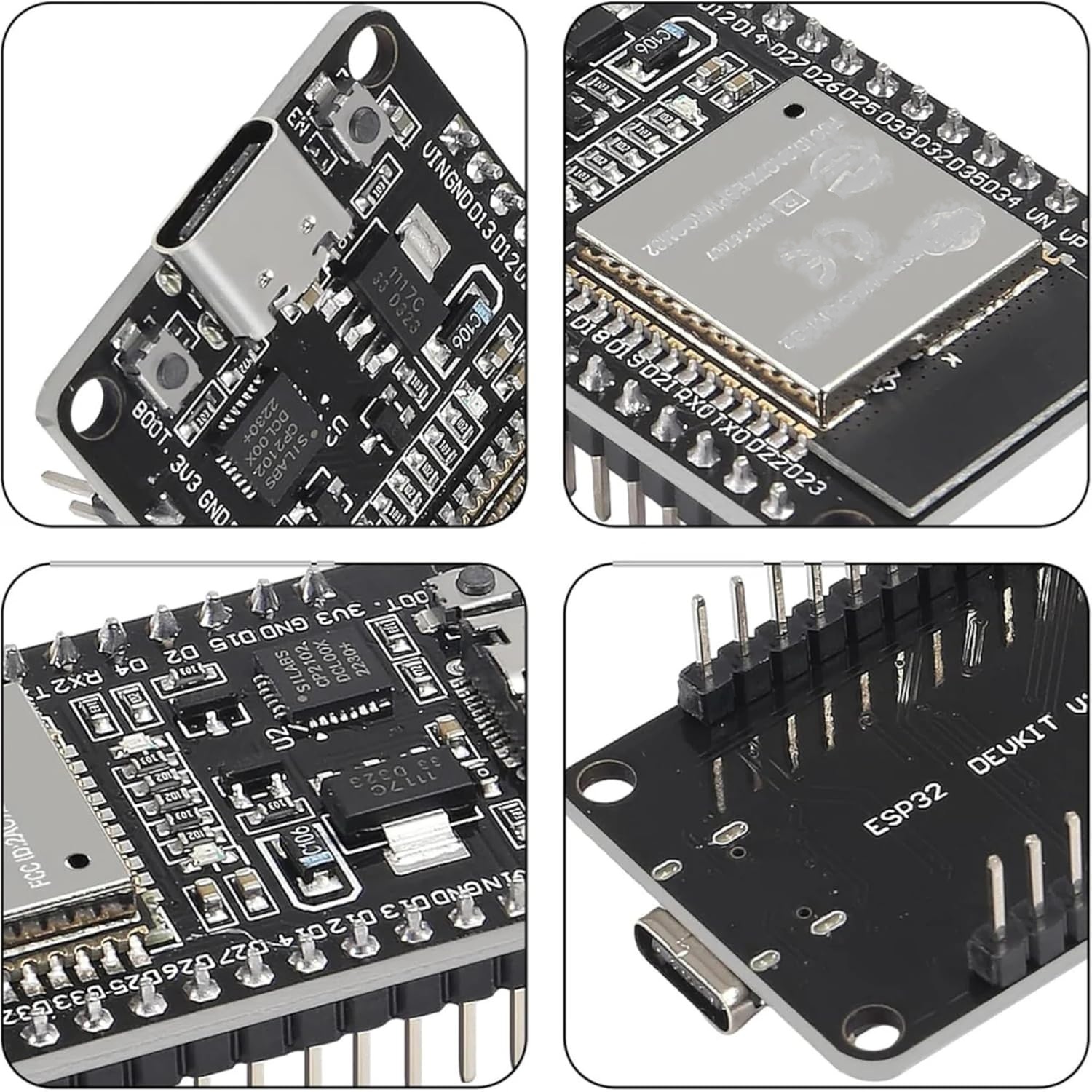

ESP32 WIFI Bluetooth Development Board 30 Pin Type-C CP2102

The ESP32 WIFI Bluetooth Development Board 30 Pin Type-C CP2102 is a powerful and compact microcontroller module featuring the ESP-32 chip. It integrates dual-core processing with 2.4 GHz WiFi and Bluetooth (Classic + BLE) capabilities, making it ideal for IoT, automation, and wireless sensor applications. The board comes with a reliable CP2102 USB-to-serial interface and a Type-C USB port for fast and stable data transmission. With 30 GPIO pins, it supports multiple peripherals including ADC, DAC, PWM, I2C, SPI, UART, and capacitive touch sensors. This Type-C ESP32 module is compatible with a wide range of development environments and perfect for home automation, robotics, industrial control, and other embedded system projects.

Features:

• ESP-32 dual-core 32-bit microprocessor with up to 240 MHz clock speed
• Integrated 2.4 GHz WiFi and Bluetooth v4.2 (Classic + BLE)
• CP2102 USB-to-Serial converter for easy programming and debugging
• Type-C USB interface for fast and reliable data transfer
• 30 GPIO pins supporting ADC, DAC, PWM, I2C, SPI, UART protocols
• Low power consumption with multiple sleep modes
• On-board power and status indicator LEDs
• Compact form factor compatible with breadboards
• Supports various development environments (Arduino IDE, ESP-IDF, etc.)

Specifications:

• Chipset: ESP-32
• Clock Speed: 80 MHz to 240 MHz
• SRAM: 520 KB
• Operating Voltage: 3.3V logic, 5V USB input
• Connectivity: WiFi IEEE 802.11 b/g/n, Bluetooth v4.2 (Classic + BLE)
• USB Interface: Type-C with CP2102 USB-to-Serial bridge
• GPIO Pins: 30 pins
• Operating Current: Approx. 80 mA average
• Dimensions: Approximately 50mm x 28mm
• Weight: About 10 grams

Applications:

• Internet of Things (IoT) devices and networks
• Home automation systems
• Wireless sensor networks and data loggers
• Robotics and embedded system development
• Industrial wireless control and monitoring
• Smart wearable electronics
• Voice and video streaming devices
• Mesh networking applications

Package Includes:

• 1 x ESP32 Development Board (WIFI + Bluetooth + CP2102 + 30 PIN + Type C)

Note:

• This is a programmable microcontroller board. Return/replacement is not applicable for programming issues, driver errors, firmware upload problems, or incorrect wiring.
• Only manufacturing defects or physical damage are covered as per our return policy.
