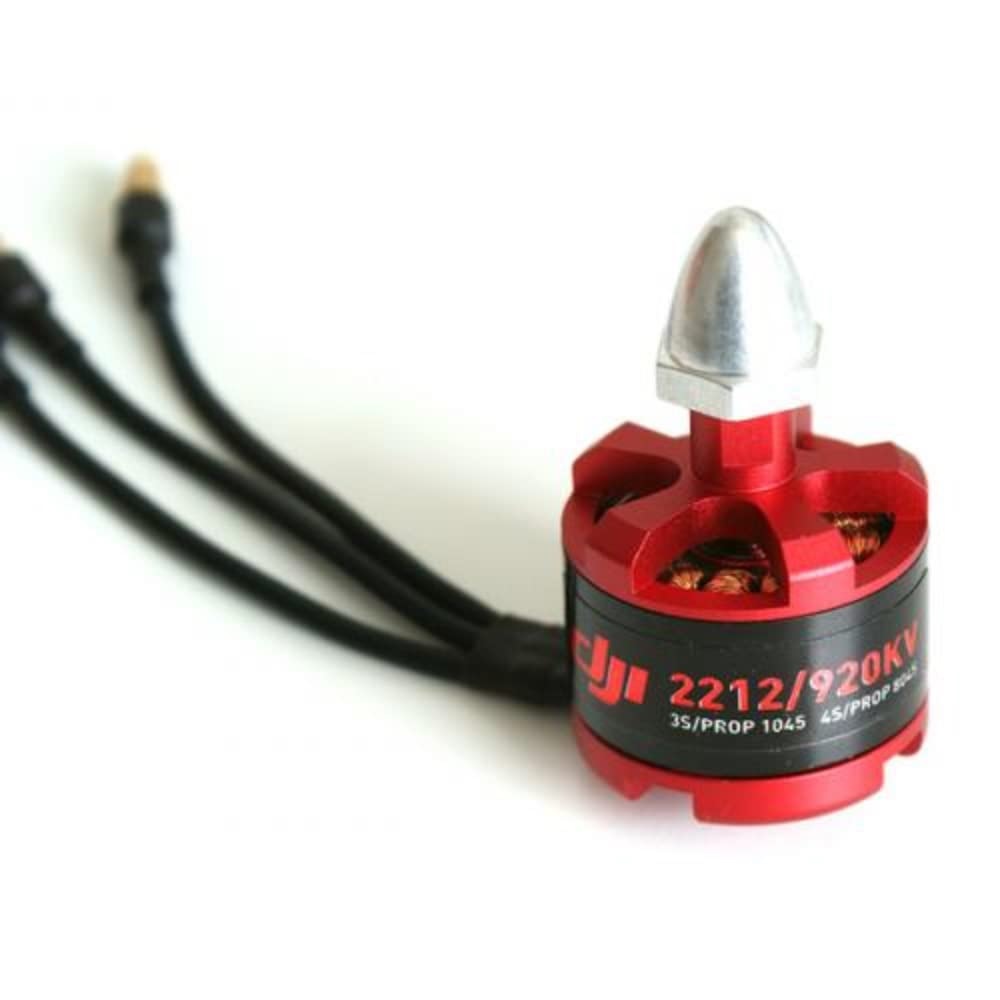

DJI 2212 920KV Brushless DC Motor for Drone with Silver Cap (CCW Motor Rotation)

DJI 2212 920KV Brushless DC Motor (CCW, Silver Cap) – Smooth, Reliable Power for Multi-Rotor Drones

Experience efficient, stable flight with the DJI 2212 920KV Brushless DC Motor – a high-performance motor designed specifically for multi-rotor drones. With its counter-clockwise (CCW) rotation and distinctive silver cap, this motor ensures optimal thrust and low-vibration performance, making it ideal for aerial photography platforms, FPV drones, and custom quadcopters. This motor provides a Motor kV of 920 and gives a thrust of 500 gm.

Features:

• ⚙️ Precision Engineering: Built to DJI standards for consistent power output and long-lasting performance
• 🌀 920KV Rating: Offers a perfect balance of torque and speed, suitable for 9–10 inch propellers
• 🔁 CCW (Counter-Clockwise) Rotation: Identified by silver cap – pair with CW motor (black cap) for complete setup
• ⚡ High-Efficiency Windings: Delivers smooth throttle response and stable flight even under load
• 🛠️ Pre-soldered Connectors: Simplifies installation in most drone frames and power setups

Perfect For:

• DJI Flamewheel series, F450/F550 drones, custom quadcopters, hexacopters, and aerial photography drones.

Specifications:

• Model: 2212 (Silver Cap – CCW)
• KV Rating: 920KV
• Maximum Thrust (gm): 500
• Rotation Direction: Counter-Clockwise (CCW)
• Input Voltage: 2S–4S LiPo
• Rated Voltage (V): 7 ~ 12
• Required ESC (A): 30
• Recommended Prop: 9″–10″ (e.g., 9443, 1045)
• Shaft Diameter (mm): 6
• Motor Diameter (mm): 28
• Mounting Holes: Standard M3 threading
• Connector: 3.5mm bullet connectors (pre-soldered)
• Weight: ~55g

Note:

• For balanced thrust, use this motor with the DJI 2212 920KV CW Motor (Black Cap)
• Please avoid take-off and landing in Dirt (Or loose soil, Dirt gets inside motors and spoils them )
• Clean the motors with a hair drier OR blower after 4-5 flights to get the extended life
• The Motor comes with two types of stickers of Ready To Sky & DJI, they are shipped randomly

Package Includes:

• 1 x 2212 920KV Brushless Motor for DJI / Ready to Sky
• 1 x Silver Cap
