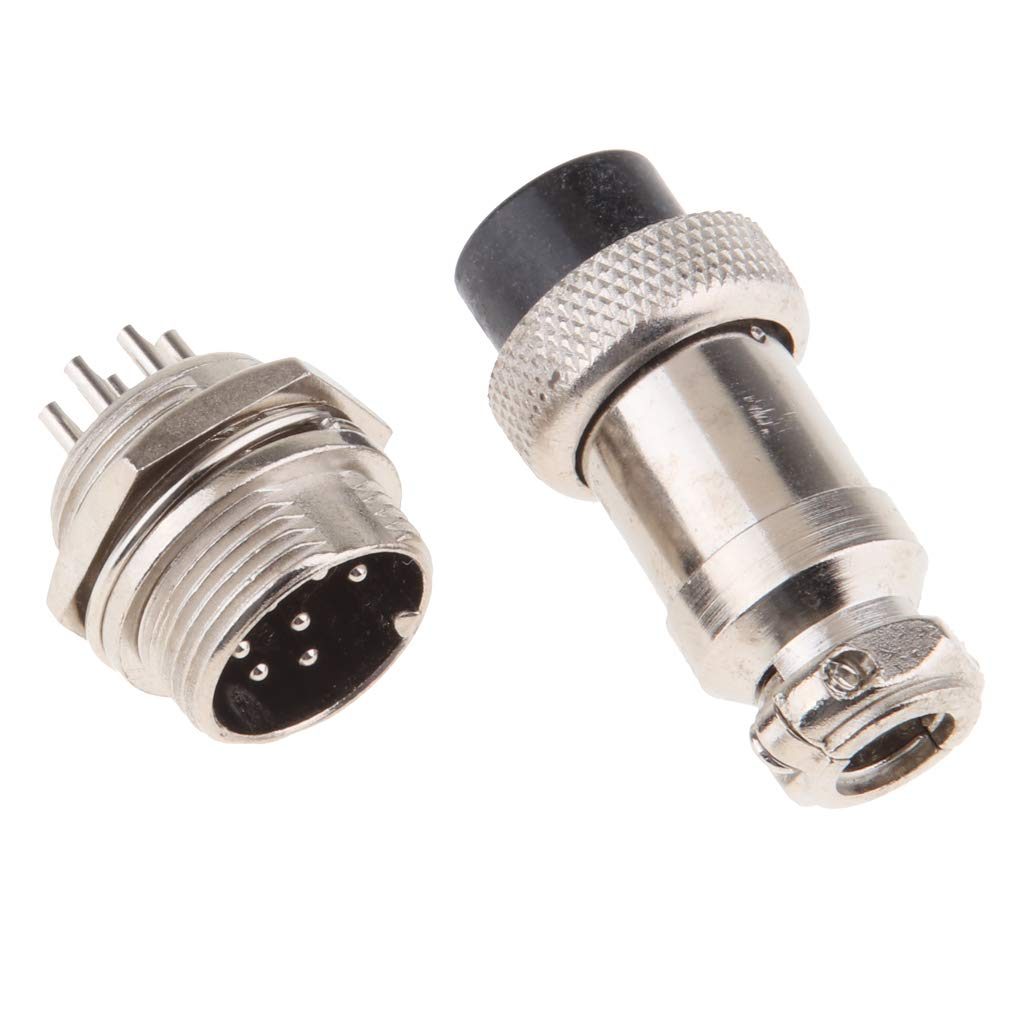

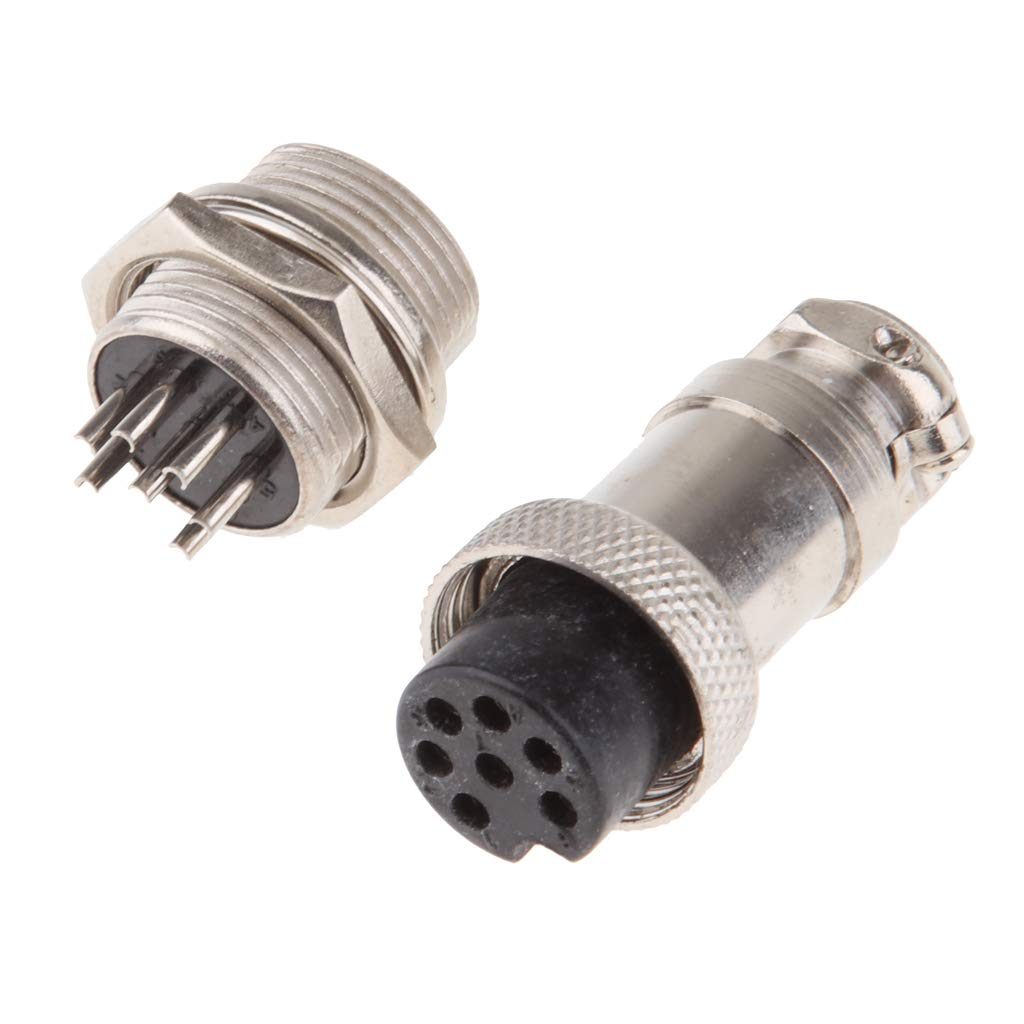

7 Pin GX16 Male Female Panel Mount Circular Aviation Connector Plug Socket, also known as circular shell connector. It is a panel-mount type connector with a male end mounted on the panel and a female connector usually plugs into it. It is used in places where a watertight connection is required.
Features:
- Simple to install.
- Male is panel mountable and female is cable mountable.
- It has separate male and female pins.
Specifications:
Color |
Silver |
Connector Type |
GX16 |
Current Handling Capacity |
5A |
Gender |
Male-Female Pair |
No. of Contact Points |
7 |
Operating Temperature Range |
-20°C to 85°C |
Plug Type |
Aviator Plug |
Rated Operating Voltage |
250 V |
Material |
Metal & Bakelite |
Length |
Male: 20.5mm, Female: 36mm |
Width |
Male: 21mm (Body diameter), Female: 17.5mm (Body diameter) |
Applications:
- It is widely used in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio/video, test and measurement, communications, etc.
Package Includes:
- 1 x 7 Pin GX16 Male Female Panel Mount Circular Aviation Connector Plug Socket
