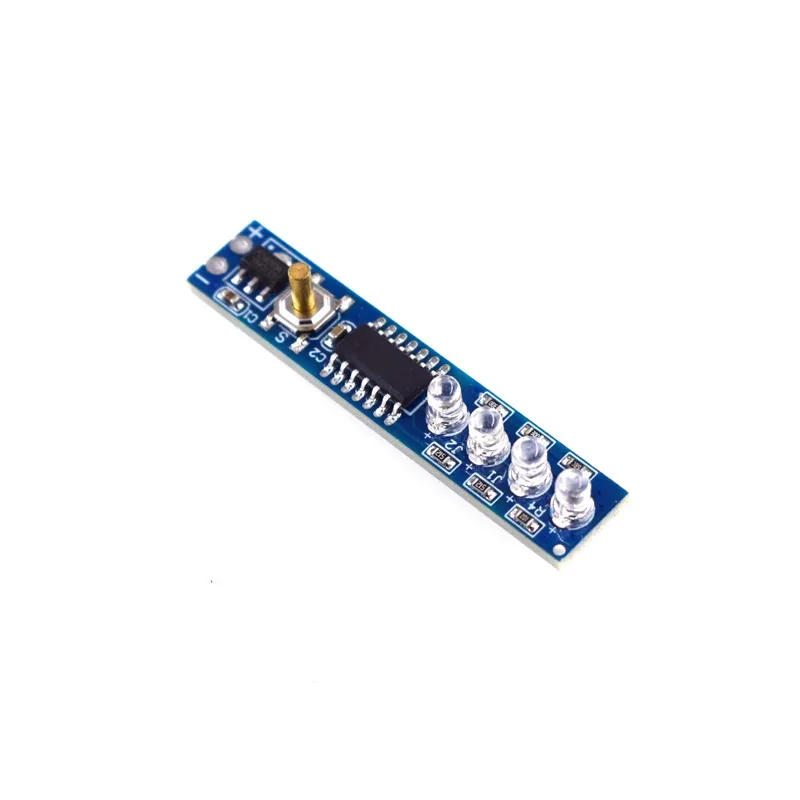

4S 18650 Lithium Battery Capacity Indicator Module Level Tester LED

4S 18650 12V Lithium Battery Capacity Indicator Module Percent Power Level Tester LED Display Board Module is an Intelligent electricity quantity display board; slightly push trigger switch, it will auto power off after 3 seconds display.

We have other Variants choose as per your requirement:

• 1S 18650 Lithium Battery Capacity Indicator Module Level Tester LED
• 2S 18650 Lithium Battery Capacity Indicator Module Level Tester LED
• 3S 18650 Lithium Battery Capacity Indicator Module Level Tester LED
• 4S 18650 Lithium Battery Capacity Indicator Module Level Tester LED

Features:

• The intelligent power display panel
• Static power consumption 2~3 mA, It’s negligible
• Power indication(The color of the lamp is green)

Specifications:

Power Consumption	2~3 mA
U≈6.6V	25% LED Indicator
U≈7V	50% LED Indicator
U≈7.5V	75% LED Indicator
U≈8V	100% LED Indicator
Length (mm)	44
Width (mm)	9
Height (mm)	7.5
Weight (gm)	8

LED  Indication:

• 25% –>First Light is on (Voltage: 4.2 V)
• 50% –>Second light is on (Voltage: 8.4 V)
• 75% –>Third light is on (Voltage: 12.6 V)
• 100% –>Fourth light is on (Voltage: 16.8V)

Package Includes:

• 1 x 4S 18650 Lithium Battery Capacity Indicator Module Level Tester LED
