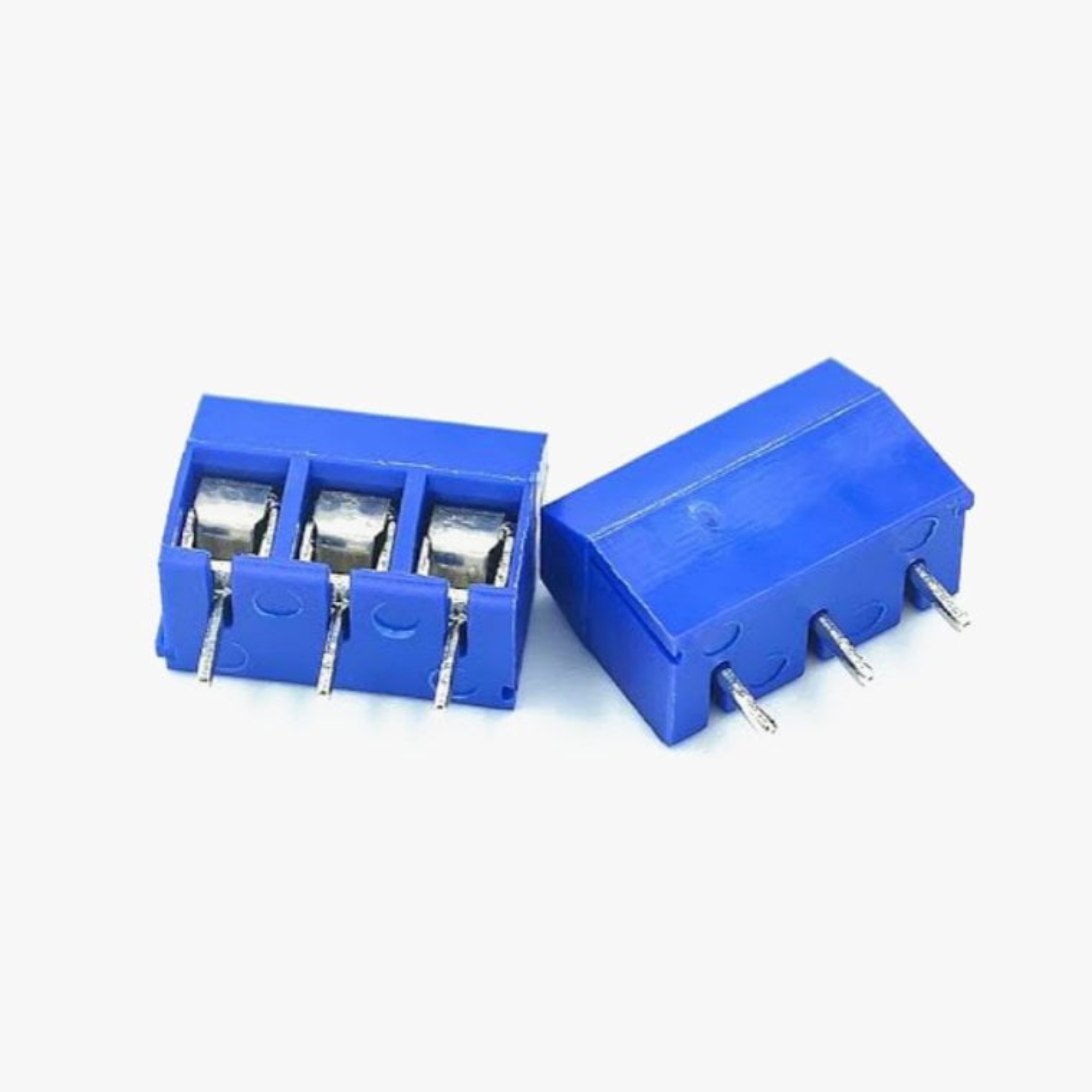

3 Pin TBC Connector – 3pin Screw Terminal Connectors (5mm Pitch) – 5 Pcs

Standard 3pin terminal block connector with 5mm pitch and PCB mountable. It can be easily multiplied to any even number pin connector by just patching them together. This screw terminals are widely used in all kinds of electronics devices for connecting the wires. They accept wires of 26-14 AWG or 2.5mm2. The maximum rated voltage is 125V @ 10A.

You can make 6 pin, 9pin or 12pin by simple connecting / interlocking multiple 3pin Screw terminal connector.

Specifications:

• Wire gauge:  24-18 AWG
• Current rating:  10 A
• Voltage rating:  125 V
• Contact resistance:  20 mΩ
• Wire strip length:  5 mm
• Terminal type:  screw
• Orientation:  side entry
• Dimensions:
• Pins:  3
• Spacing:  3.5 mm

Package includes:

• 1 X 3 pin screw terminal 3.5 mm pitch ( Color of TB connector will be sent randomly Green or Blue)
