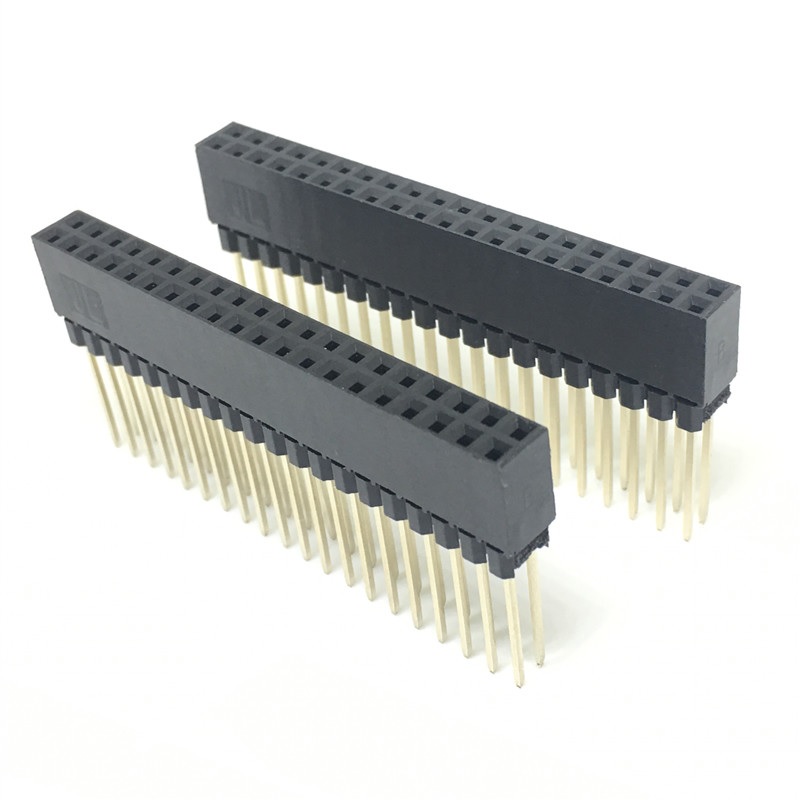

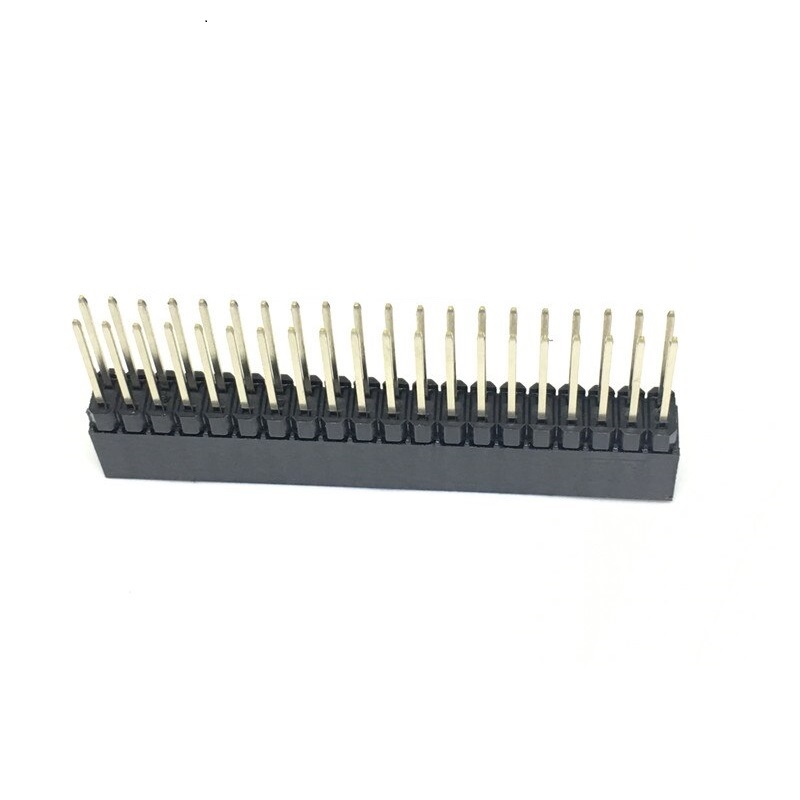

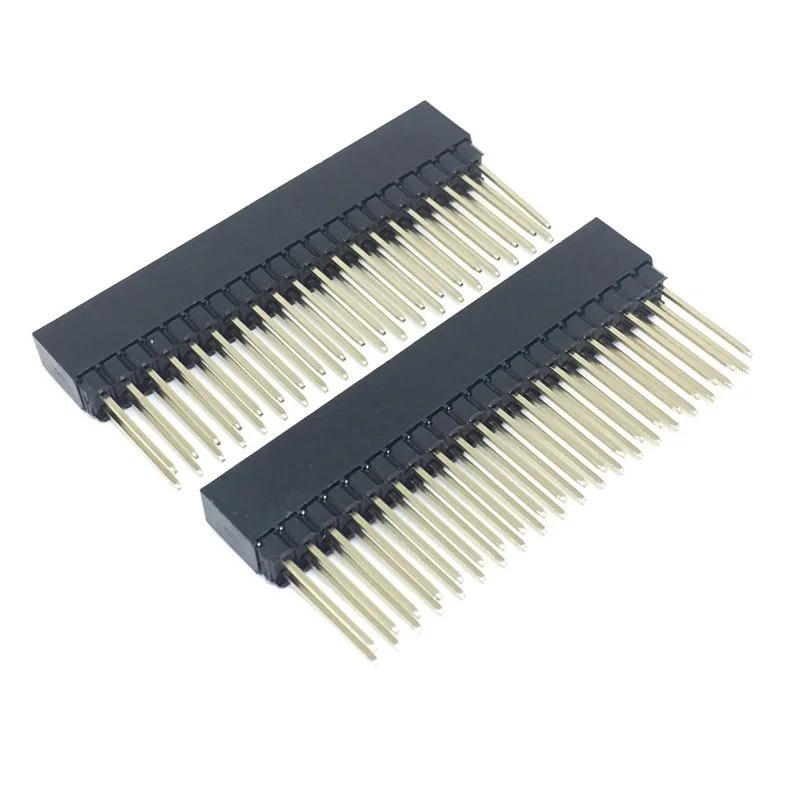

2.54MM 2×20 Pin Female Double Row Straight Long Header Strip

It is a 2.54mm 2×20 Pin Female Double Row Straight Long Header Strip. It has two rows of 20 pins each. Ideal for through-hole mounting. It has 12mm long pins.

Specifications:

• Pitch Spacing (mm): 2.54
• Connector: Header Strip
• Gender: Female
• Mounting Type: Through Hole
• Pin Length (mm): 12
• Pin Spacing (mm): 2.54
• No. of Rows: 2
• Contact Material: Phosphor Bronze
• Contact Resistance: 20mΩ
• Insulation Material: PBT UL 94V-0
• Insulation Resistance (MOhm): ≥1000
• Length (mm): 51
• Width (mm): 5
• Height (mm): 10
• Weight (g): 6

Package Includes:

• 1 x 2.54MM 2×20 Pin Female Double Row Straight Long Header Strip
