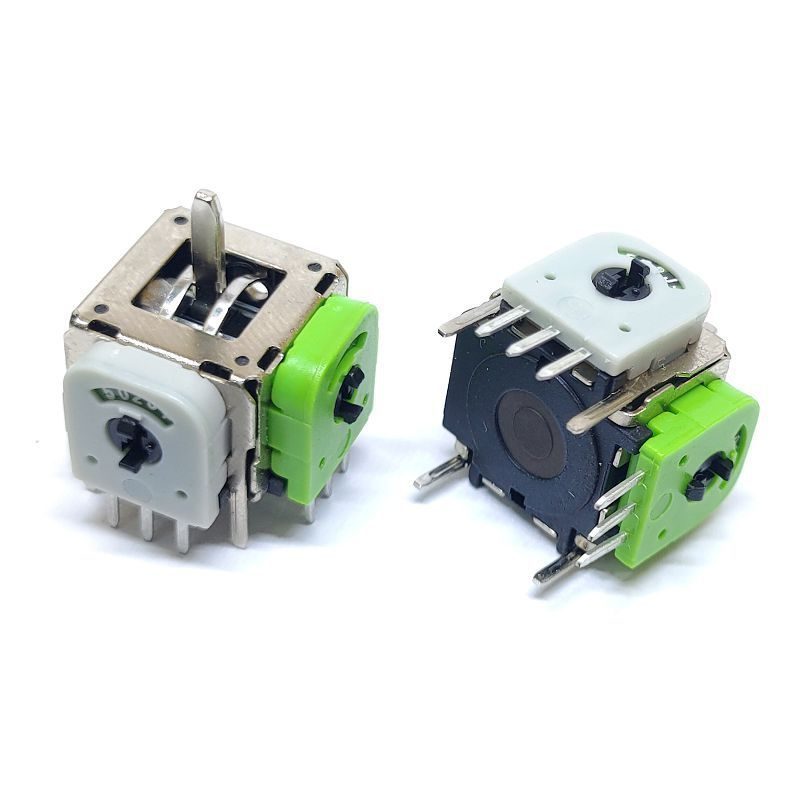

Game Controller Analog Joystick 2-Axis 5K Resistance Potentiometer

Game Controller Analog Joystick 2-Axis 5K Resistance Potentiometer is a Game Controller Analog Joystick very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~5k each. A good replacement for your damaged or non-working 3D joystick axis & thumbstick. It will make your controller work normally again.

Features:

• Once achieved a desirable setting, the operator can let go of the control.
• The potentiometer will always return to its resting point in X-axis and Y-axis.
• The signal output, either in voltage or resistance, is nearly step-less.
• A layer of silver can be added onto the potentiometer substrate, this band of silver can determine whether the potentiometer has returned to its resting point or not, also it widens the tolerance of error for its resting point.

Electrical Characteristics:

• Total Rotational Angle: 55° ±5°
• Total Resistance: 5K ~ 500 KΩ
• Resistance Type: J0B
• Tolerance Resistance: ±10%
• Rotary Noise: <300mV
• Insulation Resistance: <100MΩ at DC 250V
• Rated Voltage: AC 50V / DC 5V
• Rated Power: 0.0125W
• Withstand Voltage: AV 250V

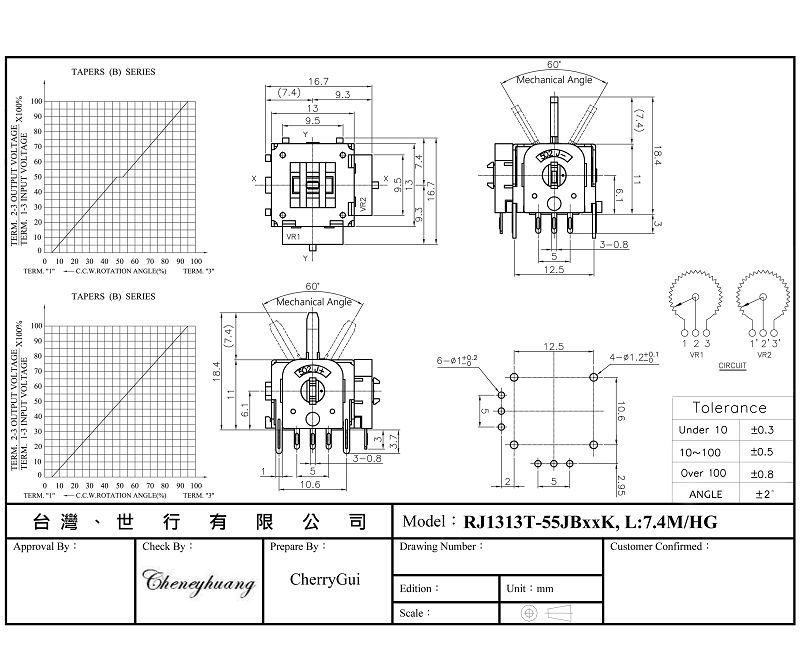

Mechanical Characteristics:

• Rotational Angle: X:60°, Y:60° ±5° (360°)
• Centre Tolerance: ±2%
• Rotational Stopper Strength: 500 gf.cm
• Rotational Operating Force: 100 ~ 200 gf.cm
• Operating Voltage : DC 12V max.
• Rotational Life: 100,000 Cycles
• Soldering Conditions: 250° Celsius within 5s

Application:

• Using in game handle for controlling roles that move around.
• Remote control car, directional control for ships, and cruising speed setting.
• Remote control aircraft altitude and directional control and cruising speed setting.
• Disable vehicle’s steering control and cruising speed setting.

Package Includes:

• 1 x Game Controller Analog Joystick 5k
