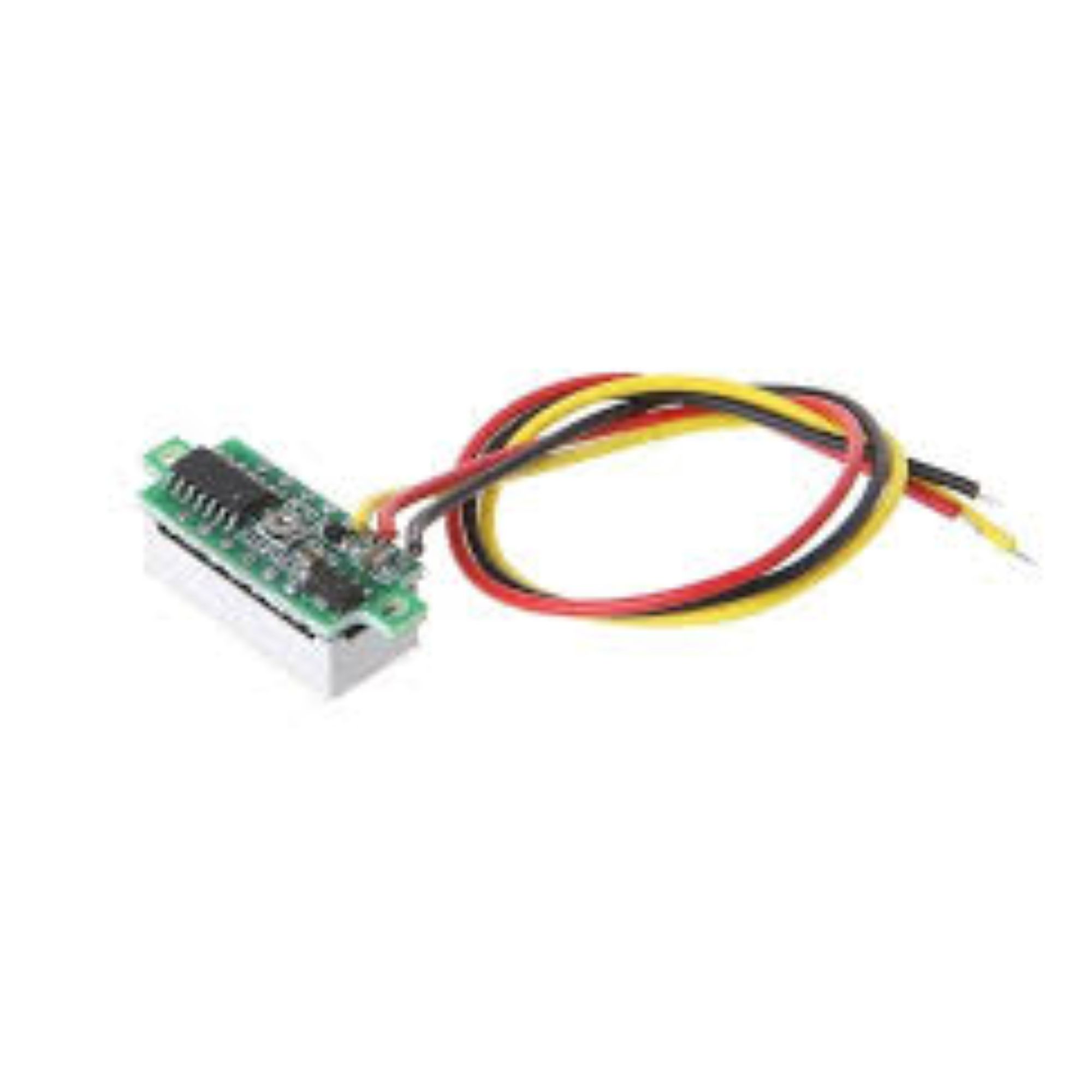

0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter Red

This 0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter Red. its a tiny and compact digital voltmeter with a red LED Display. The 0.28inch 0-100V DC three Wire Red LED Display requires only a few minutes of configuration and is as simple as directly connecting wires to the source you want to measure and seeing the LED blink!!!!

The red wire is to connect to the positive pole, the black wire is to connect to negative pole and the yellow/white wire is to connect to the positive pole of that source or another source across which we meant to measure the voltage. While measuring the supply voltage of another source make sure that negative pole is joined common. No need to worry even if there is any connection mismatch of the wires, the electric circuit won’t be a boom because it features reverse polarity protection.

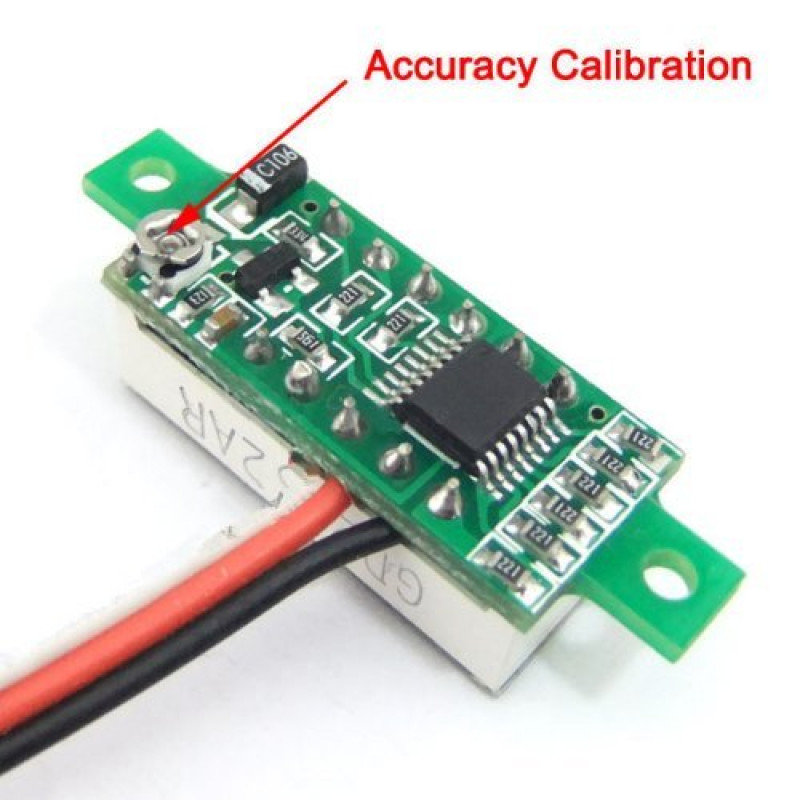

To reach the best measurement accuracy, this voltmeter will automatically move the decimal point position according to the different measuring voltage. When it measures the voltage below 10V, it will display two places after the decimal point. When it measures the voltage above 10V, it will display one place after the decimal point.

This voltmeter can be used to measure the storage battery’s voltage in motorcycles and cars and also can grasp the storage battery status. It also can be used to measure other voltage. 30V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid voltmeter permanent damage because of an electrical spark, power supply ripple, or other too high abrupt change of voltage.

Very bright and decent LED Display is ready to measure the dc voltages in the range of 3.6V to 28V.

Features :

• Very small and lightweight voltmeter module.
• Very handy and easy to use.
• Red LED display.
• Best operates in the working voltage range of 5V to 24V

Specifications:

• Accuracy: 0.1 V
• Color: Red
• Wires: 3
• Display ON Voltage (V): 3
• Operating Voltage(VDC): 0 ~ 100V
• Current Consumption (mA): 10
• Refresh Speed (ms): 200 (one time)
• Minimum Input: 3 V
• Highest Input: 30 V
• Operating Temperature (°C): -10 to 60
• Holes for Mounting: 3 mm
• Height (mm): 9
• Length (mm): 13
• Width (mm): 30
• Weight (gm): 3

Connections :

• Red Wire: Positive of the Power supply
• Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source
• Yellow/White/Blue: Positive of the measurement voltage source

Note: The display weight and Dimensions may have 2% error.

Package Includes:

• 1 x 0.28inch 0-100V Three Wire DC Voltmeter Red
