0.56 inch Seven Segment Display (Red, Common Anode)

This 0.56 inch Seven Segment Display is a versatile and essential component for any electronics project or product requiring numerical display functionality. This display, featuring a vibrant red color and a common anode configuration, is ideal for a variety of applications including digital clocks, counters, timers, and other numerical indicators.

This Seven segment LED display offers clear and bright red illumination, ensuring excellent visibility even in low light conditions. Its compact size and standard pin configuration make it easy to integrate into your projects, whether you’re a hobbyist or a professional engineer.

This seven segment LED is compatible with a wide range of microcontrollers and development boards, making it a versatile addition to your toolkit. Whether you’re building a simple counter or a more complex display system, this component will provide reliable and bright performance.

Upgrade your projects with the 0.56 inch Seven Segment Display and enjoy precise, bright, and reliable numerical displays every time.

Features

• Bright Red Illumination: Provides excellent visibility.
• Common Anode Configuration: Simplifies circuit design and connectivity.
• Compact Size: Fits well in a variety of electronic devices.
• Durable Construction: Ensures long-lasting performance.

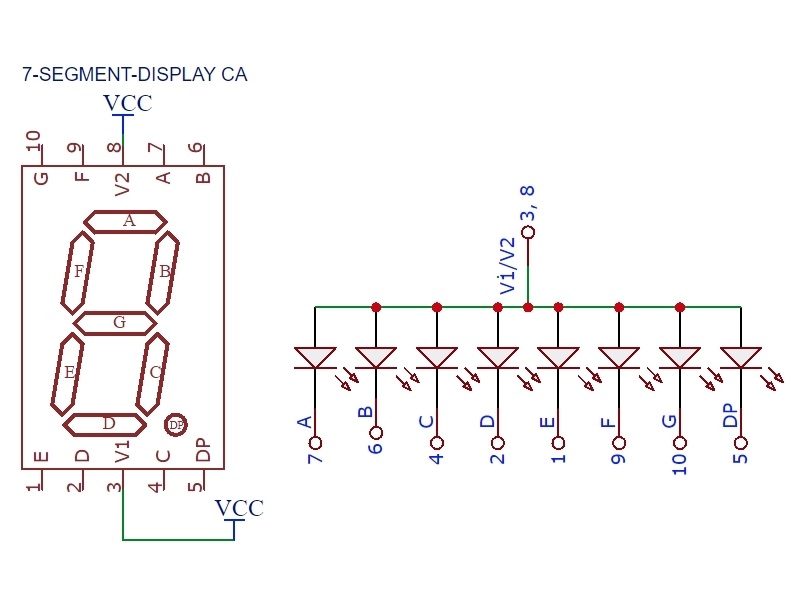

• Standard Pin Configuration: Easy to integrate into existing circuits.

Specifications

• Display Type: Seven Segment
• Color: Red
• Digit Height: 0.56 inch
• Configuration: Common Anode
• Forward Voltage: 2V (typical)
• Forward Current: 20mA (typical)
• Wavelength: 625nm
• Operating Temperature: -40°C to 85°C
• Dimensions: 14.2mm x 10mm x 8mm
• Pin Pitch: 2.54mm

Applications

• Digital Clock Display
• Counters
• Timers
• Scoreboards
• Digital Meters
• Household Appliances

Package Includes

• 1 x 0.56 inch Seven Segment Display (Red, Common Anode)

Note: Please ensure correct wiring to avoid damage to the display.
