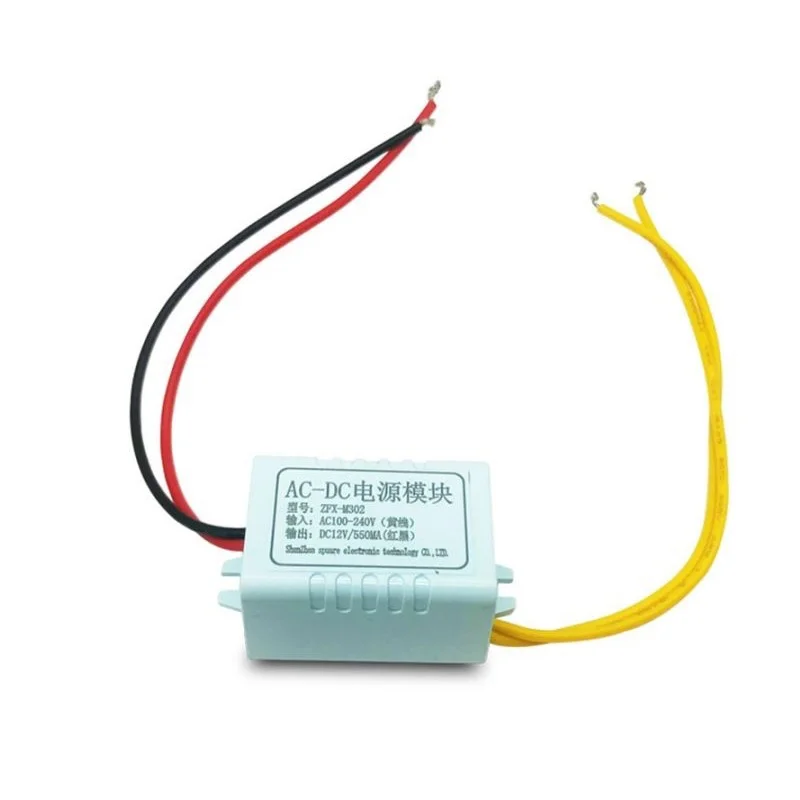

ZFX-M302 AC100-240V DC 12V 550mA Switching Power Module

ZFX-M302 AC100-240V DC 12V 550mA Switching Power Module is a high-Quality DC 12V 550mA Adapter with AC 100-240V Input range. It is widely used for LED Driver and as a Switched-mode power supply (SMPS) for various devices that required 12V with low current. This is an advanced power supply and better than conventional ones. If you want low losses and stable output also you don’t want to make a rectifier, so go for this switching power supply module.

This is a high-quality AC to DC Switching Power Adapter which gives a clean regulated 12 VDC output at up to 50mA. These adapter work with 240/220VAC input, allowing them to work with household supply.

Features :

• PWM design, make sure the stability and high efficiency of power supply.
• Anti-jamming, passed EMC test, wave less than 20MV.
• Efficiency above 80%, exotherm less than 25 degree
• Function: with overvoltage protection, short-circuit protection, overload protection
• Non-waterproof
• Constant voltage output assumes a stable power supply for LED lightings to reach a long lifetime and reduce led to light decay.

Specifications:

• Model: ZFX-M302
• Input Voltage (V AC): 100 ~ 240
• Operating Voltage (VDC): 12
• Operating Current (A): 0.55
• Length (mm): 40
• Width (mm): 30
• Height (mm): 25
• Weight (gm): 30

Package Includes :

• 1 x ZFX-M302 AC100-240V DC 12V 550MA Switching Power Module
