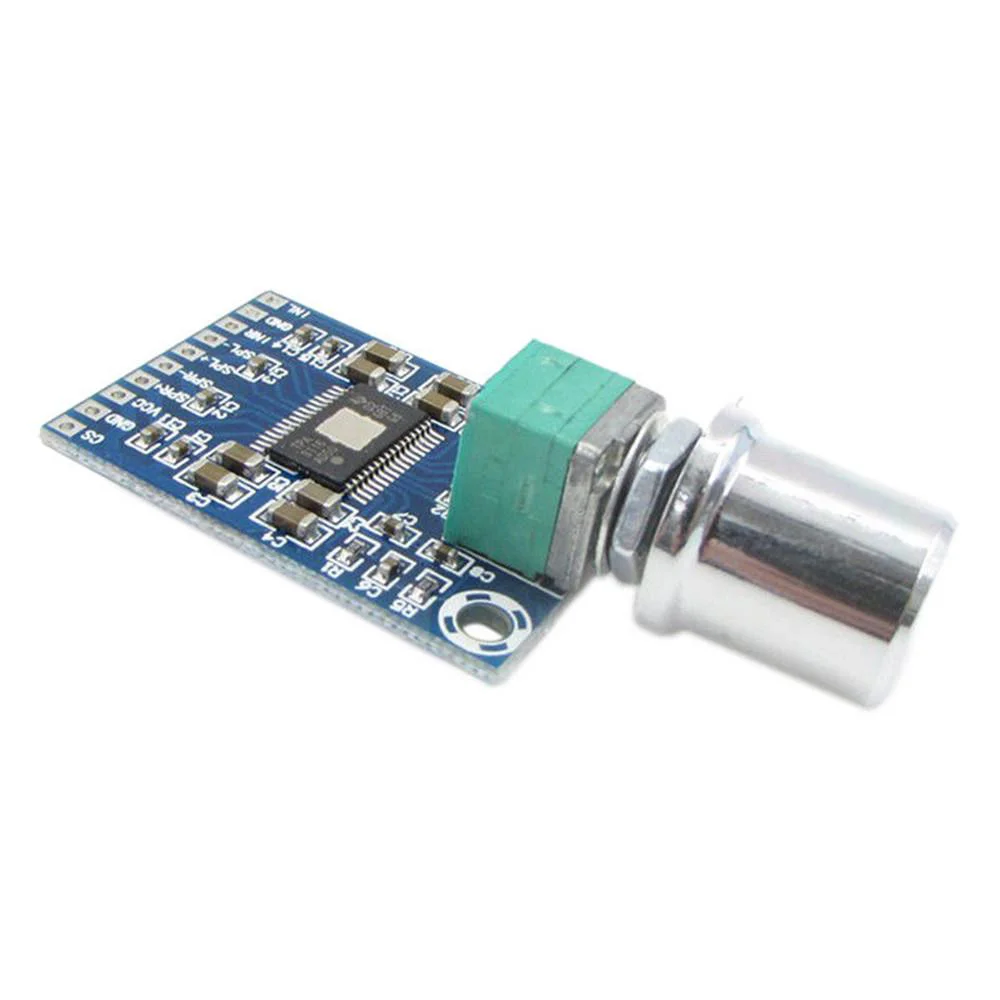

XH-M564 TPA3116D2 DC 12V-24V 2x50W Dual Channel Mini Digital Amplifier D Class 50W+50W

XH-M564 TPA3116D2 DC 12V-24V 2x50W Dual Channel Mini Digital Amplifier D Class 50W+50W is a small circuit board or module that incorporates the TPA3116D2 digital audio amplifier chip. This module is designed to be used as a component in larger audio systems, rather than as a standalone amplifier.

The module is capable of accepting a DC power input in the range of 12V to 24V, and can produce up to 50 watts of power per channel, for a total of 100 watts. It has two channels, which means it can power two separate speakers or audio outputs at the same time.

The amplifier uses a Class D design, which is known for its efficiency and ability to produce high-quality audio with minimal power consumption. This makes it ideal for use in portable audio systems, where battery life is a concern.

The TPA3116D2 DC 12V-24V 2x50W Dual Channel Mini Digital Amplifier D Class 50W+50W Module is a popular choice for DIY audio enthusiasts who want to build their own audio systems. It is relatively easy to integrate into a larger system, and provides high-quality audio output in a compact and efficient package. It can extend the battery life, which makes it well-suited for portable applications.

Features :

• Dual-channel stereo, high output power (50w + 50w power @ 12V ).
• Good sound quality.
• Double panel wiring solves crosstalk.
• Supermini design allows it to be easily placed in a variety of digital products.
• Filterless, Low Quiescent Current and Low EMI.
• Superior Low Noise.
• Short Circuit Protection.
• Thermal Shutdown

Specifications:

• Operating Voltage (VDC): 12 ~ 24
• Max Gain: 36 dB
• Current Handling Capacity (A): 3
• Efficiency: >90%
• Amplifier IC: TPA3116D2
• Load: Can direct drive 4 or 8 ohm small speakers.
• Length (mm): 55
• Width (mm): 37.2
• Height (mm): 13
• Weight (gm): 10

Application :

• Bluetooth Stereo Audio hands-free/headsets
• In robots that speak or generate sounds to indicate activities
• Portable Speakers
• LCD Monitors / TV Projectors
• Arduino or Raspberry Pi Game Machines
• Speaker Phones

Package Includes :

• 1 x TPA3116D2 DC 12V-24V 2x50W Dual Channel Mini Digital Amplifier D Class 50W+50W
