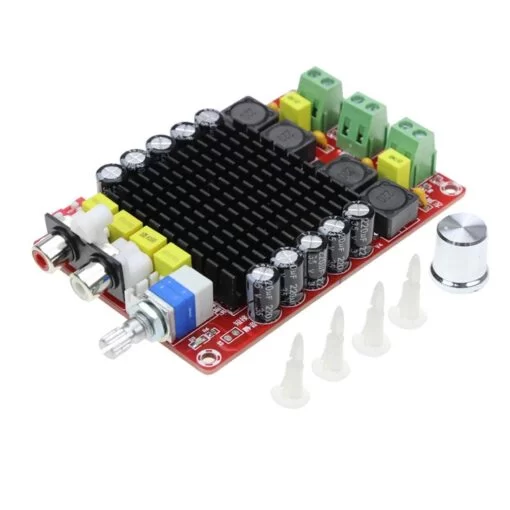

Build your own DIY music system with XH-M510 TDA7498 DC14-32V High Power Digital Class D Power Amplifier Board to create power 200 watts of sound output.
This amplifier comes with 4 different levels of gain adjustment (21.6dB,27.6dB,31.1dB,33.1dB) to choose the best-suited gain output to your speakers. The module has two stereo channel output with 100w output per channel. It uses differential input to reduce common-mode noise significantly and additionally it has the pattern of the fault and silent mode With intelligent protection function and overheating protection function.
Features:
- Dynamic Operating Voltage: DC 14-32 Volt
- Powerful 200-watt output
- Easy Plug and Play operation
- Intelligent Overcurrent and overheating protection function.
Specifications:
|
Model |
XH-M510 TDA7498 |
|
Input Voltage Range (VDC) |
15 ~ 32 |
|
Output power |
100W+100W |
|
Output impedance |
4-8Ω |
|
Amplifier Type |
Class D |
|
Harmonic Distortion |
Po=1W/0.05% |
|
Frequency Response Range |
18-100KHz |
|
Switching Frequency |
360KHz |
|
Signal to noise ratio |
110 dB |
|
Length (mm) |
96 |
|
Width (mm) |
64 |
|
Height (mm) |
15 |
|
Weight (gm) |
90 |
Package Include:
- 1 x XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
