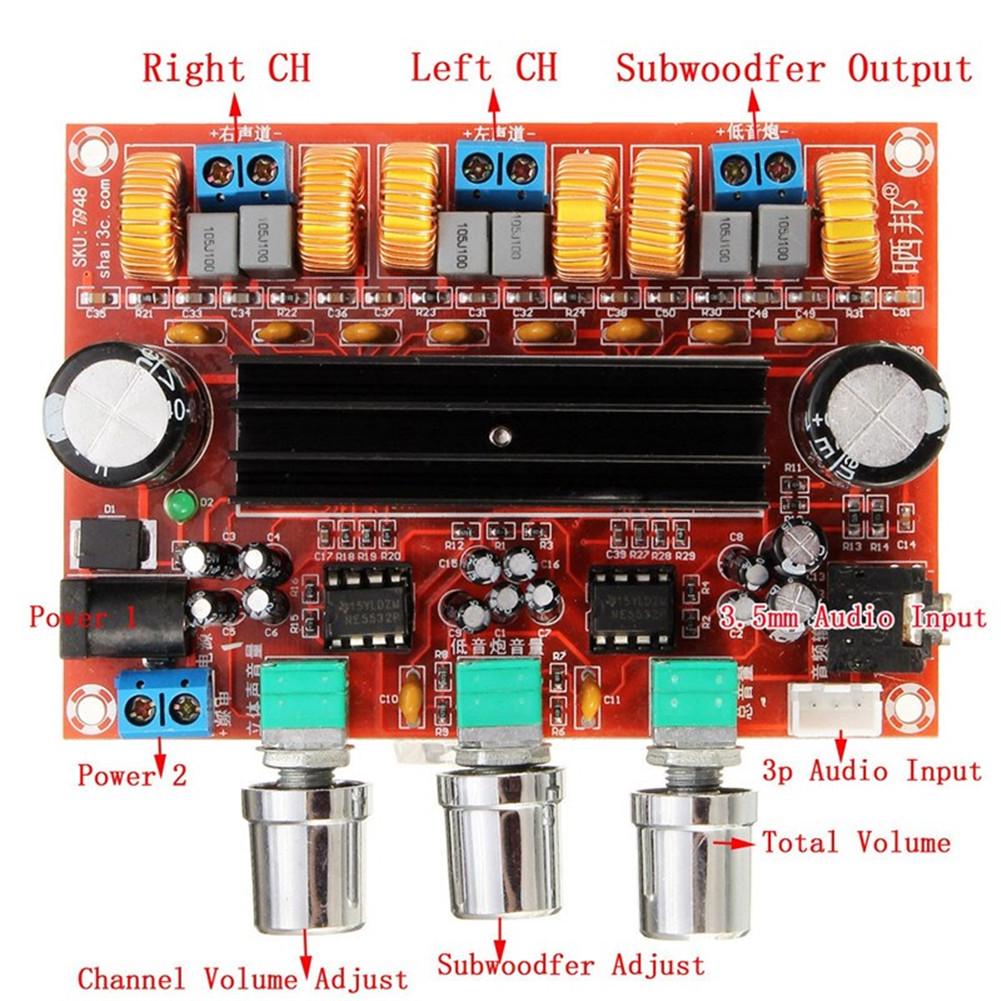

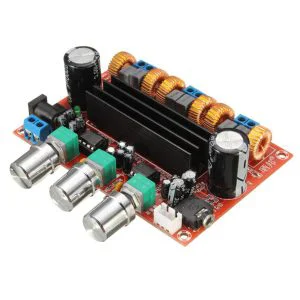

XH-M139 DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer 2*50W Power Amplifier Board adopts two high-quality TPA3116D2 digital amplifier chips. Sound quality is very good, high efficiency and amplifying power. 50W x 2+100W 2.1 channels (left/right channel and subwoofer channel), high efficiency and low-heat. Users can adjust the volume by themselves easily. It is powered by DC 12-24V, wide input voltage.
Features:
- Adopts two high-quality TPA3116D2 digital amplifier chips.
- Good sound quality, high efficient device and power amplifying feature.
- 50W x 2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
- Powered by DC 12-24V, wide input voltage.
- User can adjust the volume by themselves easily.
- Applicable speaker impedance: 4-8 ohm.
- Just connect the power supply and loudspeaker box, enjoy pure digital music!.
Specifications:
|
Supply Voltage |
DC 12-24V |
|
Main Chip |
TPA3116 x 2 |
|
Channel Type |
3 Channels (Left Channel, Right Channel, Subwoofer) |
|
Output Power |
50W x 2 + 100W x 1 Subwoofer |
|
Output Match |
4-8 ohm |
|
Audio Output |
Terminals |
|
Frequency Response Range |
14-100KHz |
|
SNR |
100dB |
|
Switching Frequency |
1.2MHz |
|

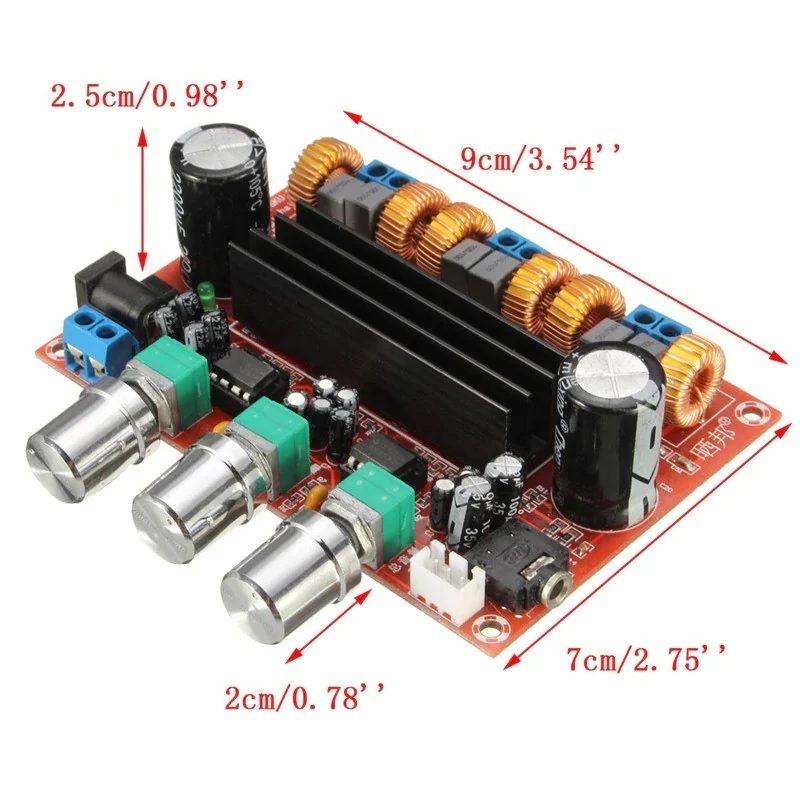

Size (LxWxH) mm |
100 x 70 x 30 |
|
Weight |
113g |
Package includes:
- 1 x DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board
