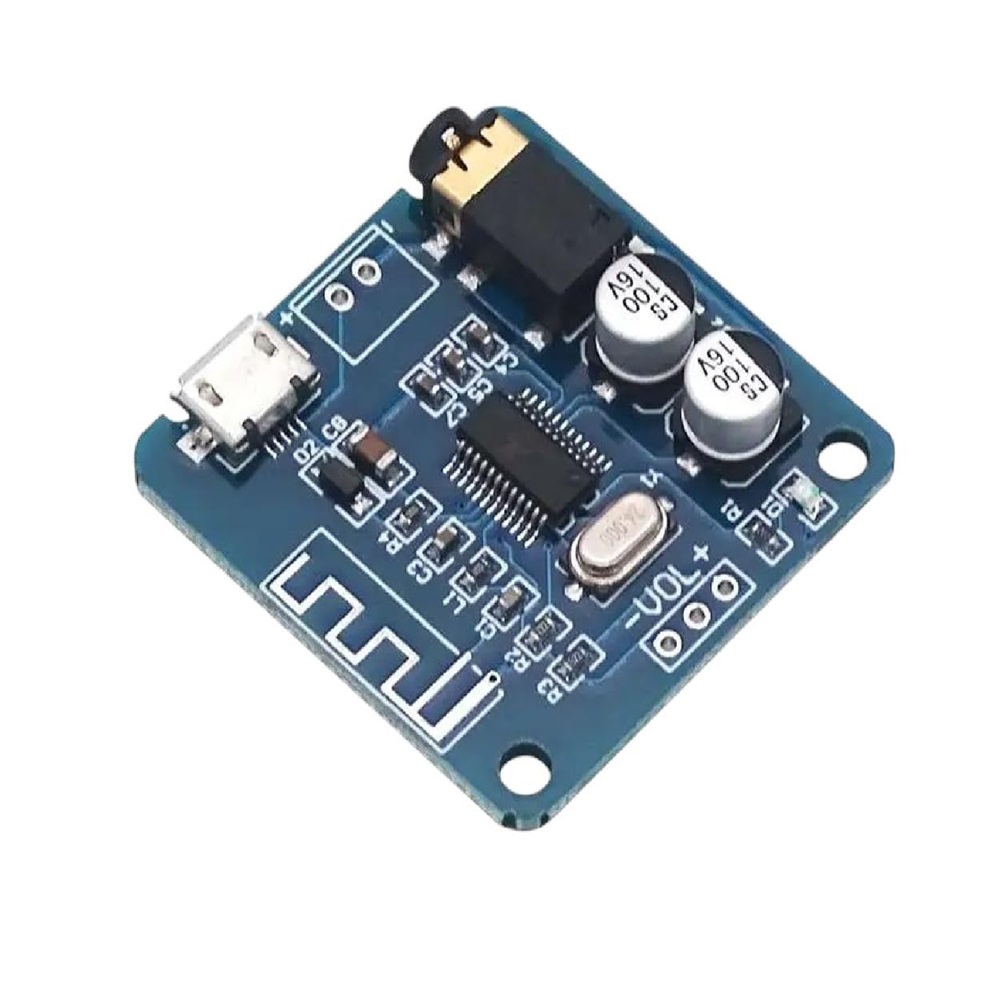

XH-A252 Digital Bluetooth 5.0 MP3 Audio Receiver Board with 3.5mm AUX Jack Output

The XH-A252 Digital Bluetooth 5.0 MP3 Audio Receiver Board enables wireless audio streaming with high fidelity. XH-A252 featuring Bluetooth 5.0 for stable, long-range connections up to 15-20 meters, this compact module supports common audio formats including APE, FLAC, MP3, WAV, and WMA. With a standard 3.5mm AUX output, it easily connects to power amplifiers or speakers, turning wired systems into modern wireless audio devices powered by a 5V DC supply.

Features:

• Bluetooth 5.0 audio module for enhanced wireless transmission and stable connections up to 20 meters (depending on environment).
• Standard 3.5mm AUX jack audio output for versatile connectivity.
• Supports popular audio formats: APE, FLAC, MP3, WAV, WMA.
• Powered by DC 5V/1A supply (Micro USB).
• Compact size measuring approximately 35 x 35 x 7.2 mm.
• Adjustable volume control by shorting wires.
• Operating temperature range: -20℃ to 85℃.
• Operating humidity range: 5% – 95% RH.
• Includes voice prompts for pairing and power status.

Specifications:

• Model Number: XH-A252 Bluetooth Board
• Bluetooth Version: 5.0
• Audio Output: 3.5mm AUX Jack
• Power Supply: DC 5V/1A (Micro USB)
• Operating Range: Up to 15-20 meters
• Supported Formats: APE, FLAC, MP3, WAV, WMA
• Module Dimensions 35 x 35 x 7.2 mm
• Weight Approx.: 6 grams

Application:

• Upgrade wired audio systems for wireless streaming.
• Use in Bluetooth speaker DIY projects.
• Connect to car audio systems for Bluetooth streaming.
• Wireless audio receiver for home audio and amplifiers.
• Suitable for DIY audio electronics, Bluetooth music players, and amplifier connectivity.

Package Includes:

• 1 x XH-A252 Digital Bluetooth 5.0 MP3 Audio Receiver Board with 3.5mm AUX Jack Output
