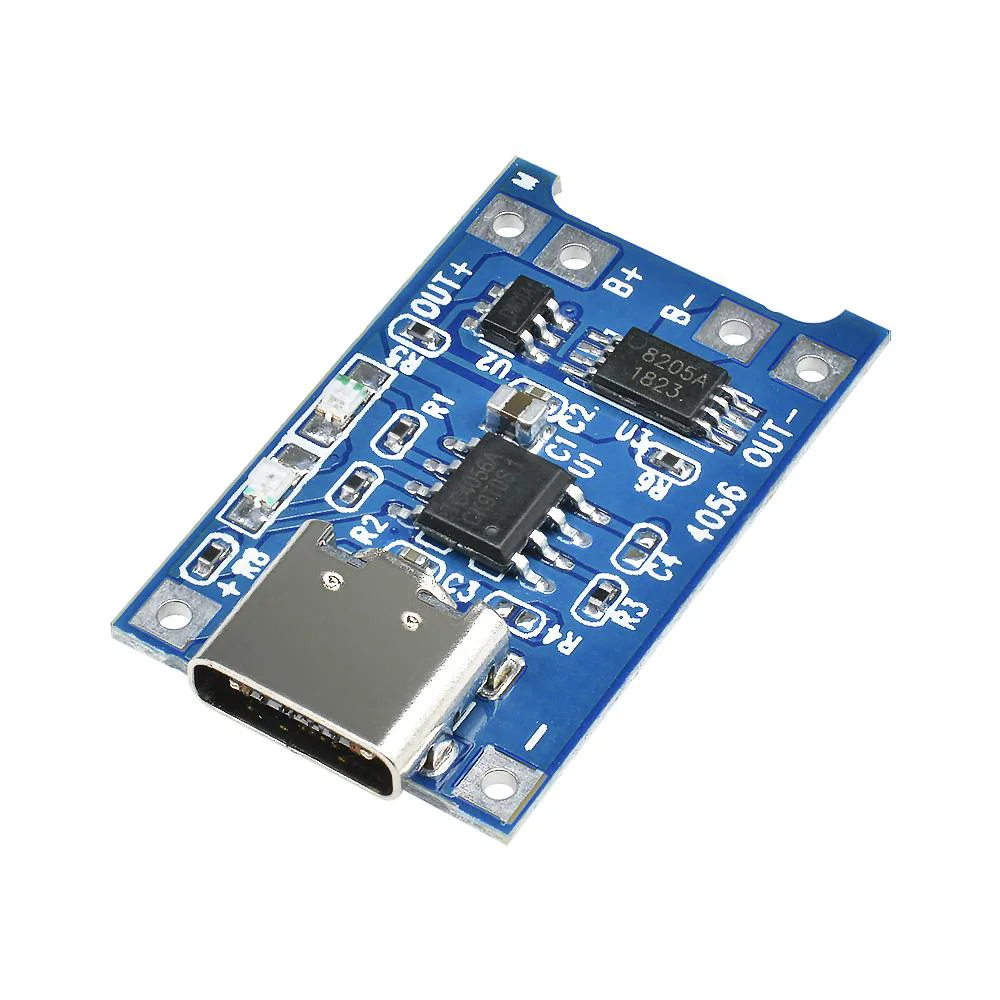

TP4056 1A Li-ion lithium Battery Charging Module – Type C

This TP4056 1A Li-ion lithium Battery Charging Module – Type C is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC, this module will offer 1A charge current. The Li-ion Cell Charger/Monitor module used for this Battery pack solution is based on TP4056 1A Standalone Linear Li-lon Battery Charger with Thermal Regulation chip.

The TP4056 USB C Li-ion charger board is a complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the TP4056 ideally suited for portable applications. The TP4056 protection charging board can work with USB and wall adapter.

No blocking diode is required due to the internal PMOSFET architecture and have prevent to negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.

TP4056 Type C charging module has other features that include current monitor, under voltage lockout, automatic recharge and two status pin to indicate charge termination and the presence of an input voltage.

Features:

• Input interface: Type c USB
• Size: 2.5*1.65 cm
• Charge cut-off voltage: 4.2V +/- 1%
• Battery overcharge lifting voltage: 4.00V
• Battery discharge termination voltage: 3.2V
• Battery: over-current protection current 3A
• Maximum charging current output: 1A
• The battery discharge protection voltage: 3.0V
• The battery overcharge protection voltage: 4.28V
• The input voltage: 4.35-6V (recommended voltage 5V)

Package Includes:

• 1 x TP4056 Type C 1A 5V Li-Ion Battery Charge/Discharge Protection Module
