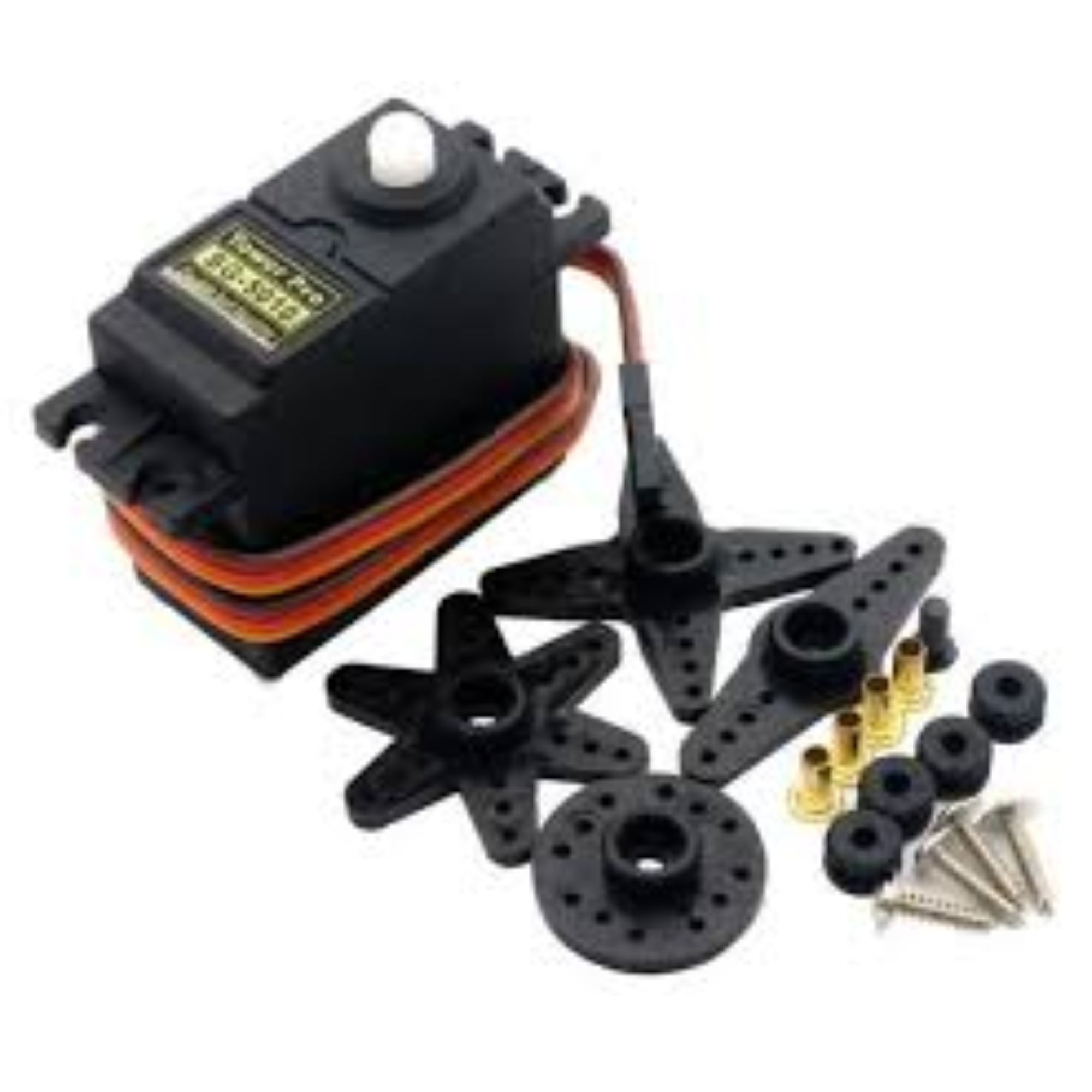

TowerPro SG-5010 Standard Servo Motor – 180 Degree, 6.5 kgcm gives value to your money. This SG-5010 servo is also known for its high specs at a very affordable price to everyone!!!
It equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear servo motor adds on unnecessary weight, so we suggest using this lightweight plastic gear servo motors. It also equips high-quality bearings which ensure smooth and reliable operations.
- RED – Positive
- Brown – Negative
- Orange – Signal
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
- servo arms &screws included and fit with Futaba servo arm
- CE &RoHS approved
Specifications :
|
Model |
SG5010 |
|
Weight(gm) |
40 |
|
Operating Voltage |
4.8 – 6.6 V |
|
Operating Speed @4.8V |
0.20sec/60° |
|
Operating Speed @6.6V |
0.16sec/60° |
|
Stall Torque @4.8V |
5.5 kg-cm |
|
Stall Torque @6.6V |
6.5 kg-cm |
|
Operating Temperature (°C) |
0 to 55 |
|
Dead Band Width |
1 μs |
|
Gear Type |
Glass Fiber |
|
Rotational Degree |
180 |
|
Servo Plug |
JR |
|
Cable Length |
32 mm |
|
Length (mm) |
38 |
|
Width (mm) |
20 |
|
Height (mm) |
40 |
Package Includes :
1 x TowerPro SG-5010 standard Servo and Accessories
