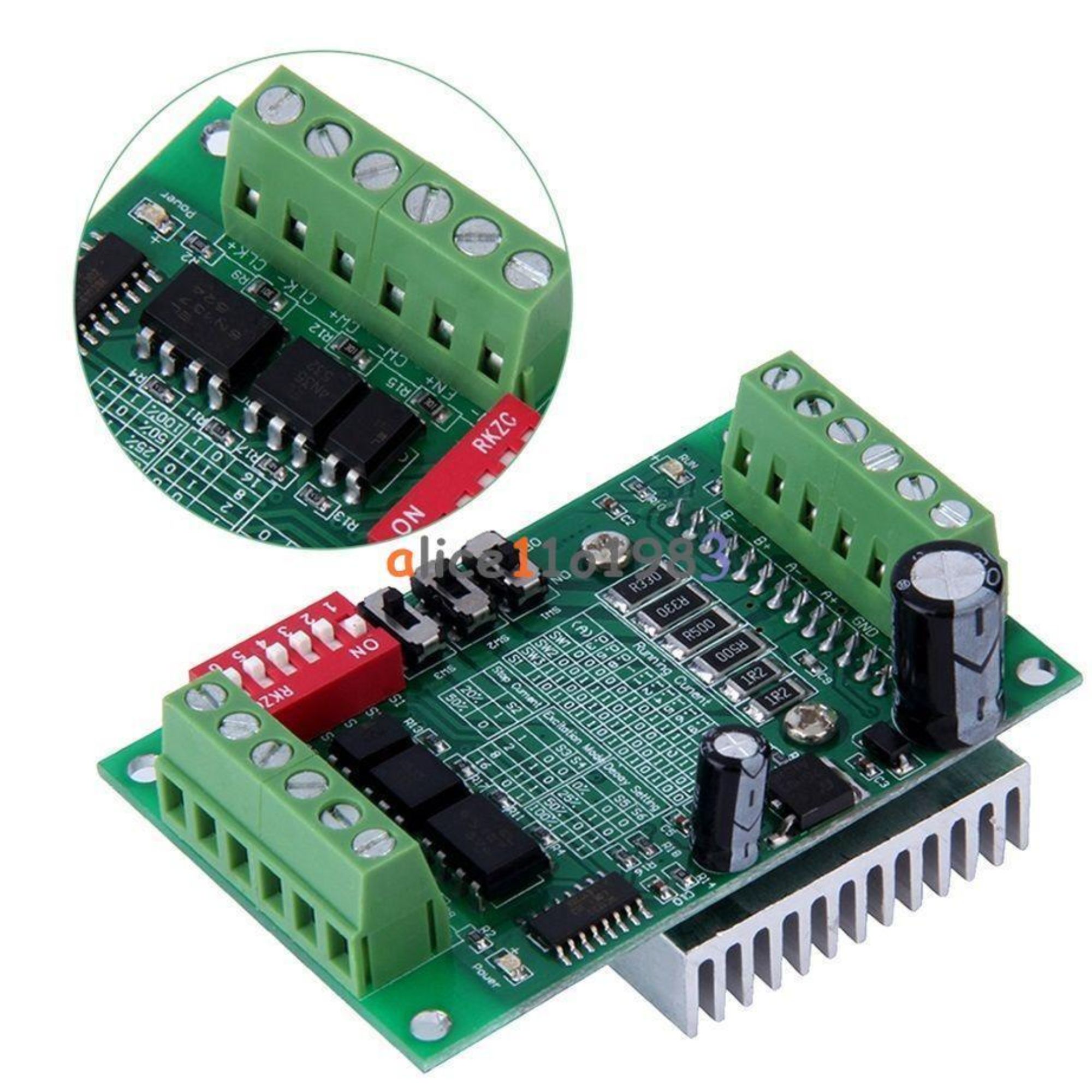

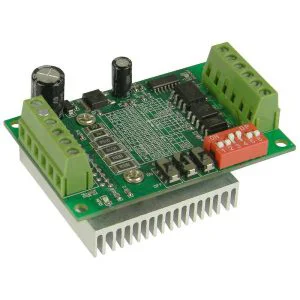

Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance. For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function. 6N137 high-speed optical coupling, guarantee high speed without losing step.
- Very easy to use, no instructions, all of use are marked on the board
- With large heat sink to ensure good heat dissipation
- Input signal high-speed optocoupler isolation, guarantee not losing steps
- Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
- Attenuation model adjusted for all the motors can be locked when no noise
- Working voltage :DC 10V-35V. Recommend Switching Power Supply DC24V
- 6N137 high-speed OptoCoupler , to ensure a high speed without step out.
- New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
- Rated output: ? 3A ,peak 3.5A.
- For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
- Automatic half-decay.
- Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
- Volume: 50 x 75 x 35 ( MM)
- the current level adjustable to meet your various application needs.
- the Automatic half-decay adjustable.
- 6N137 high-speed optical coupling, to ensure a high speed not step out.
- thick tooth radiators, good heat dissipation.
