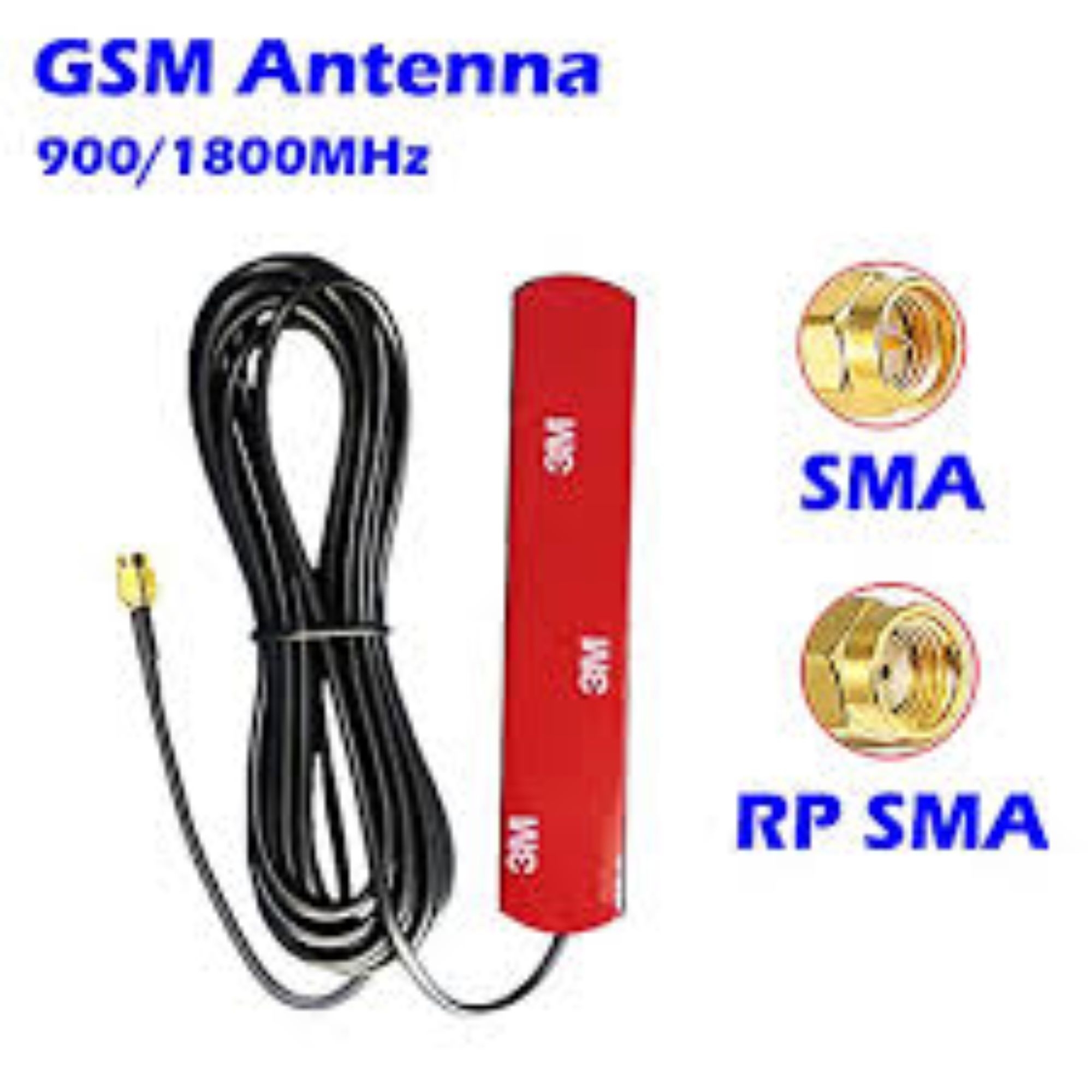

Sticker GSM Patch Antenna 3dbi – 3 meter Wire with 3M Sticker on back

This is a Sticker GSM Patch Antenna 3dbi – 3 meter Wire with 3M Sticker on back, which make it easier to attach to any surface. The wire of the antenna is of 3 meter length, which makes it suitable for outdoor or external use. It has high quality SMA Male Connector on end.

The antenna body is plastic molded, therefore, removing any change of conducting non signals to your circuit. It supports GSM 850/900/1800/1900 Mhz bands.

it provides reliable signal reception for GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, and 2-way pager Re-Flex applications. The antenna comes with a 3-meter cable and a male SMA connector for easy connection to your cellular module.

Features:

• A Quad-band antenna for embedded cellular devices
• GSM 3DBI Sticker Antenna (Patch Antenna) 3M cable will allow you to connect your cellular module to the outside world
• Operates on four frequencies
• Comes with a 3M adhesive backing for mounting
• Standard male SMA terminated.

Specifications:

• Quad-band: 850/900/1800/1900MHz and 2.4GHz
• For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
• Size: 115x22x4mm

Electrical Properties:

• Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz
• Impedance: 50 Ohm nominal
• VSWR: <2.0 : 1
• Gain: 3.5dBi
• Radiation: Omni
• Polarization: Vertical
• Wave: Half Wave Dipole

Mechanical Properties:

• Connector SMA (Male) standard
• Cable: RG174
• Cable length: 3m
• Over-mold housing: ABS Black
• Mounting: Adhesive backing

Operating Temperature:

•  -40 to +85C

Package Includes:

• 1 x 3DBI GSM Sticker Antenna for Wireless Communication
