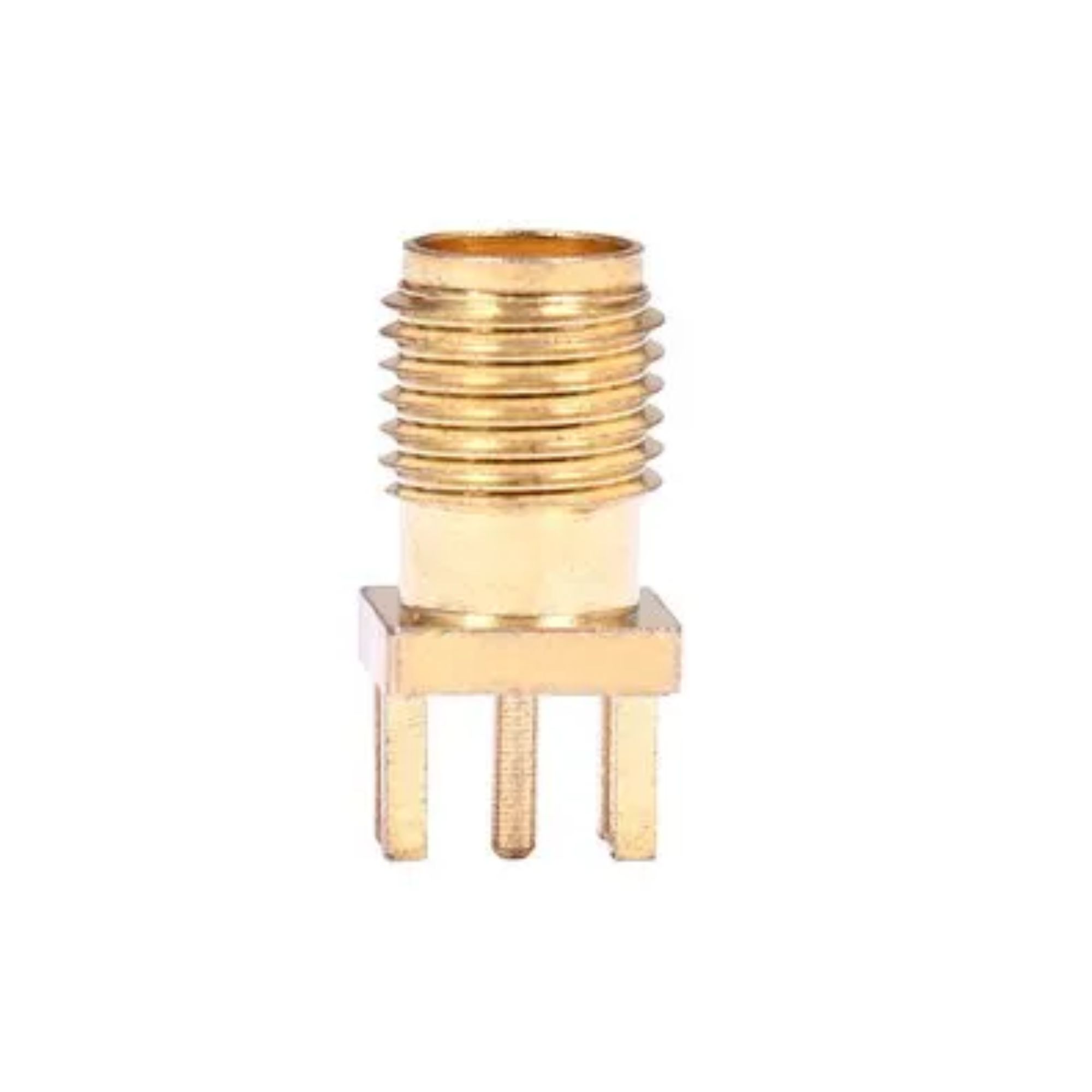

SMA Female Straight Edge PCB Mount Connector for 1.6mm PCB

This SMA Female Straight Edge PCB Mount Connector suitable for use with 1.6 mm thick PCB. Its an SMA Female Connector, and is solderable to the edge of the PCB. It has impedance of 50 Ohms. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

PCB Edge Mountable – SMA-Female RF connector for 1.6mm Thick PCB is perfect for prototyping with the GPS and Cellular devices that require an antenna connection. These connectors have a female signal pin and will correctly mate with the original SMA- Male type antennas.

Features:

• SMA Connector, Female,Straight, PCB Connector, Plate Edge Mount, Copper, Gold Plating;
• Excellent electrical performance up to 18GHz with low reflection;
• Thread type coupling mechanism ensure small loss and high security in compact design;

Electrical Characteristics

• Impedance 50 ohm
• Frequency Range: 0~6 GHz
• VSWR: Straight type 1.3max / R/A type 1.5max
• Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
• 750 V rms min. for RG316, RG402
• 500v rms min. for RG178
• Working Voltage:500 V rms max. for RG142, RG405
• 375 V rms max. for RG316, RG402
• 170 V rms max. for RG178
• Center Contact Resistance 6.0 m (Milliohms max.)
• Outer Contact Resistance 2.0 m (Milliohms max.)
• Insulation Resistance 5 x 10 m (Megohms min.)

Mechanical Characteristics

• Coupling: 1/4-36 thread
• Contact Retention: 15 in-lbs min.
• Coupling nut torque: 30 in-lbs. min.
• Durability(mating) 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Temperature Range: -55C ~ +155C
• Vibration: MIL-STD-202 Meth.204
• Corrosion resistance: MIL-STD-202 Meth. 101

Package Includes:

• 1 x SMA Female Straight Edge PCB Mount Connector 1.6mm
