SLA-05VDC-SL-A 4Pin 30A Power Relay
₹65.00 (incl. GST)
Out of stock
Want to be notified when this product is back in stock?
Additional Information
✅ Prices Includes GST (GST Invoice Available)
✅ Free Shipping on Orders Above ₹999
✅ Items on Website is Ready Stock at our Store for Immediate Shipping
✅ Secure Checkout | Trusted Payments
✅ Estimated Delivery?
✅ Free Shipping on Orders Above ₹999
✅ Items on Website is Ready Stock at our Store for Immediate Shipping
✅ Secure Checkout | Trusted Payments
✅ Estimated Delivery?

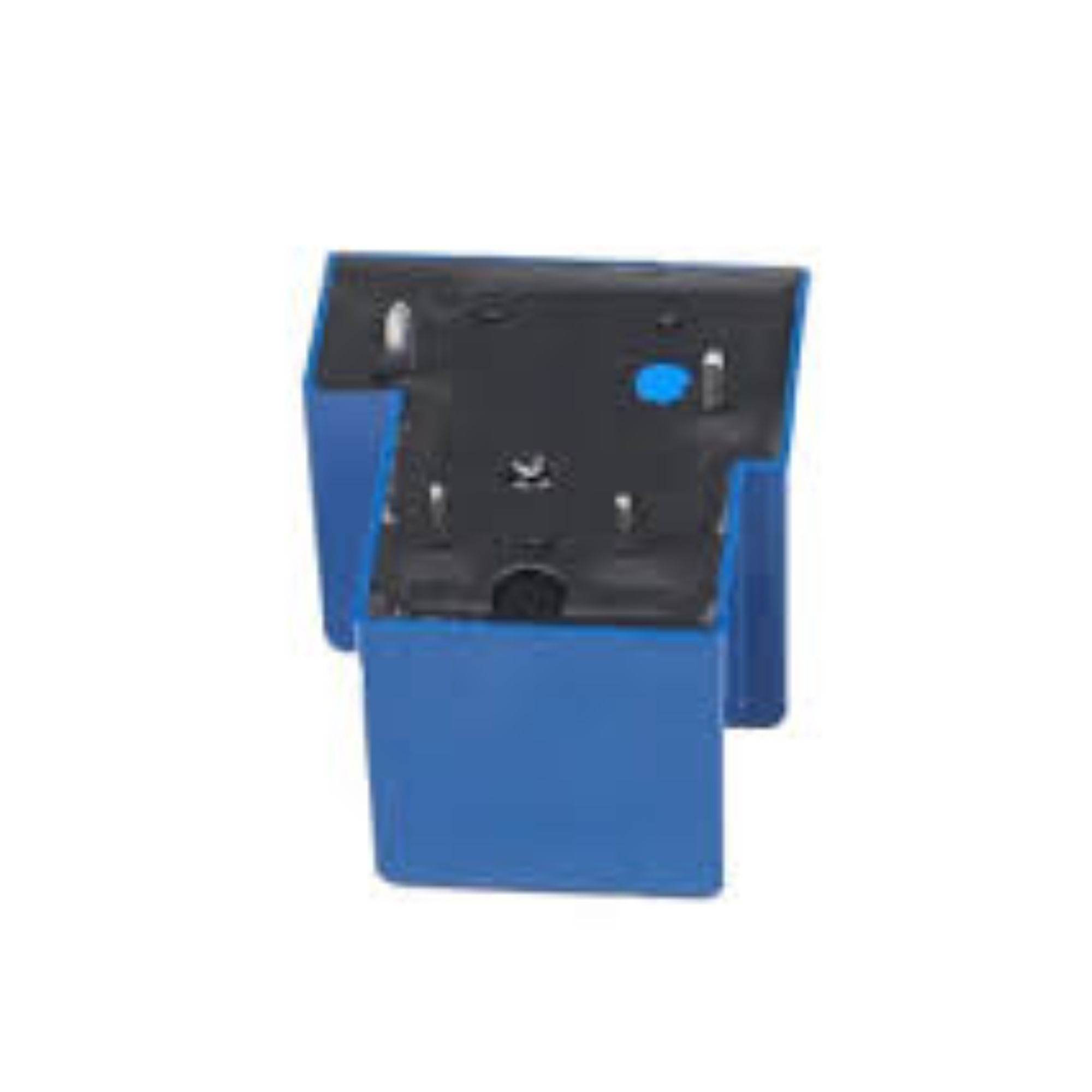

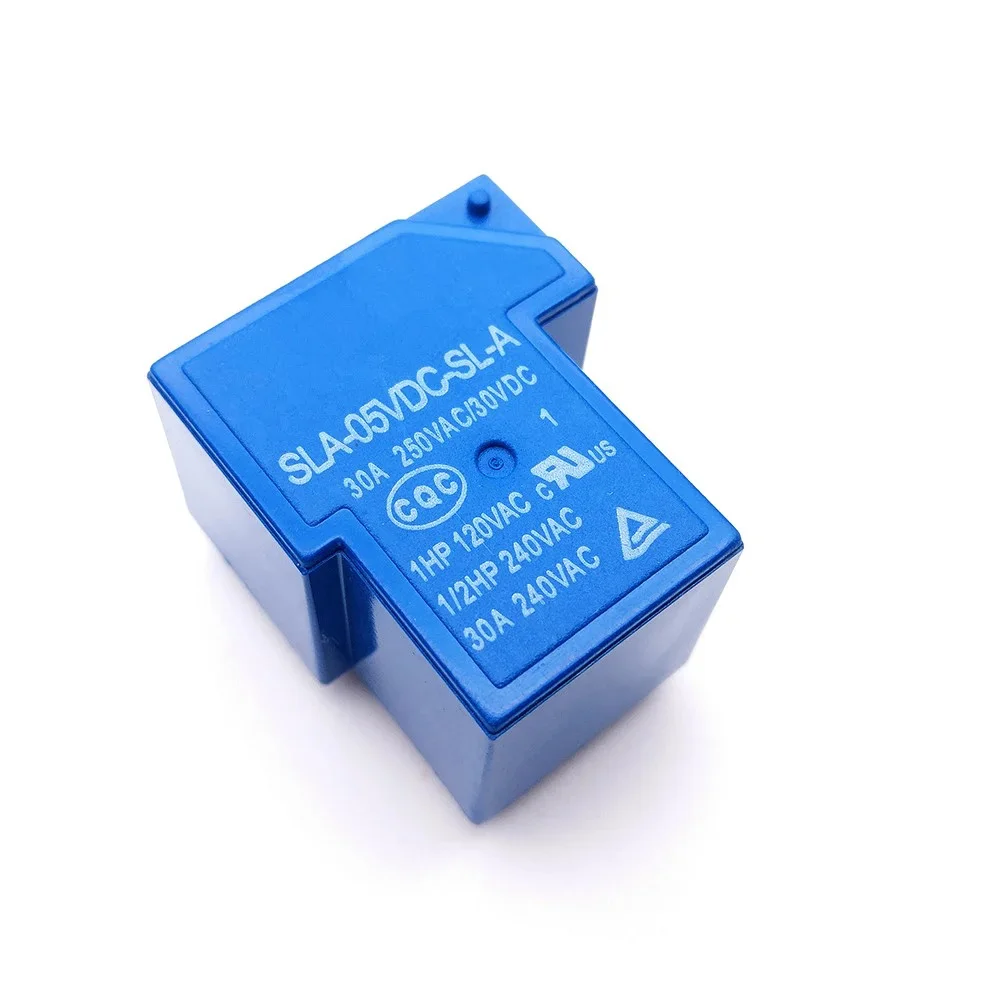

It is an SLA-05VDC-SL-A 4Pin 30A Power Relay. The relay is switched with the help of a small signal from a microcontroller like an Arduino. This relay can be used to drive 30A devices.
Specifications:
- Operating Voltage (VDC): 5
- Supply Current (A): 0.185
- Operating Temperature (°C): -25 to 70
- Opt. Relative Humidity(RH): 45% ~ 85%
- Storage condition (℃): -25 to 70
- Length (mm): 26.85
- Width (mm): 31.6
- Height (mm): 19.5
- Weight (gm): 24
Package Includes:
- 1 x SLA-05VDC-SL-A 4Pin 30A Power Relay
