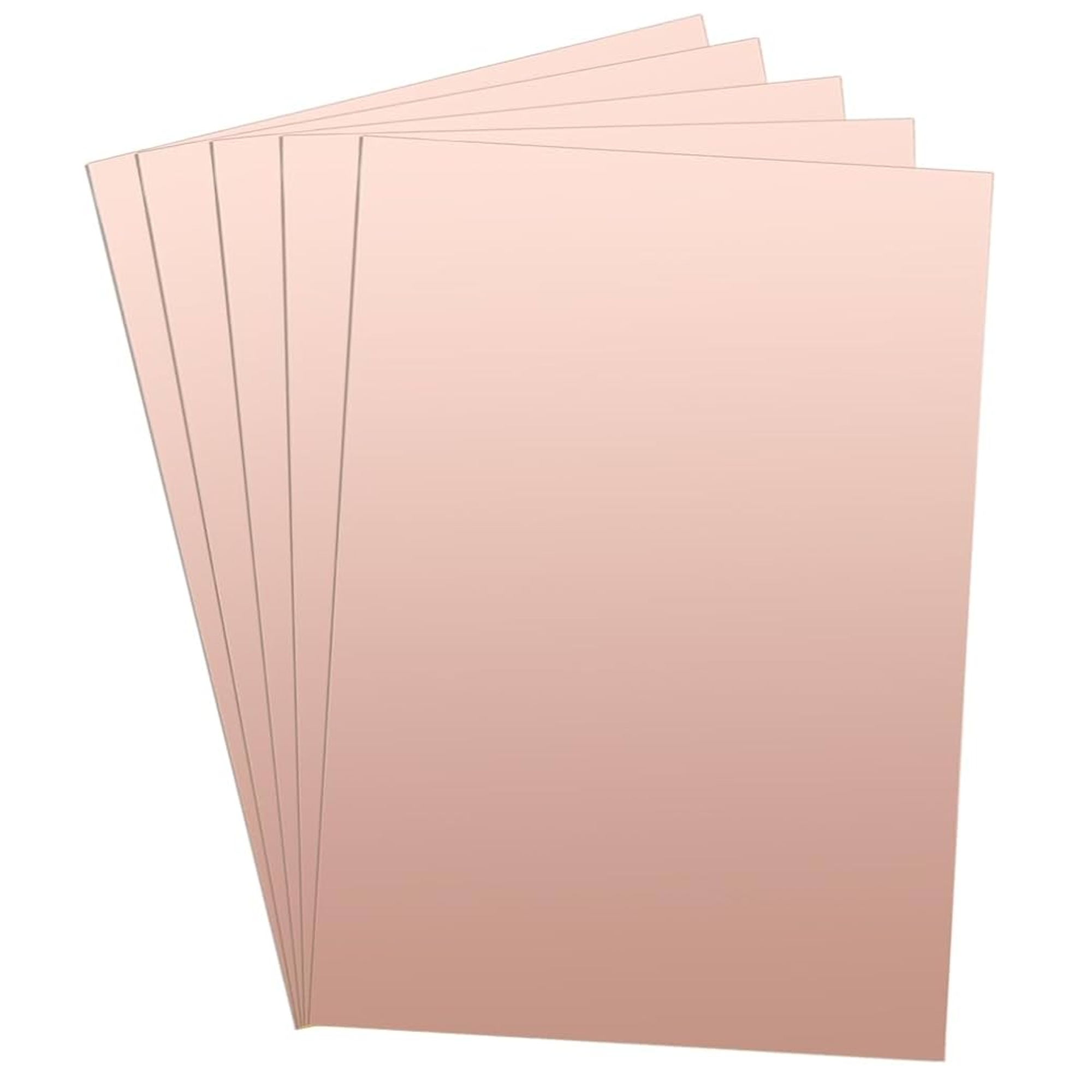

Single Side 10X15cm thickness 1.5mm Copper Clad Printed Circuit Board

Single Side 10X15cm thickness 1.5mm Copper Clad Printed Circuit Board is a glass fiber epoxy resin-based PCB with copper foil on one side. The epoxy glass fiber forms the substrate on which the copper foil is hot pressed only on one side and the other side remains bare.  It has a copper core for strength and the substrate acts as electrical insulation.

The PCB is ideal for prototyping and experimenting.

This PCB can almost be seen in electronic equipment like electronic watches, calculator, computers, communication electronic equipment, military weapon system, etc. As long as there are integrated circuits and other electronic devices, electrical interconnection between them will require the use of this type of PCB.

Features:

• Foil: Copper.
• Ideal for prototyping.

Specifications:

• Dimensions: 10 X 15cm
• Thickness: 1.5mm
• Foil: Copper
• Weight (gm): 40

Package Includes:

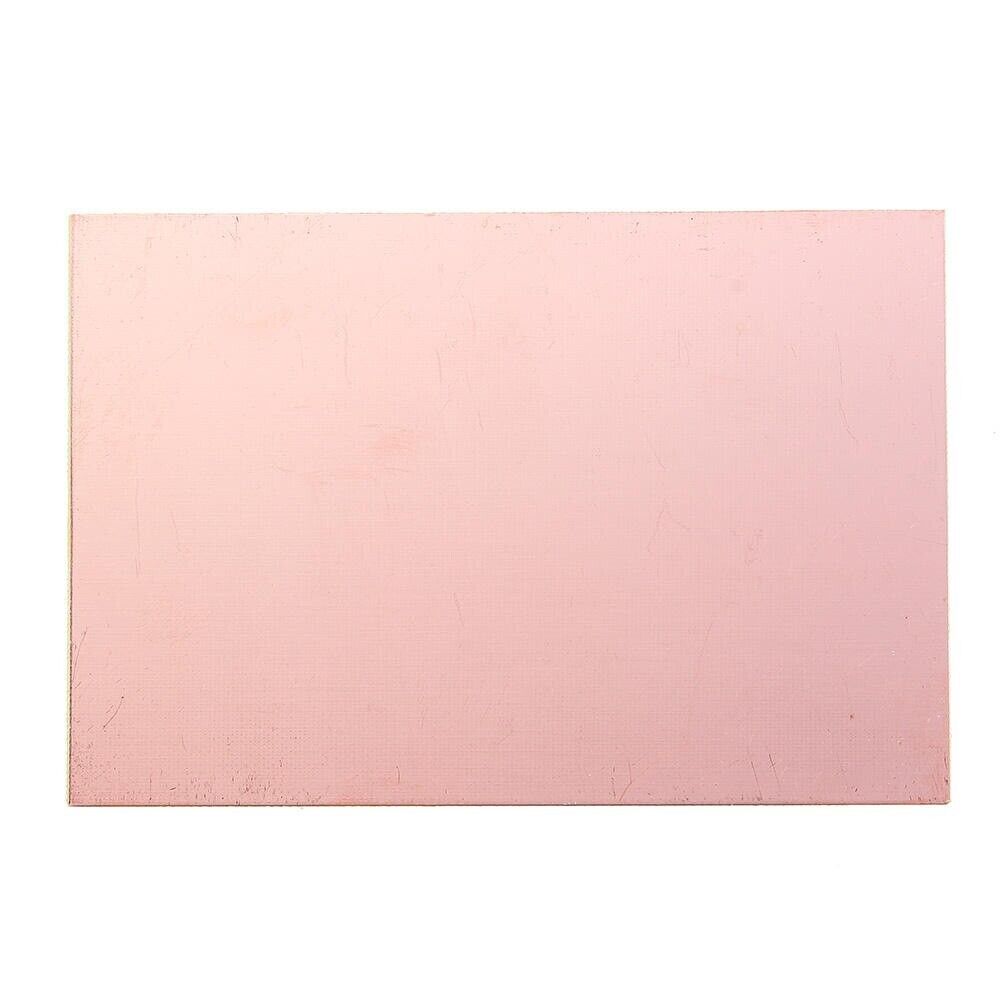

• 1 x Copper Clad Laminate Single Side PCB 10X15cm

Note:

• The PCB may have scratches as it is cleaned before shipping.
