SCT-013-000 100A Non-invasive AC current sensor Split Core Type

SCT-013-000 100A Non-invasive AC current sensor Split Core Type is a current transformer which can be used to measure AC current up to 100 amperes. This Non-Invasive AC Current Transformer has no internal burden resistor, but a transient voltage suppressor limits the output voltage in the event of accidental disconnection from the burden.

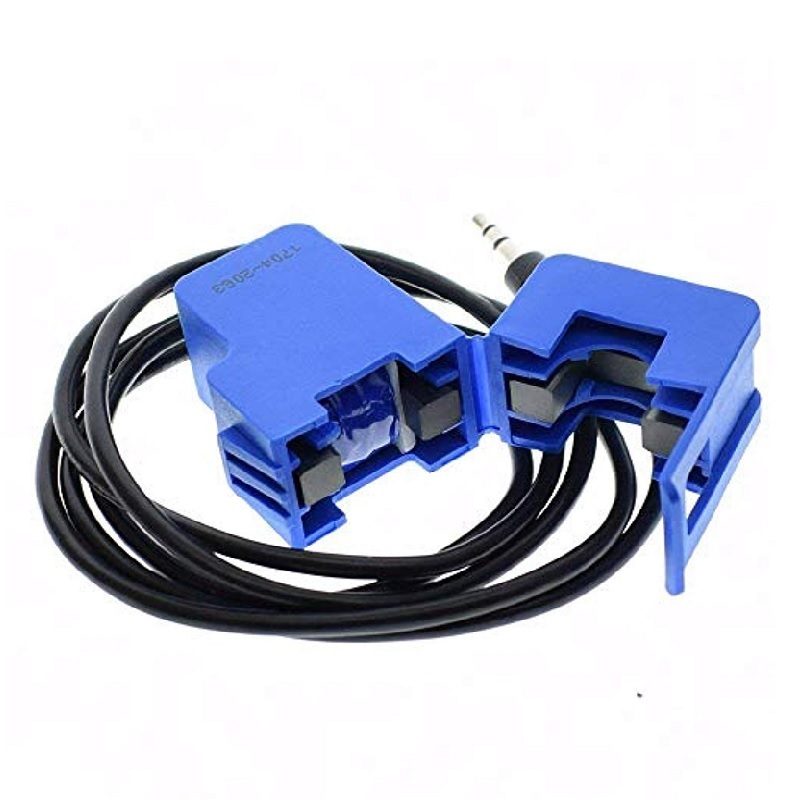

Current transformers (CTs) are sensors are for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The Split Core Current Sensor Clamp such as the SCT-013-000 CT in the picture is particularly suitable for DIY use. Clip this AC Current Measurement Sensor Module straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Like any other transformer, a current transformer has a primary winding, a magnetic core, and a secondary winding. In the case of whole building monitoring the primary is the life or the neutral wire (not both) coming into the building itself and goes through the hole in the CT sensor. The secondary winding comprises many turns of fine wire housed within the casing of the transformer.

Features :

• Non-invasive current transformer
• Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
• Meet UL94-V0 flame retardant properties
• Two form of output current, voltage (voltage output built-in the sampling resistor)
• Non-linearity ±3%(10%-120% rated input current)
• Output – Standard 3.5mm Audio Jack with three core (TRS) plug
• Mechanical Strength: the number of switching is not less than 1000 times
• Safety Index: Dielectric strength (between shell and output) 1000V AC/min
• Switching Angle: 180 Degree
• Capable of developing sufficient voltage to fully drive a 5V input

Specifications:

• Core Material: Ferrite
• External Material: ABS
• Input Current: 100A
• Frequency: 50Hz to 150KHz
• Opening Size(mm): 13×13
• Non-Linearity: ~3 % (10 to 120% of rated input current)
• Dielectric Strength(VAC/1min): 6000
• Weight: 73 grams
• Cable Length: 1 Meter
