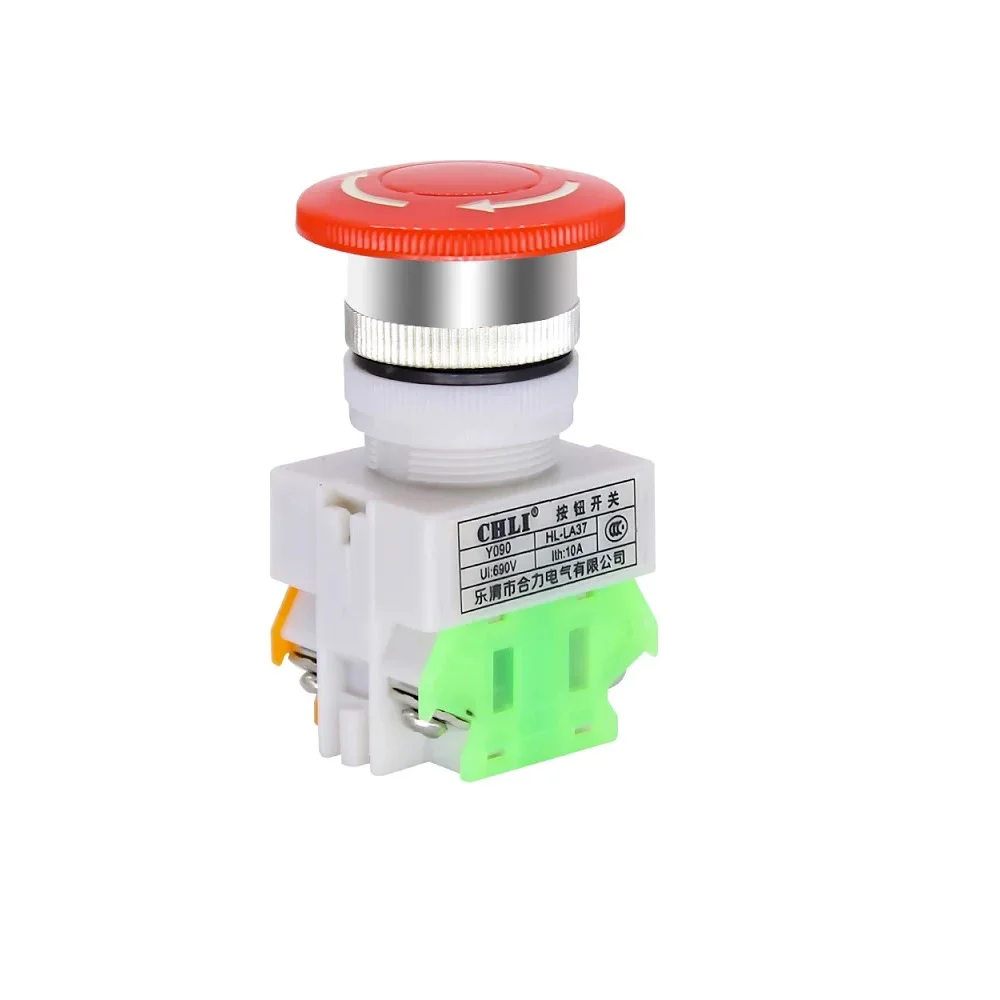

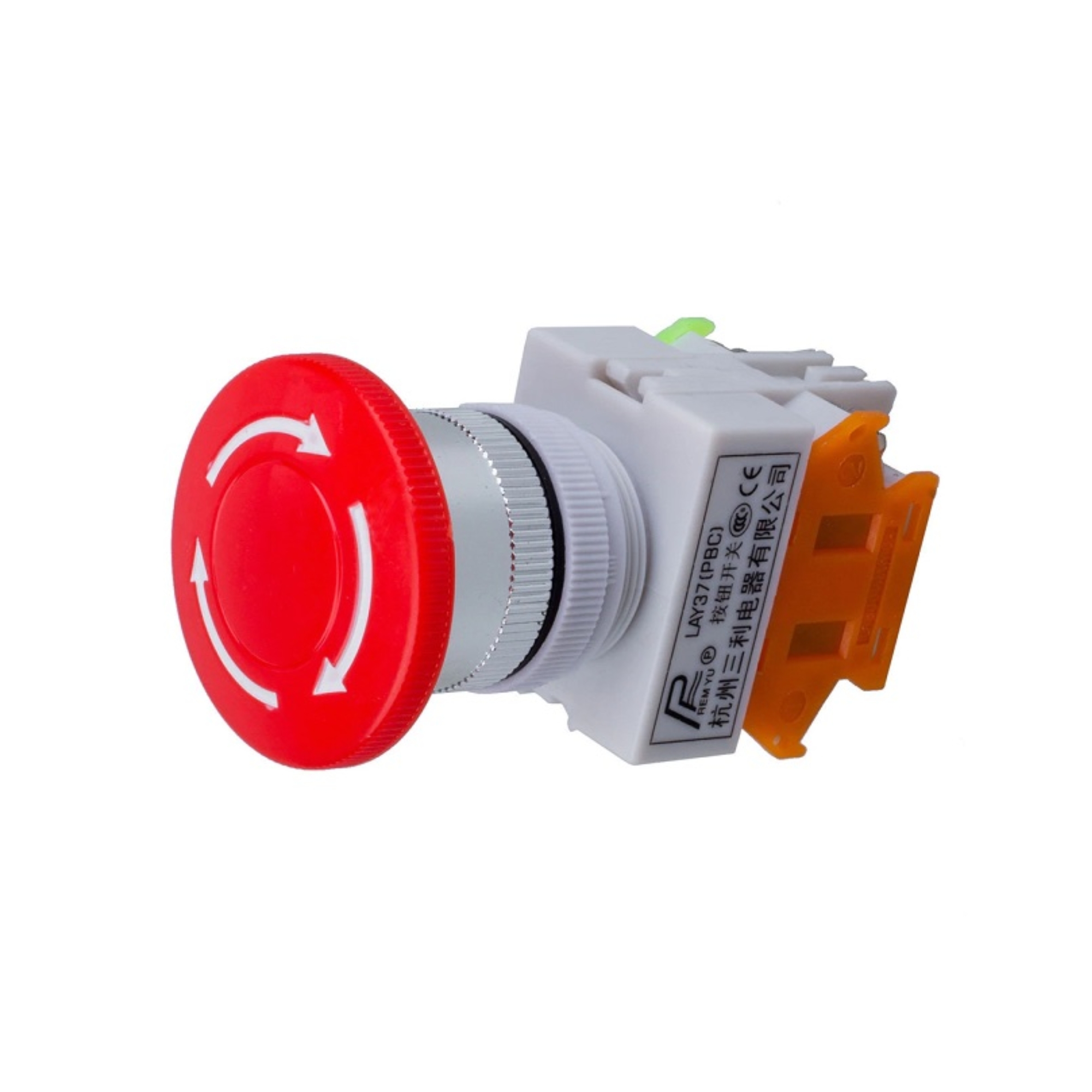

The AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch push button is for Lift, Elevator Latching Self Lock and CNC machines emergency stop. It is made of high-quality material. It has long service life Built-in screw-type connecting cable. Reset by turning the button as the arrows show and don’t turn inversely
Features :
- It has a red mushroom-shaped cap, which is a common design for emergency stop buttons.
- It is a DPST (Double Pole Single Throw) switch, meaning it has two sets of contacts – one normally open (NO) and one normally closed (NC).
- The switch is rated for AC 660V, making it suitable for use in applications with higher voltage requirements.
- It has a current rating of 10A, which means it can handle up to 10 amperes of current.
- This switch is intended for use with equipment like lifts and elevators, where emergency stop functionality is essential for safety.
- It is designed with a latching mechanism, so once it’s pressed, it stays in the off position until manually reset, providing a self-locking feature for added safety.
Specifications:
Rated Insulation Voltage (Ui) |
600V |
Agreed Thermal Current (Ith) |
10A |
Switch Top Diameter |
39 mm |
Switch Mount Neck Diameter |
23 mm |
Material |
Plastic and metal |
Weight (gm) |
50 |
Package Includes:
- 1 x AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch
