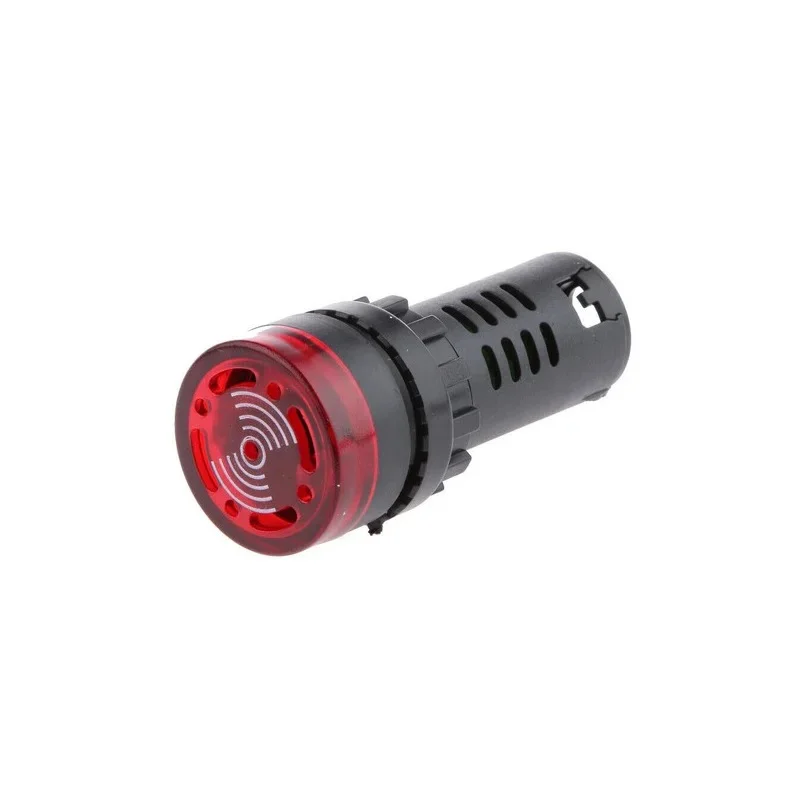

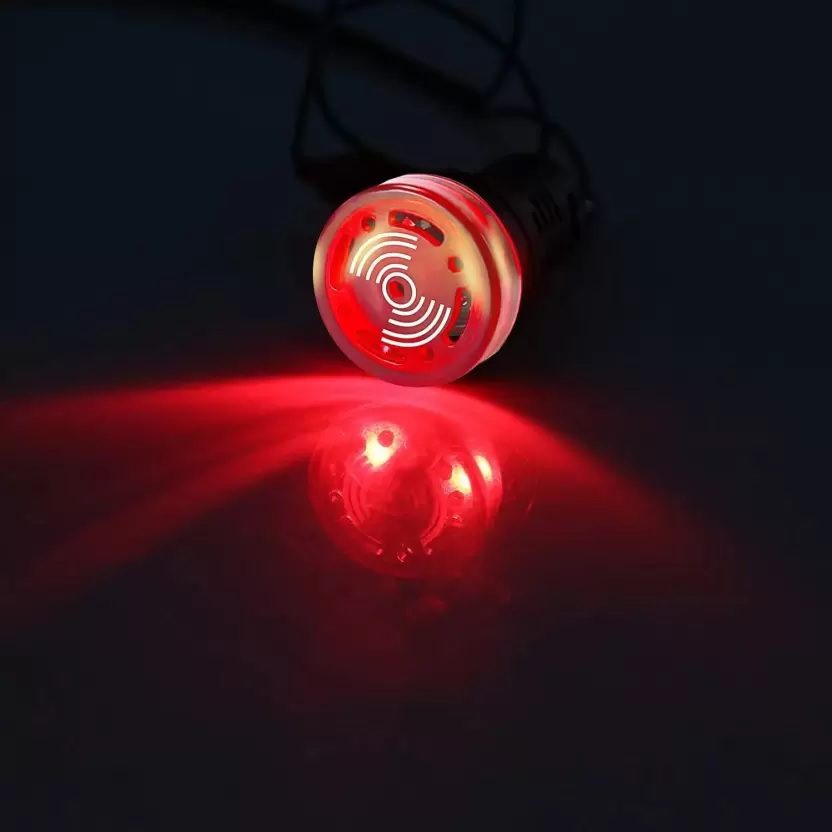

Red AC/DC24V 22mm AD16-22SM LED Signal Indicator Built-in Buzzer

Avoid conventional color bulbs to monitor a phase/line signal, and replace them with these new powerful LED Signal Indicators with Built-in buzzers with various advantages over the old bulbs.

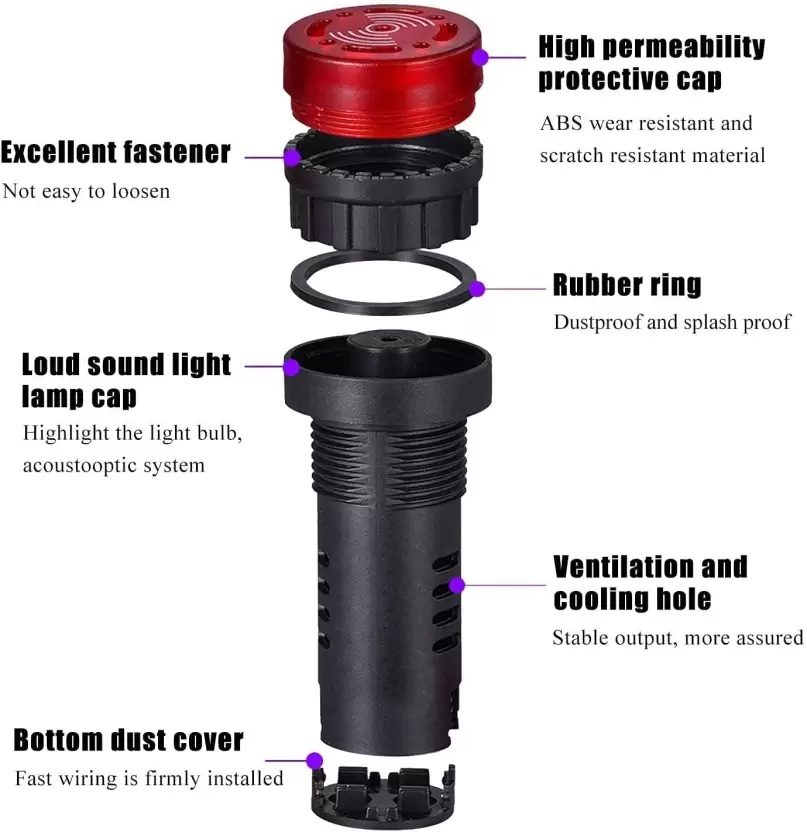

Red AC/DC24V 22mm AD16-22SM LED Signal Indicator Built-in Buzzer uses LEDs as a light source which is energy-saving & Built-in Buzzer, small and compact, and highly durable which adds a systematic and classy look to your control dashboard or signal monitoring spot on any device or chassis. The cover of this pilot indicator is made of PC plastic to provide good shock resistance and can be used as an indication for pilot lights, accident signals, or other power availability check signals in the circuits of telecommunication and electrical apparatus

We have added a full range of this Pilot light indicator with various colors, sizes, and operating voltages.

Features:

• Easy for installation
• Flash with Buzzer
• Good environmental Protections
• Very low Power consumption
• Available in various sizes, colors, and voltage rating

Specifications:

Model No.	AD16-22SM
Operating Voltage(V)	AC/DC24V
Current Consumption (mA)	≤20
Buzzer Sound (dB)	80 (dB)
Body Material	Plastic
Color	Red

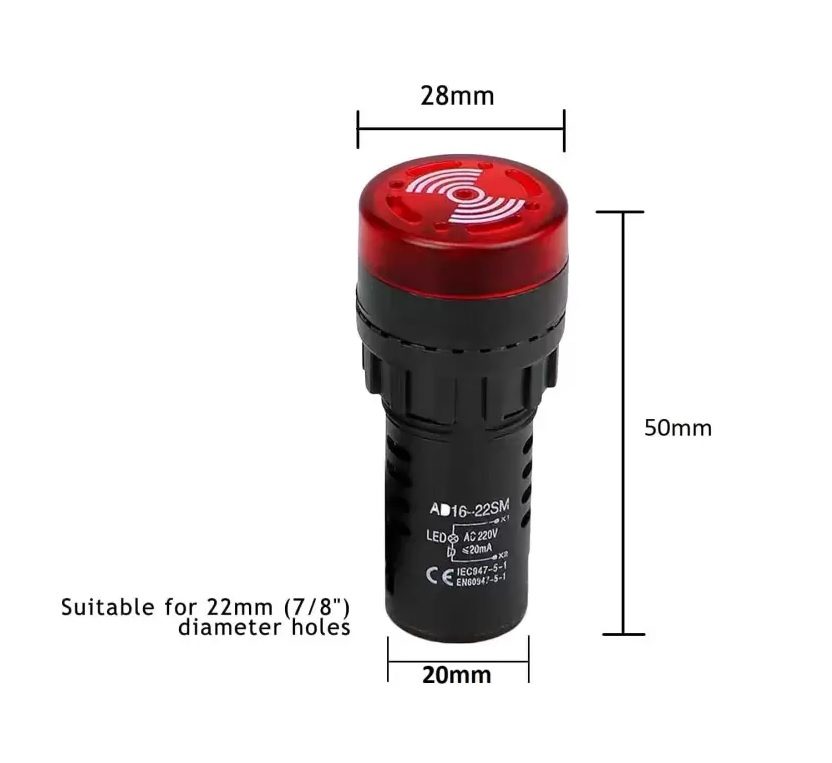

Head Diameter (mm)	28
Mounting Hole Diameter (mm)	21
Weight (gm)	20
Protection Standard	IP65

Package Includes:

• 1 x Red AC/DC24V 22mm AD16-22SM LED Signal Indicator Built-in Buzzer
