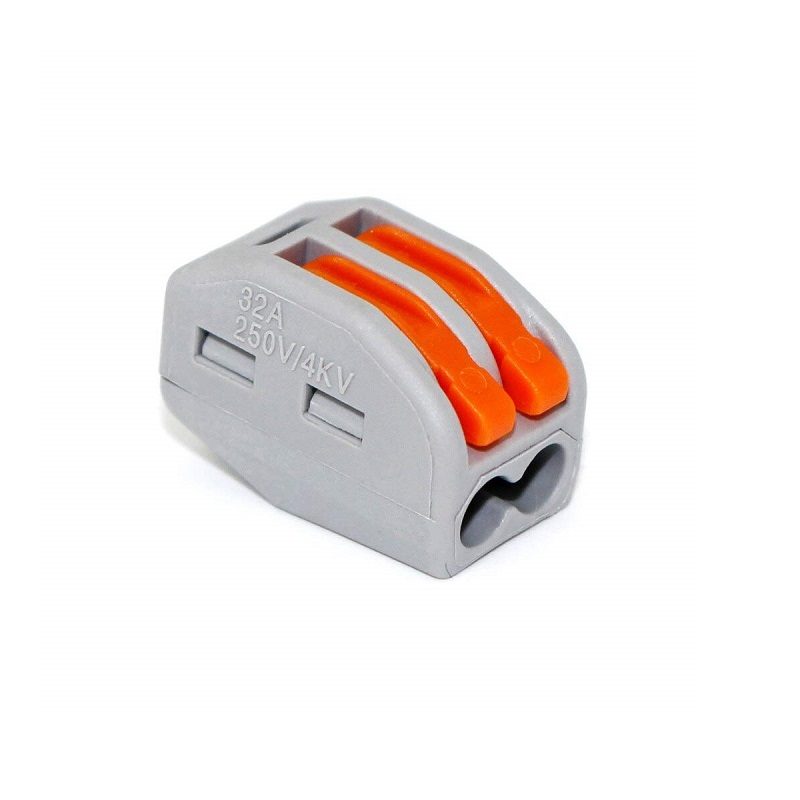

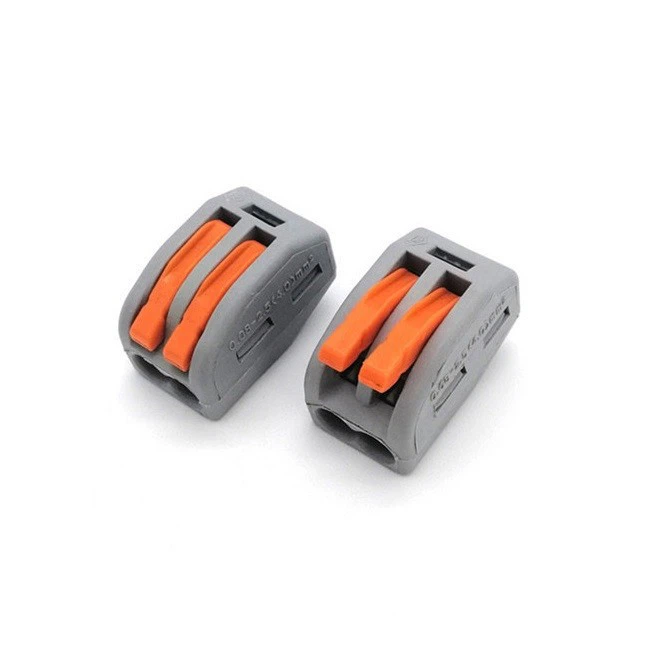

This is a PCT-212 Splicing Connector Terminal 1 In-1 Out Push-In Electrical Terminals for Cable Connection. Featuring a 1-in 1-out lever terminal block, the PCT-212 offers a secure and efficient solution for your cable wire connections. With a terminal block conductor and a maximum voltage rating of 250V, this connector can handle up to 4KW/32A, ensuring a robust and safe electrical connection.

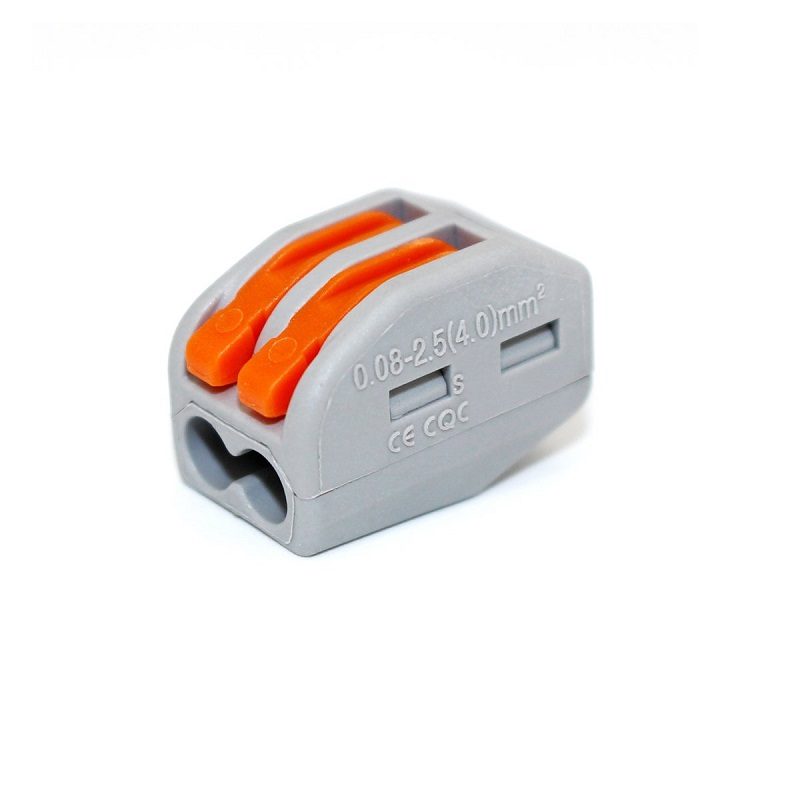

The PCT-212 boasts a wide wiring range, accommodating hard wires ranging from 0.08 to 4mm2 or less, and soft wires ranging from 0.08 to 2.5mm2 or less. Crafted with high-quality materials including PA flame retardant engineering plastic and copper conductive strip, this connector guarantees durability and longevity. Measuring at a compact size of 20×12.5×14.5mm, the PCT-212 is designed to save space without compromising on performance. Its push-in terminal block design and lever wire connector ensure quick and effortless installation, reducing time and effort in your wiring projects.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 2-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Specification:
- Item Type: PCT
- Rated Current (A): 32
- Rated Voltage (V): 250
- Connector Type: Pin
- Insulation Material Type: Nylon
- Gauge: 12
- Discharge Terminal Type: Pin Terminal
- Operating Temperature (°C): -40 to 85
Package Includes:
- 1 x PCT-212 Splicing Connector Terminal 1 In-1 Out
