PCT-211 Guide Rail Type, Quick Connection Terminal 1 In-1 Out

This is a PCT-211 Guide Rail Type, Quick Connection Terminal 1 In-1 Out with Spring Lock Lever for Cable Connection 0.08-4mm2.

This PCT Guide Rail Type Terminal Block Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 2.5mm2 area. This 1 In-1 Out Connector can tolerate the rated voltage up to 400V with an electric current peak of 32A.

Features:

• High-grade Insulative Nylon Material
• Strong Spring Locking Lever
• Nickel Plated Metal Point Inside
• Good Temperature Resistance
• Compact Splicing Connector
• 4-Conductor Terminal Block
• With Operating Levers
• Max. Continuous Service Temperature 85°C

Specifications:

• Item Type: PCT
• Model PCT-211
• Operating Voltage: 220V/6KW/32A
• Rated Current (A) 32
• Rated Voltage (V): 400
• Allowed Wire Size (mm2): hard wire 0.08-4mm2 or less, soft wire 0.08-2.5mm2 or less
• Allowed Wire Size (AWG): 10 ~ 8
• Color: Grey, Orange
• Operating Temperature (°C) -20 to 85

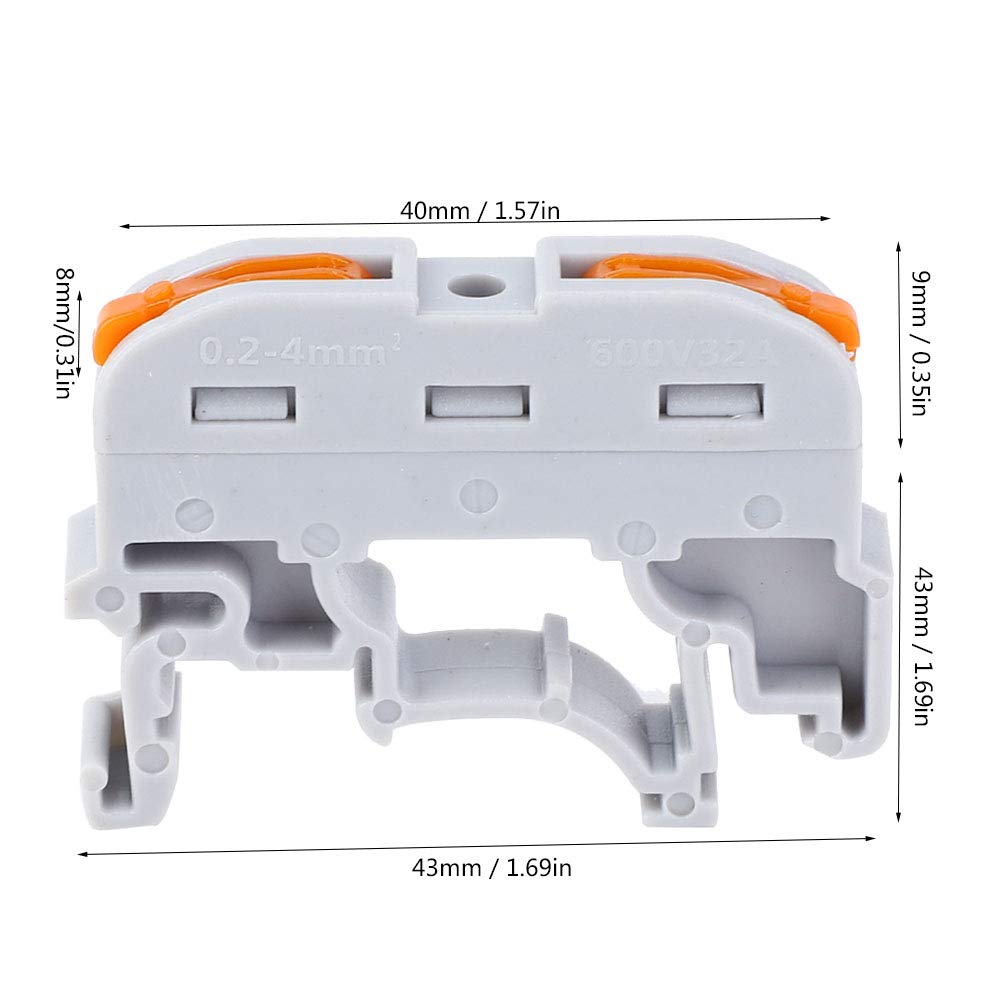

• Size: 47.4mmx8mmx31mm

Package Includes:

• 1 x PCT-211 Quick Connection Terminal
