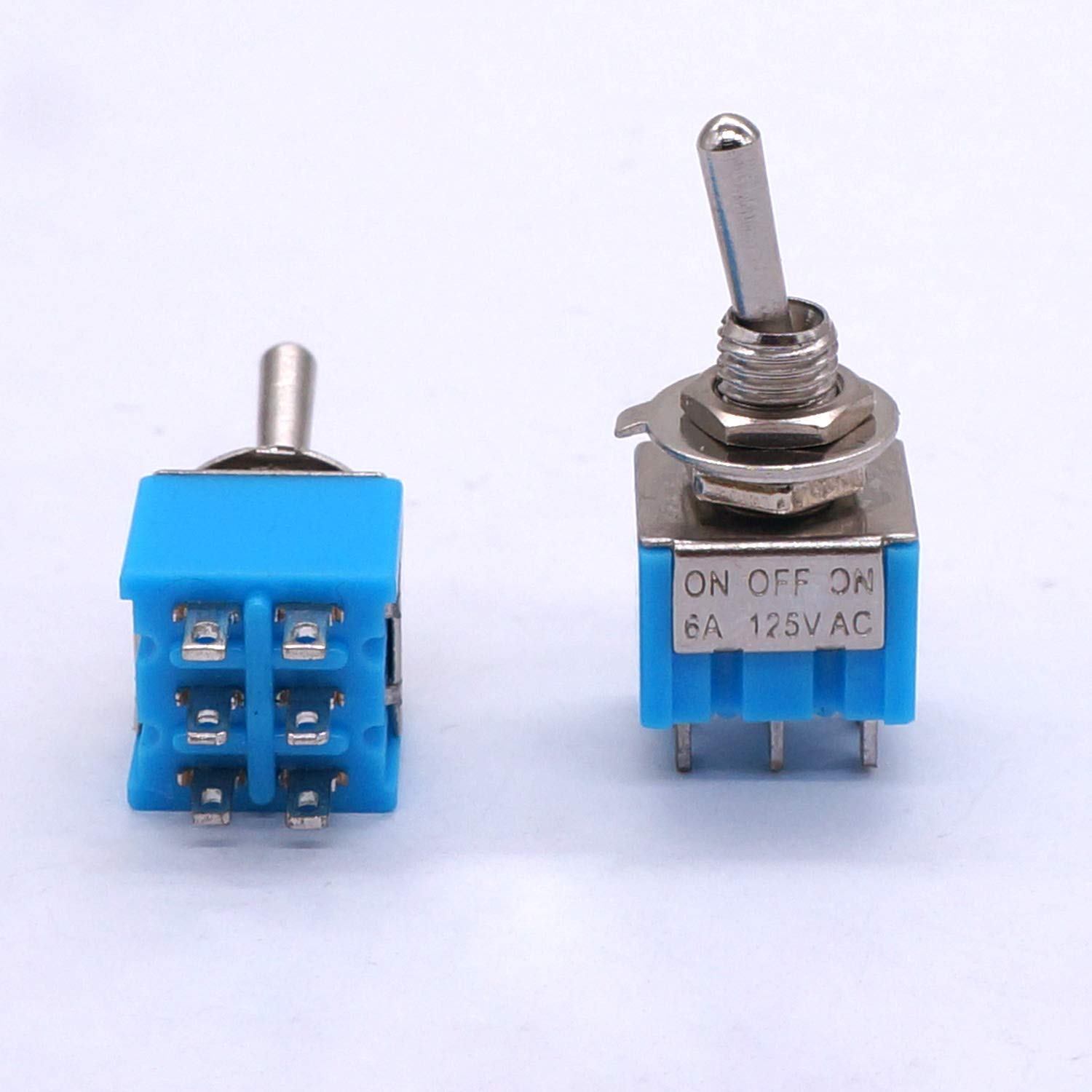

It is a Mini MTS-203 6-Pin DPDT 6A 125VAC Toggle Switch. The switch is Double Pole Double Throw with 6 pins.
Features:
- Easy to install.
- Durable in use.
- It can be used on low voltage or high voltage circuits.
- Ideal for switching lights or motors.
Specifications:
Rated Voltage(V) |
|
Rated Current(A) |
6 |
Contact Resistance |
20MΩ (Max) |
Insulation Resistance (MΩ) |
1000 |
Operating Temperature Range (°C) |
-25 to 85 |
Life Cycle |
10000 |
Switch Type |
DPDT |
Length (mm) |
13 |
Width (mm) |
13 |
Height (mm) |
29 |
Weight (gm) |
5 |
Package Includes:
- 1 x Mini MTS-203 6-Pin DPDT 6A 125VAC Toggle Switch.
