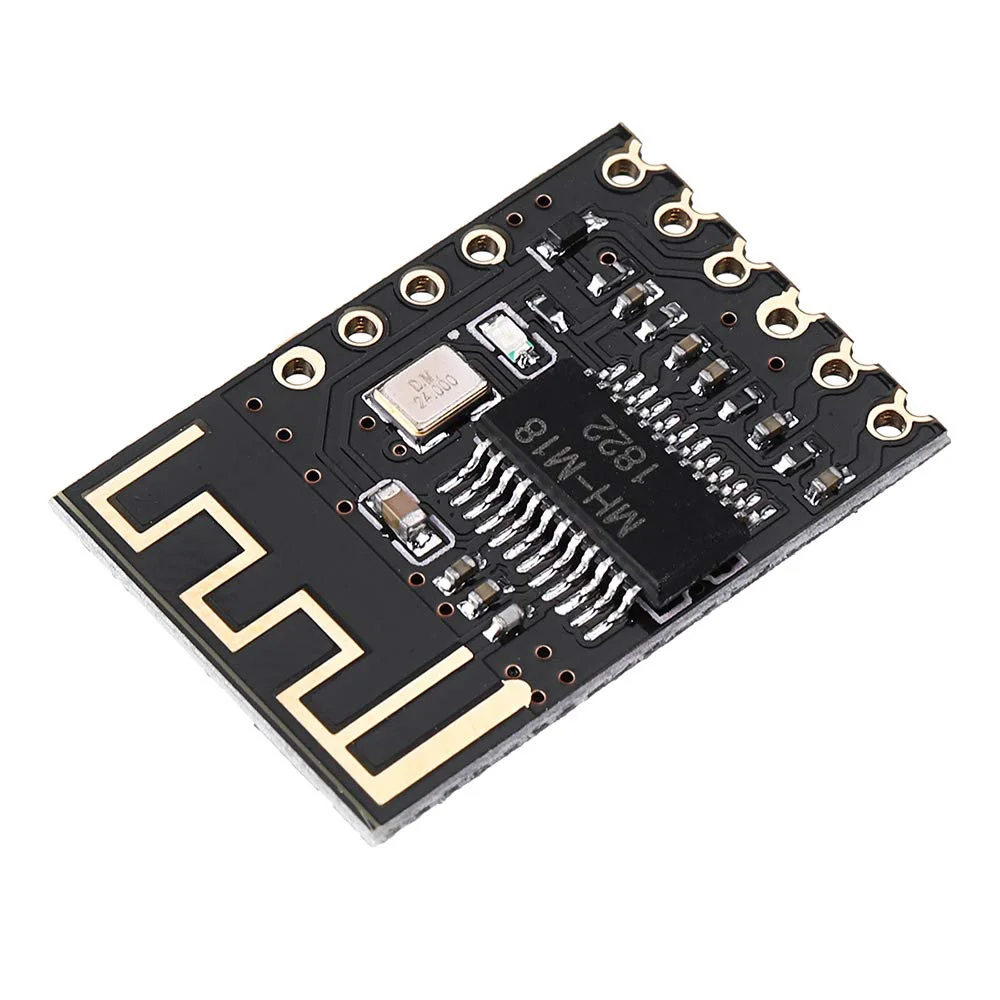

This MH-M18 Wireless Bluetooth Audio Receiver Board BLE 4.2 mp3 lossless decoder is a low power design solution, which supports the latest Bluetooth 4.2 transmission. Convert your old speakers into a Bluetooth equipped speaker with the help of this module. With a maximum range of 20 meters.
Features:
- Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output
- Support Bluetooth Protocol HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
- Maximum Transmission Distance of 20 meters.
- Can be powered via lithium Battery.
Specifications:
Model |
MH-M18 |
Bluetooth Version |
Bluetooth 4.2 |
Operating Voltage (VDC) |
3.7 ~ 5 |
Max. Operating Current (mA) |
20 |
Transmission Distance |
20 meters |
Operating Temperature (°C) |
-40 to 85 |
Sensitivity |
-87dbm |
Length (mm) |
23 |
Width (mm) |
11 |
Height (mm) |
2 |
Weight (gm) |
1 |
Applications:
- Conversion of old speakers into Bluetooth speaker
- DIY Bluetooth speakers
Package Includes:
- 1 x MH-M18 Wireless Bluetooth Audio Receiver Board Module BLE 4.2 mp3 lossless decode
Note:
- This Product is available in two different variant of IC chip (MH-M18 and JL AS208PO1429-25C4) with same working, we will ship it randomly
