MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor

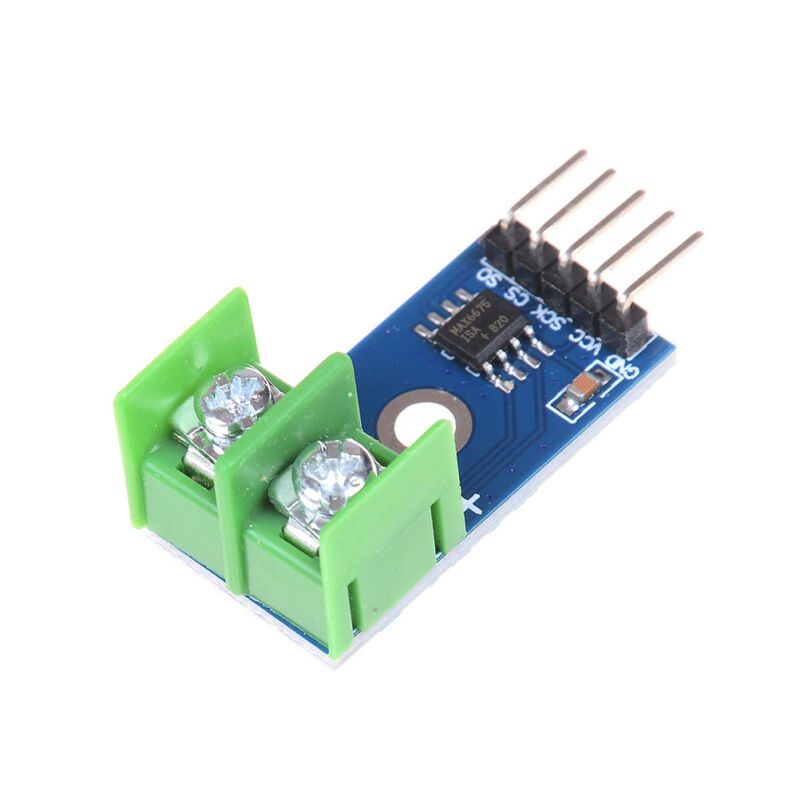

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.

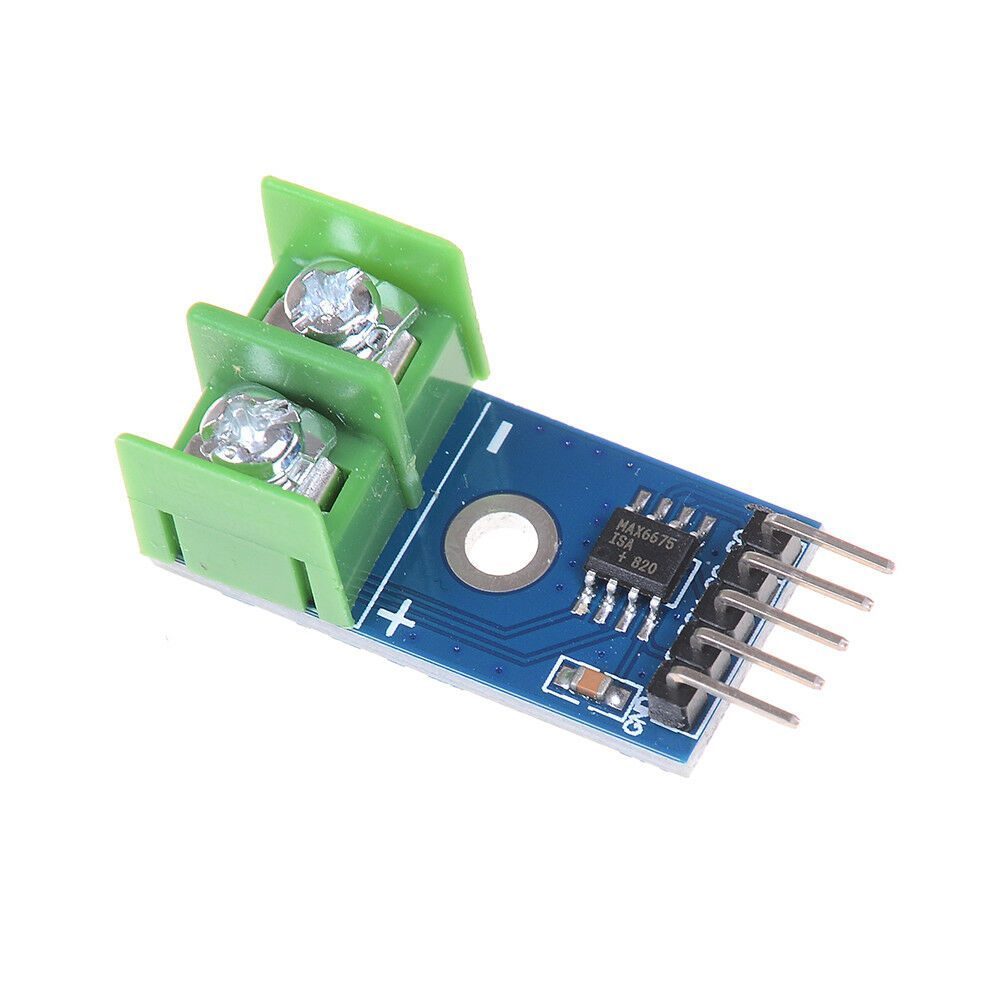

It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C. Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an Arduino development board.

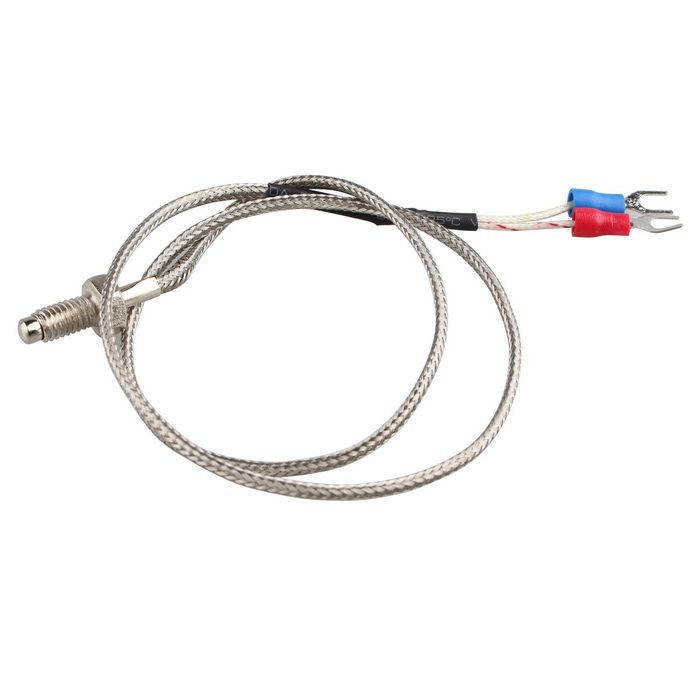

Supplied thermocouple sensor has a diameter of 4.5mm with a 6mm threaded mounting bolt. The total length of the sensor including cable and spade connectors is ~100cm.

Features :

• Internal integrated cold junction compensation circuit;
• Temperature signal can be converted into 12-bit digital
• Embedded thermocouple break detection circuitry.
• K-type temperature probe
• Simple SPI serial output temperature.
• High impedance differential inputs.
• Thermocouple break detection.
• 2000V of ESD signal.

Specifications:

• Model: MAX6675
• Operating Voltage(VDC): 3 to 5.5
• Temperature Range(°C): 0 to +1024
• Cold Junction Compensation Range(°C): -20 to +80
• Resolution: 0.25°C

Connect your Arduino to the Thermocouple Module

• Pretty simple stuff.
• Keep the note about the thermocouple polarity in mind as you make these connections.

Package Includes :

• 1 x MAX6675 Module.
• 1 x K type Thermocouple.
