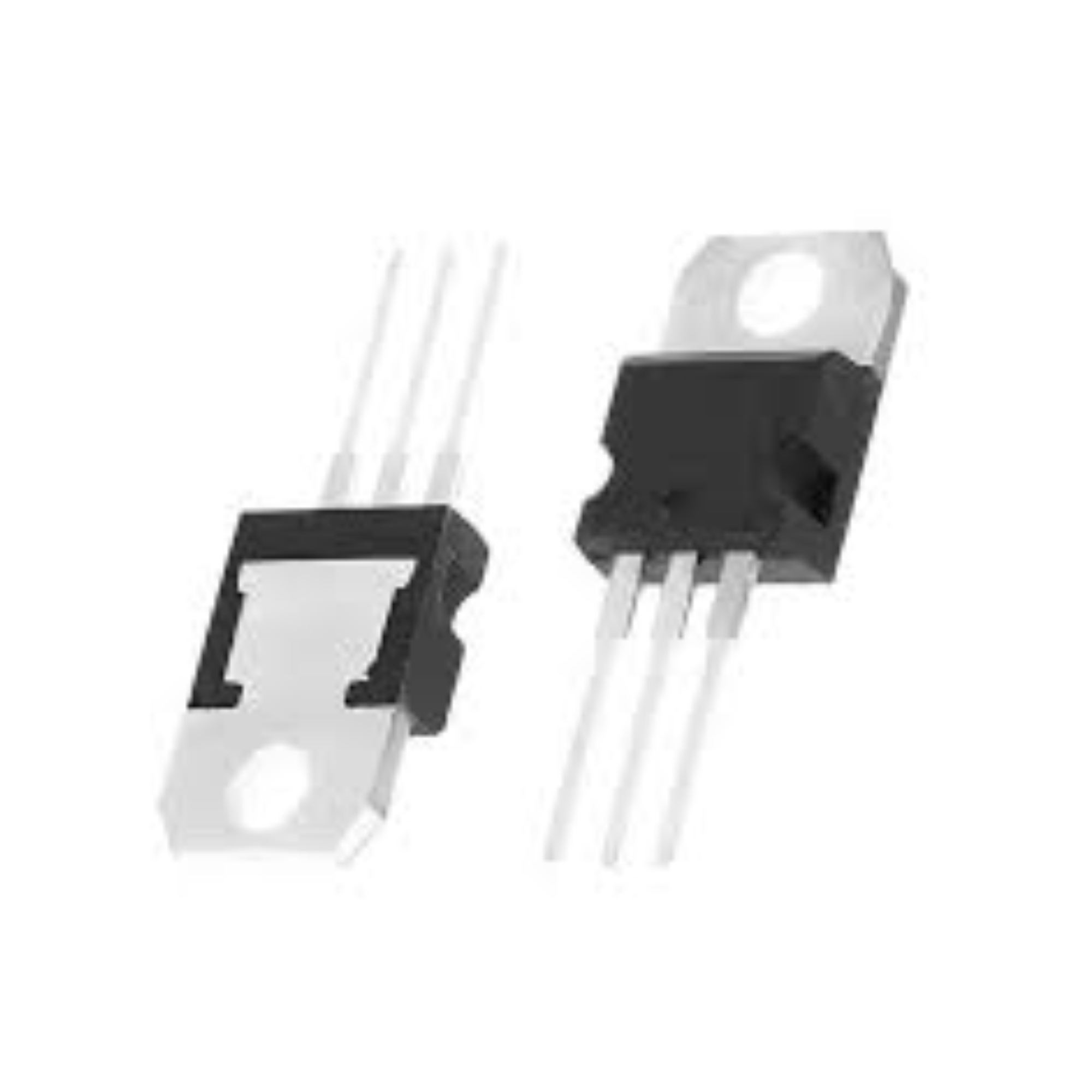

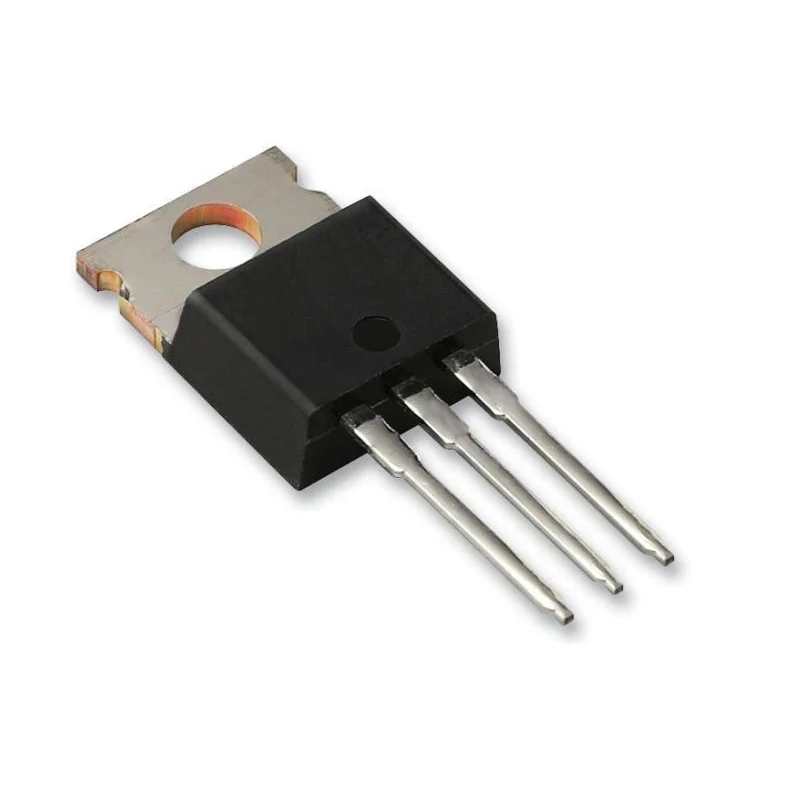

LM7812 12V Linear Voltage Regulator IC

LM7812 12V Linear Voltage Regulator IC is a type of self-contained fixed linear voltage regulator integrated circuit. The IC belongs to ic 78xx voltage regulator family. The 7812 voltage regulator IC is ease-of-use and available in very low cost. The last two digits of 7812 indicates the output voltage that is 12 V.

The ic 7812 is a positive voltage regulator which means that it generates the positive voltage with respect to the common ground. In case if both the positive and negative voltage supply is needed in the same circuit. The voltage regulator ic 7812 is combined with its corresponding 79XX family IC that is 7912 IC.

The LM7812 Voltage regulators do operate at their optimal capability, if the input voltage is at least 2.5 volt greater than the output voltage (i.e 14.5 V min.) and the current is 1 or 1.5 Amperes more. Though the voltage and current difference is different for other IC Packages.

Features:

• Output Current up to 1A
• Output Voltage of 12V
• Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Protection

Specifications:

• Mounting Style: Through Hole
• Product Series: 7812
• No. of Output: 1
• Output Type: Fixed
• Polarity: Positive
• Input Voltage Range: 7V to 35V
• Output Voltage(V): 12
• Output Current(A): 500 mA
• Operating Temperature Range: -20 ~ 120°C
• Load Regulation: 240 mV
• Line Regulation: 100 mV
• Dimensions in mm (LxWxH): 10.4 x 4.6 x 9.15

Applications :

• Constant +12V output regulator to power microcontrollers and sensors in most of the projects
• Adjustable Output Regulator
• Current Limiter for certain applications
• Regulated Dual Supply
• Output Polarity-Reversal-Protection Circuit

Package includes:

• 1 x LM7812 12V Regulator IC
