- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
- Microstep resolutions programmable, from full-step to 102,400 steps/rev(Note1)
- Supply voltage up to 30 VDC
- Output current programmable, from 0.3A to 2.0A( Note)
- Pulse input frequency up to 70 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Over-voltage, over-current, phase-error protection
Note: Microstep and output current programmable feature is reserved and not offered by standard version, because the RS232 connector of standard version is not installed on standard model

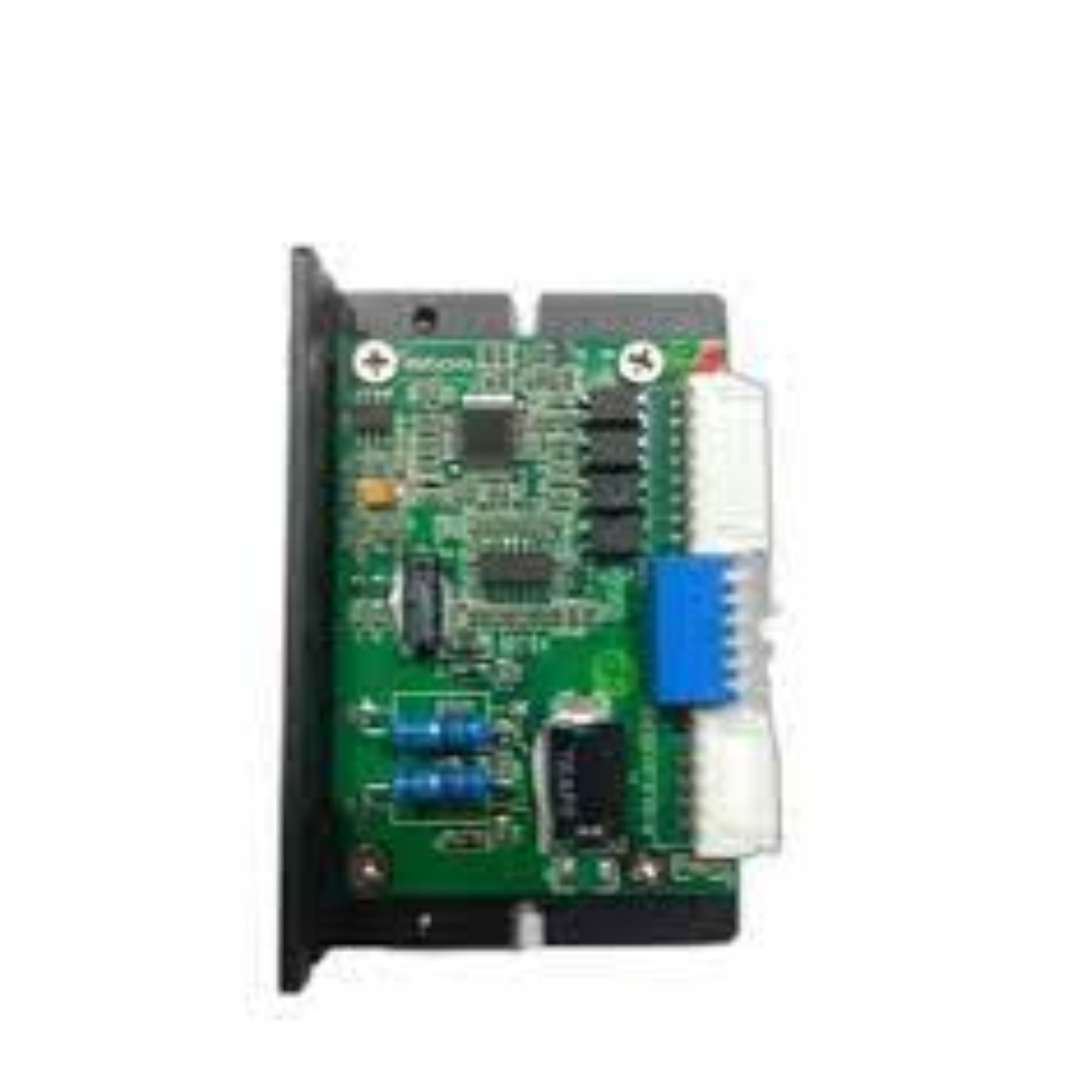

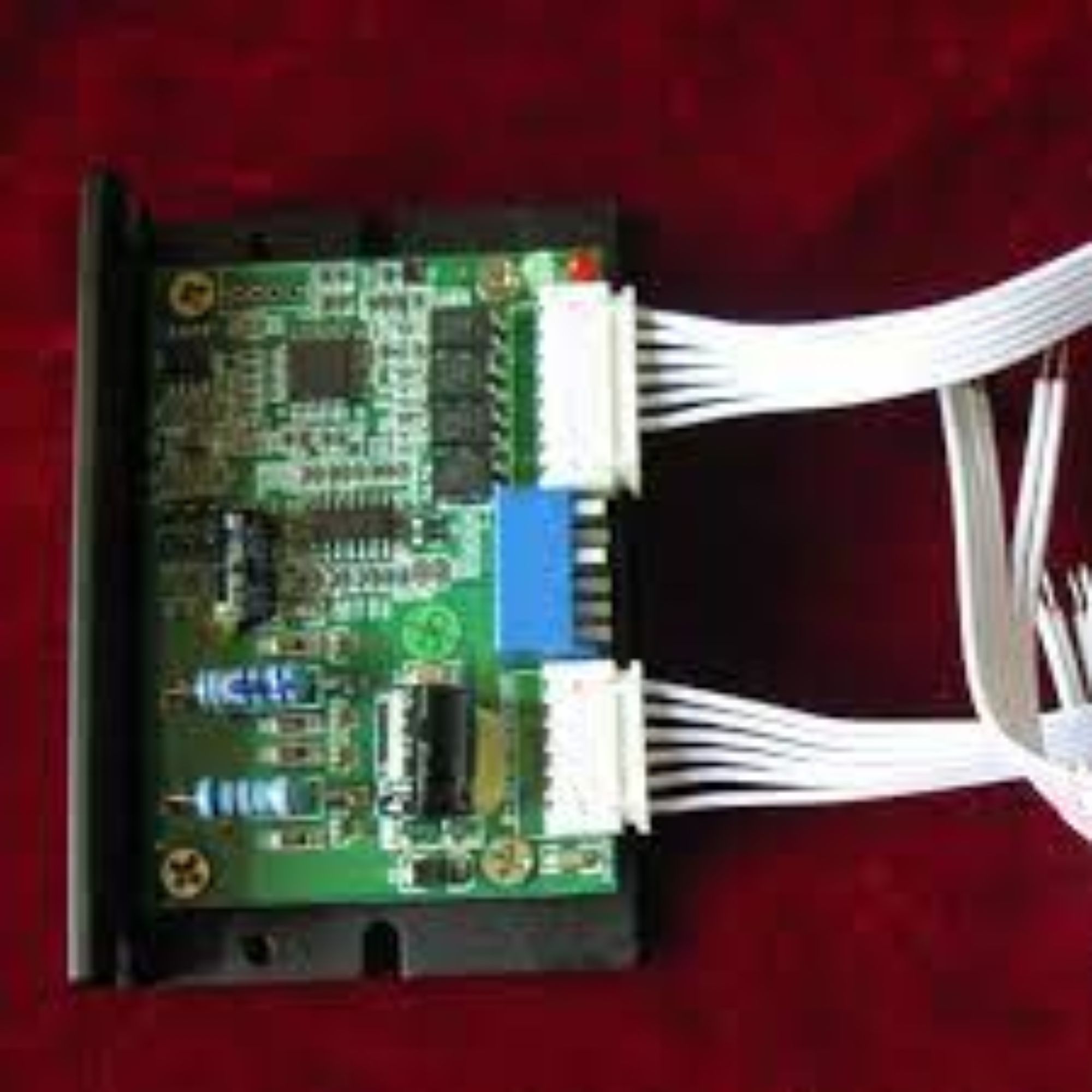

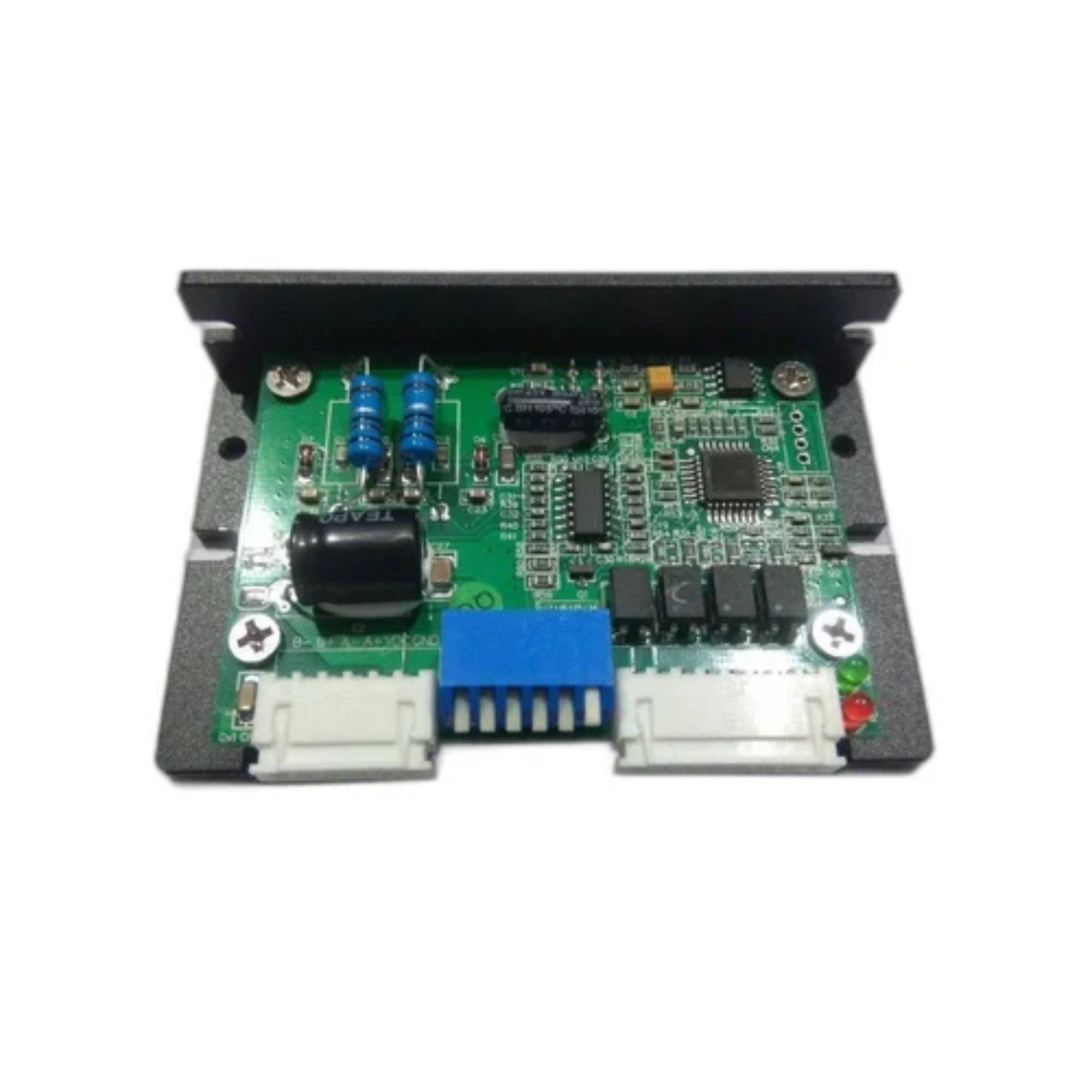

- The DM320C is a versatility fully digital stepping driver based on a DSP with advanced control algorithm.
- The DM320C is the next generation of digital stepping motor controls.
- It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability.
- Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use.
- The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets.
- Its unique features make the DM320C an ideal solution for applications that require low-speed smoothness.
- Compared to the DM422C, the DM320C is more compact and lower cost.
- Suitable for a wide range of stepping motors, from NEMA frame size 14 to 23.
- It can be used in various kinds of machines, such as laser cutters, laser markers, high precision X-Y tables, labelling machines, and so on.
- Its unique features make the DM320C an ideal solution for applications that require low-speed smoothness
